- Page 1 BNI EIP-950-000-Z009 IP67 Module, Unmanaged Switch User’s Guide...
-
Page 2: Table Of Contents
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Notes for the user About this guide Structure of the guide Typographical conventions Symbols Abbreviations Safety Intended use Installation and startup General safety notes Hazardous voltage Getting started Connection overview Mechanical connection Electrical connection... -
Page 3: Notes For The User

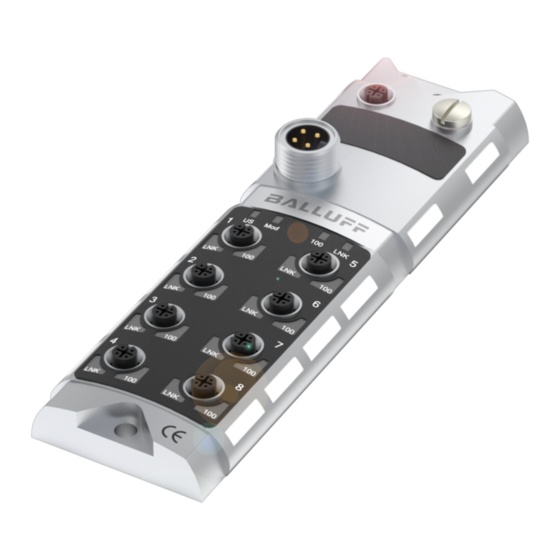

Notes for the user 1.1 About this guide The BNI EIP-950-000-Z009 serves as an unmanaged switch module for connecting to an EtherNet/IP™ network. This module is IP67 protected and features a rugged metal IP67 housing. The device is ideal for use in harsh industrial environments. -
Page 4: Safety
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Safety 2.1 Intended use The BNI EIP-950-000-Z009 serves as an unmanaged switch module for connecting to an EtherNet/IP™ network. 2.2 Installation and Note startup Installation and startup are to be performed only by trained specialists. Qualified personnel are persons who are familiar with the installation and operation of the product, and who fulfills the qualifications required for this activity. -
Page 5: Getting Started
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Getting started 3.1 Connection overview Figure 3-1: Connection overview Mounting hole 10 Ethernet Port 2 Ethernet Port 5 11 Ethernet Port 1 Status LED, transmission rate 12 Label Ethernet Port 6 13 Power supply... -
Page 6: Mechanical Connection
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Getting started 3.2 Mechanical The module is attached by using 2 M6 screws and 2 spacers. connection Isolation pad as accessory available. 3.3 Electrical connection Supply voltage Power (7/8 Mini 4-pin plug) Signal... -
Page 7: Technical Data
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Technical data 4.1 Dimensions Figure 4-1: Dimensions 4.2 Mechanical data Housing material Die-cast zinc, matte nickel plated Enclosure rating per IEC 60529 IP 67 (only when plugged-in and threaded-in) 7/8” 4-pin male Supply voltage Dimensions (W x H x D in mm) 68 x 224 x 32.4... -
Page 8: Ethernet Port
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Technical data 4.5 Ethernet port Ethernet IP Uplink port 1 x 10Base-/100Base-Tx Connection for Ethernet IP Uplink port M12, D coded Standard Ethernet IP ports 8 x 10Base-/100Base-Tx Connection for standard Ethernet ports M12, D coded Cable types per IEEE 802.3... -
Page 9: Appendix
BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Appendix Product ordering code BNI EIP-950-000-Z009 Balluff Network Interface IO-Link interface Functions 950 = IP 67 module, unmanaged switch Variant 000 = Standard version Mechanical version Z009 = Material: Die-cast zinc housing Uplink: 1 x M12x1 internal thread Power: 7/8“... - Page 10 BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Notes www.balluff.com...
- Page 11 BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ Notes www.balluff.com...
- Page 12 BNI EIP-950-000-Z009 Balluff Network Interface / EtherNet/IP™ www.balluff.com Balluff GmbH Schurwaldstrasse 9 73765 Neuhausen a.d.F. Germany Tel. +49 7158 173-0 Fax +49 7158 5010 balluff@balluff.de www.balluff.com www.balluff.com...
