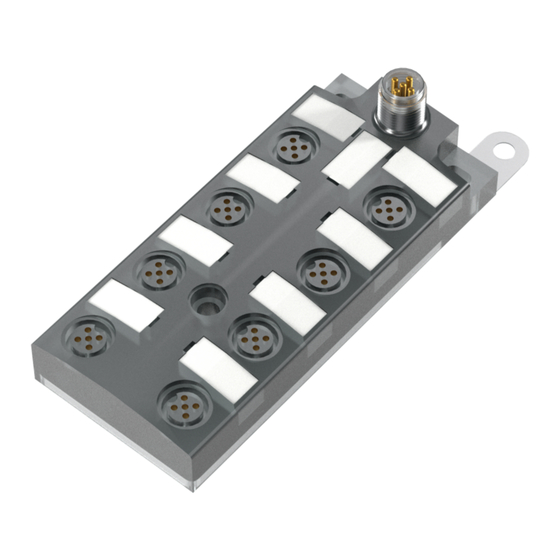

- Page 1 BNI IOL-302-000-K006 BNI IOL-302-000-K006-C01 BNI IOL-302-S01-K006 BNI IOL-302-S01-K006-C01 IO-Link 1.1 Sensor-Hub / Actuator-Hub User’s Guide...
-
Page 2: Table Of Contents
Actuator short Actuator warning Us>Ua Warning Identification 4.5 Errors 4.6 Events Technical Data 5.1 Dimensions 5.2 Mechanical data 5.3 Electrical data 5.4 Operating conditions 5.5 Function indicators Module LEDs Digital Input LEDs Appendix 6.1 Type designation code 6.2 Order information www.balluff.com... -
Page 3: Notes To The User
IO-Link Sensor-Hub / Actuator Hub Notes to the user 1.1 About this guide This guide describes the Balluff IO-Link sensor collector module, also called the Sensor Hub / Actor Hub. Connection to the host interface master is made through the IO-Link protocol. -
Page 4: Safety
The pictogram used with the word "Caution" warns of a possible hazardous situation affecting the health of persons or equipment damage. Ignoring these warnings can result in injury or equipment damage. Always observe the described measures for preventing this danger. www.balluff.com... -
Page 5: Getting Started
5 Status-LED: Digital I/O Port 5 (pin 2) 13 Digital I/O Port 0 6 Digital I/O Port 5 14 Label 7 Status-LED: Digital I/O Port 5 (pin 4) 15 Status-LED IO-Link 8 Digital I/O Port 7 16 Status LED actor power supply 17 Function ground connection www.balluff.com... -
Page 6: Mechanical Connection
IO-Link (M12, A-coded, male) Function Supply voltage Us, +24 V, max. 1.3 A Actor power supply Ua, +24V, max 1.6A GND, reference potential C/Q, IO-Link data transmission channel Note! Us should be maximum 0.5 V higher than Ua www.balluff.com... -
Page 7: Sensor Hub Connection
Note! A standard sensor cable is used for connecting to the host IO-Link Master. Module versions Sensor Hub Version Digital Port BNI IOL-302-000-K006 16 Inputs / Outputs configurable 16 Inputs / Outputs configurable, with BNI IOL-302-S01-K006 single channel monitoring 16 Inputs / Outputs configurable, with... -
Page 8: Io-Link Interface
IO-Link Interface 4.1 IO-Link Data BNI IOL-302-000-K006 Baudrate COM2 (38,4 kBaud) Frame type Minimum cycle time 3.5 ms Process data length 2 byte input, 2 byte output BNI IOL-302-S01-K006 Baudrate COM2 (38,4 kBaud) Frame type Minimum cycle time 5 ms... - Page 9 IO-Link Sensor-Hub / Actuator Hub IO-Link Interface BNI IOL-302-S01-K006 Process data length 8 Byte: Byte Byte Byte Byte www.balluff.com...
- Page 10 IO-Link Interface BNI IOL-302-000-K006-C01 Process data length 4 Byte: Byte Byte Identification byte 0 Identification byte 1 www.balluff.com...
- Page 11 IO-Link Sensor-Hub / Actuator Hub IO-Link Interface BNI IOL-302-S01-K006-C01 Process data length 10 Byte: Byte Byte Byte Byte Byte Identification byte 0 Identification byte 1 www.balluff.com...
-
Page 12: Processdata / Output Data
(302-S01-K006) 05010E (302-S01-K006- C01) Vendor 8 Byte BALLUFF Name Vendor text 16 Byte www.balluff.com Product 20/24 BNI IOL-302-000-K006 Name Byte Product ID 7 Byte BNI005L (302-000-K006) BNI005U (302-000-K006- C01) BNI005T (302-S01-K006) BNI005W (302-S01-K006- C01) Product text 16 Byte IO-Link Sensor/Actor Hub... -
Page 13: Fault State Pin
If the parameter server of the IO-Link master port is activated, this Index will not be assigned during data storage, neither from the IO-Link Device to the master port, nor from the master port to the IO-Link device. www.balluff.com... -
Page 14: Inversion
IO-Link Interface Inversion Inversion of the input signals: Byte Index Inversion Port (x): 0 – Normal 1 - Inverted Port Direction Byte Index Direction Port (x 0 – Input 1 – Output Fault State Pin Byte Index www.balluff.com... -
Page 15: Fault State Pin 2
IO-Link Sensor-Hub / Actuator Hub IO-Link Interface Fault State Pin Byte Index Value Output State Ausgang ist 0V Ausgang ist 24V Aktueller Zustand wird gehalten Nicht definiert www.balluff.com... -
Page 16: Voltage Monitoring
Byte 1 Actuator warning by Signalport at Port x Us>Ua Warning Byte 0 When warning is enabled, and Us > Ua (> = 0.5V), a event will be sent. Identification Byte 0 Byte 1 Identification Byte 0 Identification Byte 1 www.balluff.com... -
Page 17: Errors
Low actuator voltage (UA) 0x5410 Short circuit 0x1800 Us > Ua (> = 0.5V) IO-Link Revision 1.1 Event Code Description 0x5111 Low sensor voltage (US) 0x5112 Low actuator voltage (UA) 0x7710 Short circuit 0x1800 Us > Ua (> = 0.5V) www.balluff.com... -
Page 18: Technical Data
Current draw without load -5 °C … +55 °C 5.4 Operating Operating temperature conditions -25 °C … +70 °C Storage temperature Severity level 3A/3A/4A/2A/3A – EN 61000-4-2/3/4/5/6 Enclosure rating IP67 (only when plugged-in and threaded-in) Vibration/shock EN 60068 Teil 2-6/27 www.balluff.com... -
Page 19: Function Indicators
No Actuator power supply Digital Input LEDs LED 2, Input Pin 4 and LED 1, Input Pin 2 Status Function Yellow Input signal = 1 Sensor power supply short circuit, Actuator short circuit Actuator warning Input- / Output signal = 0 www.balluff.com... -
Page 20: Appendix
Appendix 6.1 Type designation code BNI IOL-302-xxx-K006-C01 Balluff Network Interface IO-Link interface Functions 302 = 16 inputs- / Outputs Version 000 = Standard version S01 = Single channel monitoring Mechanical configuration K006 =Plastic housing, Connectors: - BUS and Power supply: 1x M12x1, external thread... - Page 21 IO-Link Sensor-Hub / Actuator Hub Notes www.balluff.com...
-
