Connecting

OneExpert CATV

Remotely with Android Phone

Recommended program and basic setup instructions for using a VNC

client on an Android phone to access a OneExpert CATV

An android compatible VNC program is recommended for connecting an ONX to an

android phone for remote control. This enables OneExpert CATV remote access and

control.

There are multiple applications available, but we've found that bVNC provides the smoothest user

experience.

Application Note

Table of Contents

Need help?

Do you have a question about the OneExpert CATV and is the answer not in the manual?

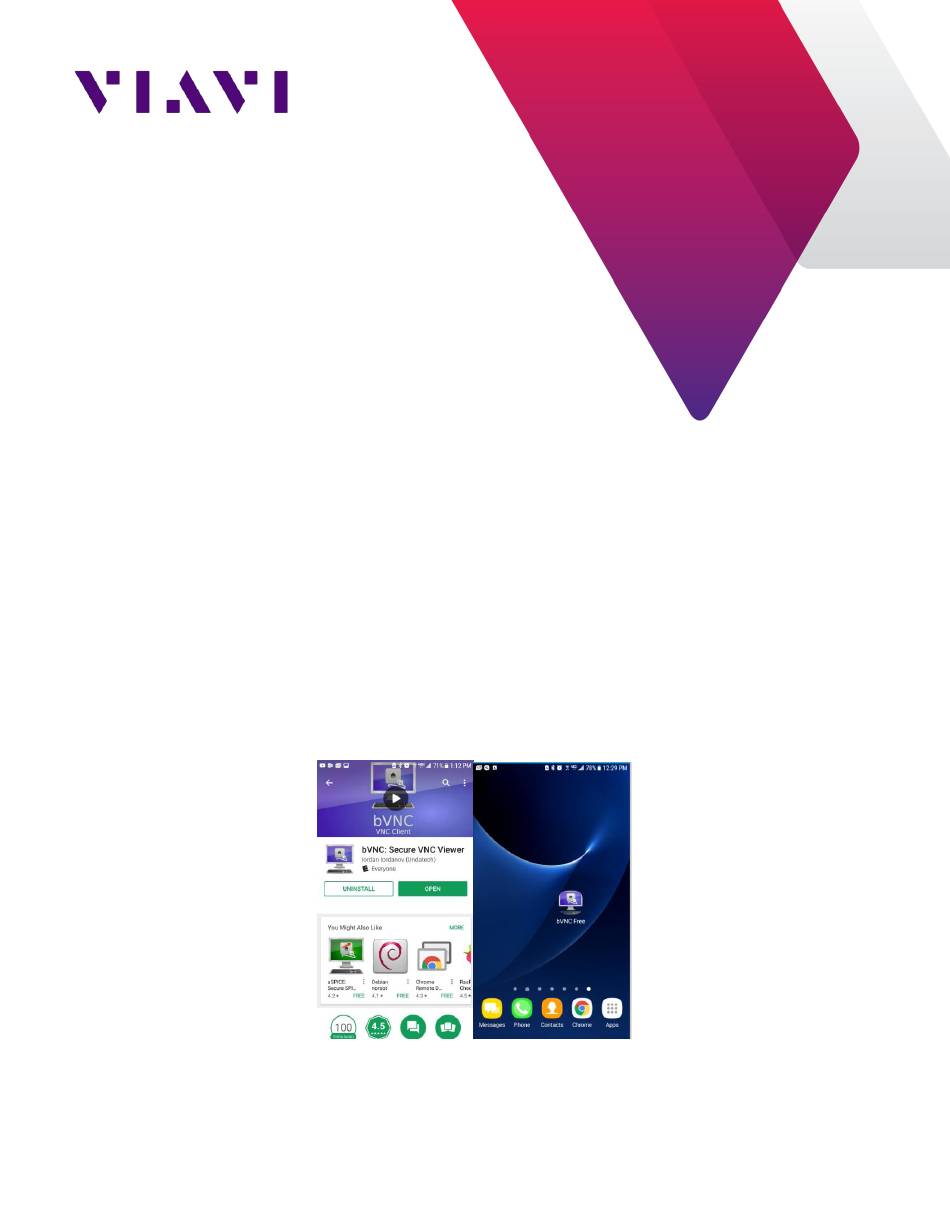

Page 1 Android phone to access a OneExpert CATV An android compatible VNC program is recommended for connecting an ONX to an android phone for remote control. This enables OneExpert CATV remote access and control. There are multiple applications available, but we’ve found that bVNC provides the smoothest user experience.
Page 2 Make sure that “Enable VNC Server” is checked. Also note the VNC Password needed to set up the VNC connection. The default password is viavi-vnc but this can be changed by the user if desired. Set up Phone as a WiFi Hotspot To remote VNC to the ONX from an Android Phone, both the ONX and the Phone must be connected to the same network.
Page 3 Android VNC program. You can find the OneExpert WiFI connection setup in the Network application. After establishing a WiFi connection on the ONX to the Mobile Device you are ready to connect via VNC 3 Connecting to a OneExpert CATV Remotely with an Android Phone...
Page 4 After Launching bVNC the connection must be set up. Enter the IP address of the ONX and the VNC password. To optimize for best viewing turn on the Show Advanced Settings. Setting for Full Screen Bitmap works well. 4 Connecting to a OneExpert CATV Remotely with an Android Phone...
Page 5 Click this area to open up some control keys. The Arrow keys are recommended for navigating up and down the ONX menus. The ESC key works like the ONX back button. 5 Connecting to a OneExpert CATV Remotely with an Android Phone...
