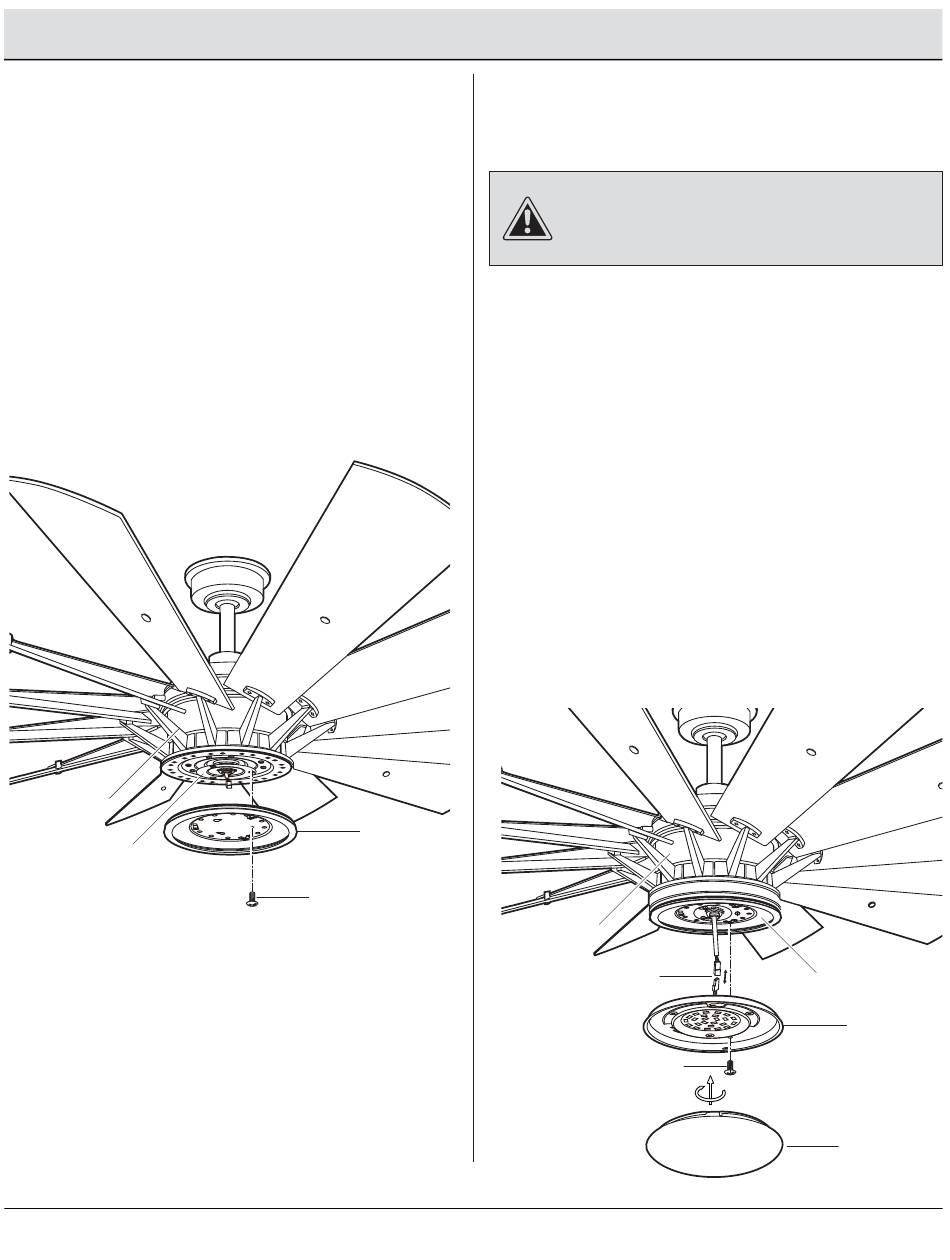

Assembly — Installing the Light Kit
Attaching the light kit mounting
11
plate to the mounting ring
□
Remove one of the three light kit mounting plate
screws (OO) from the mounting ring (XX) and loosen
the other two screws. (Do not remove.)
□
Place the key holes in the light kit mounting plate (J)
over the two screws (OO) previously loosened from
the mounting ring (XX). Turn the light kit mounting
plate (J) until the light kit mounting plate (J) locks in
place at the narrow section of the key holes.
□
Securely tighten the two light kit mounting plate
screws (OO) previously loosened and the one (OO)
previously removed.
F
XX
12
J
OO
14
Attaching the LED light kit
and glass shade
CAUTION:
Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□
Remove one of the three light kit mounting screws
(PP) from the light kit mounting plate (J) and loosen
the other two screws (PP). (Do not remove.)
□
While holding the 18W LED light kit (K) under the fan
motor assembly (F), make the 2-pin wire connections
(YY) :
- Red to white
- Black to black
□
Place the key holes in the LED light kit (K) over the
two mounting screws (PP) previously loosened from
the light kit mounting plate (J). Turn the LED light kit
(K) until the LED light kit (K) locks in place at the
narrow section of the key holes. Secure by tightening
the two light kit mounting screws (PP) previously
loosened and the one (PP) previously removed.
□
Raise the glass shade (L) up against the LED light kit
(K) and secure it to the fan by turning the glass shade
(L) clockwise until snug. DO NOT OVERTIGHTEN.
F
YY
PP
J
K
