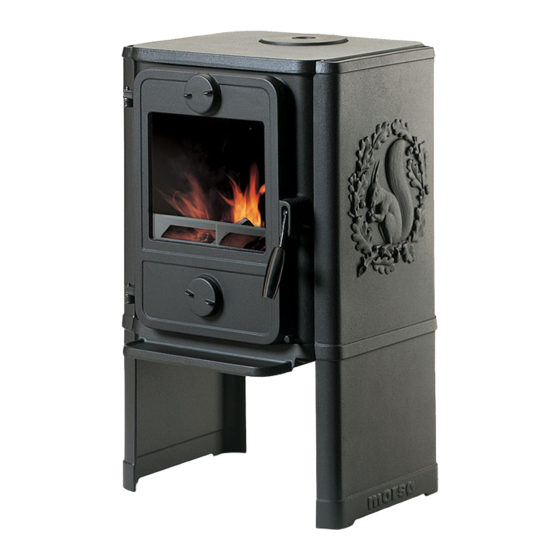

Morsø 1410 Installation And Operating Instructions Manual

For use in australia
Hide thumbs Also See for 1410:
Table of Contents

Advertisement

Quick Links

Download this manual

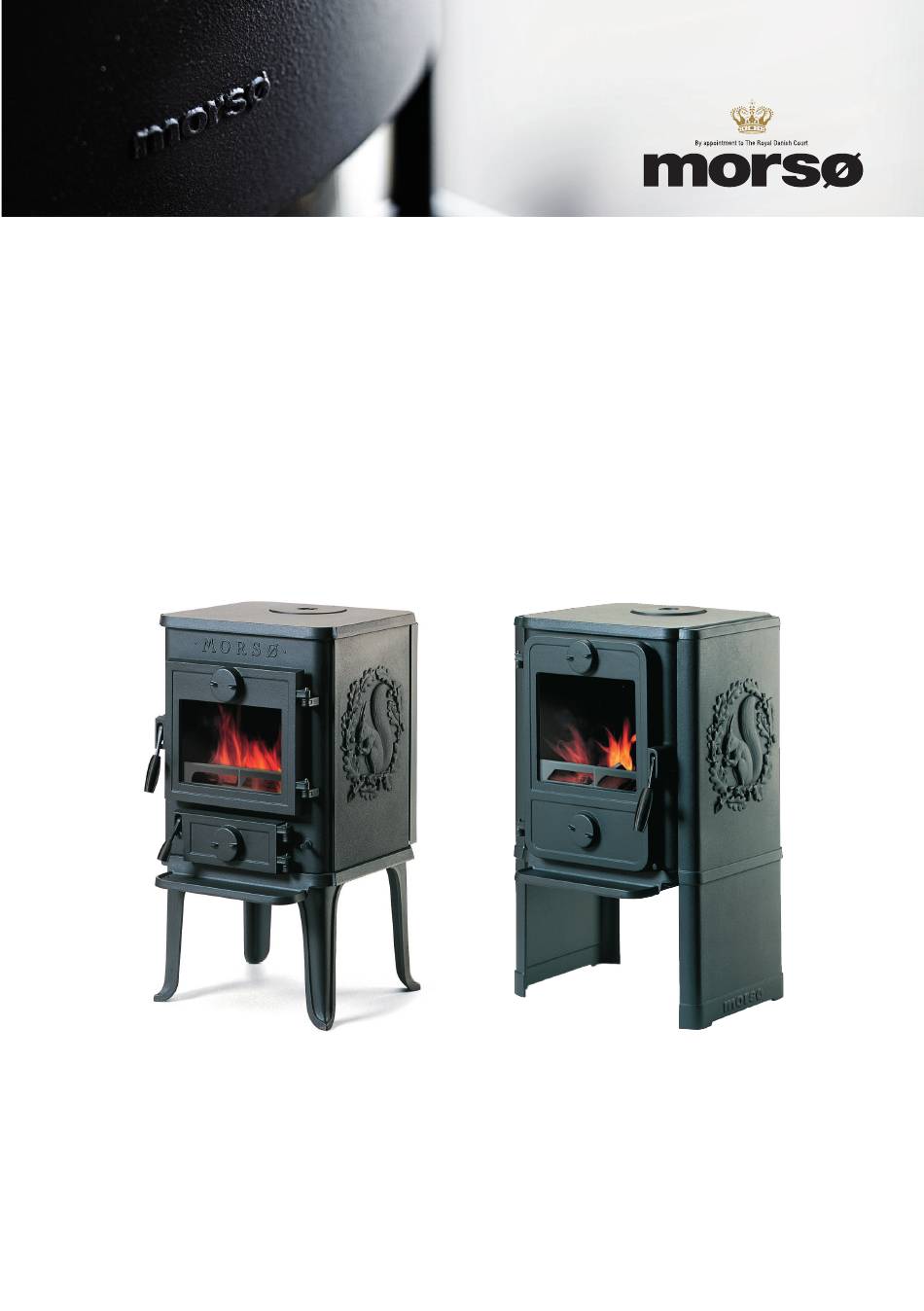

Installation and operating instructions
Morsø 1410 & 1440
For use in Australia
Distributed by: Castworks · 57 Industrial Drive, Braeside, Victoria 3195 ·
Australia +61 3 95881169
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: info@morsoe.com · Website: www.morsoe.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1410 and is the answer not in the manual?

Questions and answers

Related Manuals for Morsø 1410

Summary of Contents for Morsø 1410

  • Page 1 Installation and operating instructions Morsø 1410 & 1440 For use in Australia Distributed by: Castworks · 57 Industrial Drive, Braeside, Victoria 3195 · Australia +61 3 95881169 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: info@morsoe.com · Website: www.morsoe.com...

  • Page 2: Table Of Contents

    Congratulations on the purchase of your new Morsø stove! Morsø, which is the largest supplier for the Dan- ish market, has manufactured stoves of the highest quality since1853. By following the instructions over- leaf, we are sure that you will enjoy the use and the benefits of your stove for many years to come.

  • Page 3: Assembling Your Morsø Stove

    1.0 Assembling your Morsø stove Installation clearances and floor protector (hearth) requirements: Refer to attached as 2918:2001 conformance certificate. Fuel type: Refer to compliance label – disregard any contradictory fuel type information in instruction manual Warning: The appliance & flue system shall be installed in accordance with as/nzs 2918:2001 and the appropriate requirements of the relevant building code or codes.

  • Page 4: Chimney Sweep

    Minimum distances from flammable material: Type of stove Behind the stove (A) To the sides of the stove (B) To furniture Morsø 1410 150 mm 600 mm 850 mm Morsø 1440 150 mm...

  • Page 5: The Chimney

    Hearth Requirements Please refer to Building Regulations regarding thickness and area of the hearth required. Clearances to Furniture The clearance to any furniture should be minimum of 80 cm, however, it is also necessary to as- sess whether the furniture or anything else close by will be effected by the warmth i.e. dried out. The distance to any combustible material in front of the stove is minimum 60cm.

  • Page 6: Lighting Technique

    2.0 Lighting technique Your stove is built with up to three separate combustion air inlets; • A primary air supply where the air is passes through the grate system. This is operated either via the left handle under the ashlip or by controlling an ‘air spinner’ located on the stove door.

  • Page 7: Other Types Of Fuel

    1. An ember layer is quickly established by using 2-4 firelighters or 7-10 crumpled-up pages of newspaper lit beneath approximately 1-2 kg dry kindling sticks. 2. You should completely open the primary & secondary air intakes. 3. After the paper/firelighters have ignited, the door should be kept ajar. To provide sufficient chimney draught quickly an opening of approximately 2 cm is probably required.

  • Page 8: Maintenance Of Stove, Pipe And Chimney

    3.0 Maintenance of stove, pipe and chimney In time the paint surface of the stove may become grey. This is usually attributed to the stove being run ‘too hot’; but the stove may be freshened up. Morsø stoves are painted using a Morsø Original Black (previously called Morsø dark grey) or Morsø...

  • Page 9: Cleaning The Stove

    Reasons for overly rapid wear of internal parts - Stove fired too vigorously. - Too much air coming through the bottom grate. - Use of very dry wood (wood from old furniture). - Too much soot on top of the baffles (please see the section on Cleaning). - Too much ash in the ash pan (please see the section on Ash).
  • Page 10 Spare parts for the 1410 & 1440 Description Riddling grate Base/grate frame Smoke ducting plate cast iron Cleaning valve with smoke ducting plate Smoke ducting plate rust free Glass Side brick front Side brick back Back brick Brick securing bracket...
  • Page 11 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø stove is more than 160 years of dedicated stove design and manufacturing experi- ence. Quality control has always been at the heart of the production process and detailed measures have been put into place at all key stages of the build.
  • Page 16 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 8 - 12 cm thick. • Light Light with dry kindling (use 1 - 2 kg). Leave the door ajar and stay close to the stove during the lighting phase.
