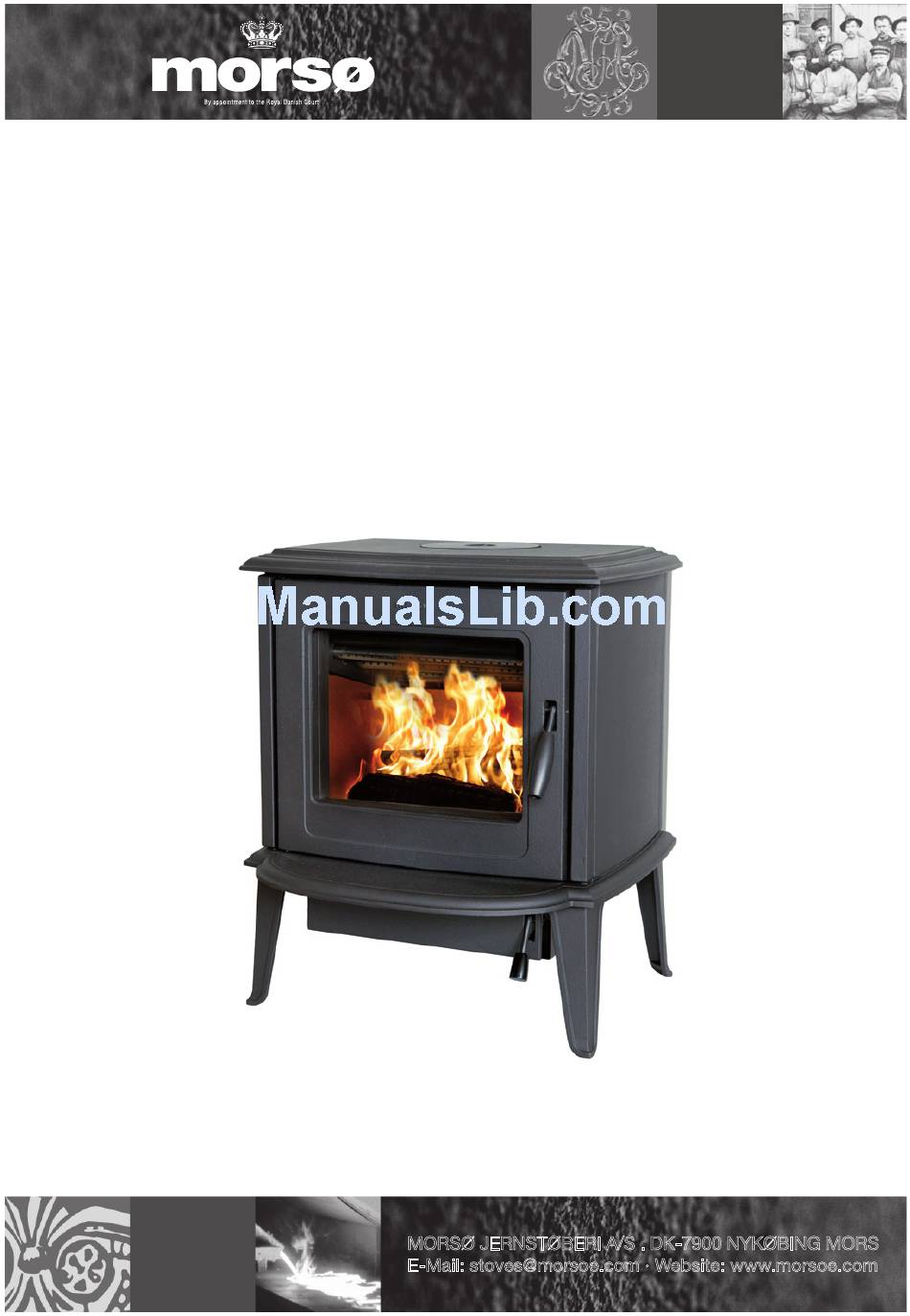

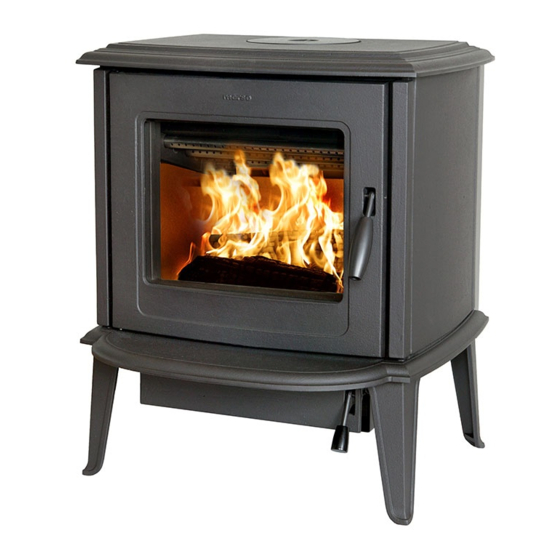

- Page 1 Instructions for Installation and Use 7110 & 7140 EN 13240 · (75,5% Efficiency) MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
-
Page 2: Table Of Contents
Enjoy your new Morsø stove! Morsø, the largest stove manufacturer in Denmark, has been making cast-iron stoves of the highest qual- ity since 1853. By carefully following the instructions below, we are certain that you will enjoy many years of comfortable warmth from your new Morsø... -
Page 3: Installing Your Morsø Stove Page
1.0 Installing your Morsø stove 1.1 Unpacking the stove First remove the outer carton and lay flat next to the stove; this can act as a protective work- ing surface during the assembly procedure. For shipping purposes, the stove is bolted to the wooded pallet; it should be released from the pallet by removing the bolts from the underside. - Page 4 Minimum clearances to combustible surfaces: Stove type Behind the To the sides Above the Stove Clearances to stove (A) of the stove (B) furniture furniture Morsø 70 300 mm 500 mm 500 mm 000 mm uninsulated flue Morsø 70 50 mm 500 mm 500 mm 000 mm...
-
Page 5: The Chimney
1.5 The chimney Only if National or Local Regulations permit are you permitted to connect a stove into a chim- ney that is shared by another appliance. YOU MUST be aware of any applicable Regulations in this respect. The wood-burning stove must never been connected to a chimney to which a gas-burning stove or appliance is connected. -
Page 6: Connecting To A Masonry Chimney
How to position the baffle plates The upper baffle (3) made of vermiculite are fitted in the stove on delivery. The cast iron baffles () are positioned correctly above stainless steel pipes that provide the sec- ondary air supply to the combustion (see drawing). The Insulation blanket () is carefully positioned above the cast iron baffles. -
Page 7: Fresh Air Supply
Fresh air supply A wood-burning stove requires air for combustion and therefore you may need to install additional ventilation to the room, especially so in well insulated hous- es. If the air supply is inadequate the chimney draft may be too weak, with the possible result that the stove will not burn properly;... -
Page 8: Firing The Stove
2.0 Firing the stove/Using your stove The heat output of your stove is regulated by means of air inlets. The pre-heated primary air supply that with great speed is supplied to the fire across the glass window and controlled by the lever under the ash lip. - Page 9 2.1 Lighting and refuelling intervals Kindling (dry sticks) requires a large volume of air for quick combustion. When lighting the stove from cold it will help to keep the main door ajar (-3cms) for the first few minutes. The primary air supply should be fully open during lighting. When only burning wood it is recommended that a cm deep ash bed be established and maintained on the grate of the stove.
- Page 10 5. Refuelling of your stove should be done while there are still glowing embers in the bed. Spread the embers across the bottom, but concentrated most- ly towards the front of the stove. 6. Place three pieces of fuel weighing roughly 0.7 kg and measuring about 30 cm in length across the embers in one layer, with spacing of roughly cm between the pieces of wood.
- Page 11 The stove door should normally be opened gently the first - 3 centimetres, then you should wait until the pressure has equalised before opening the door all the way. This technique will prevent smoke from getting out, particularly when there is a poor draught. The stove door should never be opened when the stove is being fired vigorously.
-
Page 12: Routine Stove Maintenance
3.0 Routine stove maintenance 3.1 External maintenance The surface of the stove is painted with heat-resistant Senotherm paint. If the stove is used too vigorously, the painted surface may take-on a greyish tinge. It is easily maintained by sim- ply vacuuming the surface with a soft brush attachment and applying two light layers of paint. Morsø... -
Page 13: Cleaning The Stove 3
Gaskets The rope gaskets in the door will need regular inspection in order to ensure and maintain full control of your stove’s burning rate; over time the rope gaskets will harden and will become less airtight; at this point you will need to remove and replace with new. Use only the genuine Morsø... - Page 14 Maintenance parts Description Product Code Cast iron grate 447600 Cast iron baffles 347800 Stainless Steel pipe - long 770900 Stainless Steel pipe - short 77000 Door Glass 7970000 Right Side brick 797000 Left Side brick 7970300 Back brick 797000 Brick securing bar 770600...
- Page 16 Morsø Jernstøberi A/S - 5.0.006 - 77000 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
