ELGO-PLUS SpringerMAX Instructions Manual page 4

A Steering levers
B Rubber track chassis
C Engine
D Rotatable body
E Seat
F Support
G Arm
H Jib (Boom)
I Bucket – changable equipment
J Hydraulic pump
K Overweight (removable equipment)
2.2. Technical data
Engine
Engine power
Battery
Hydraulic pump
Hydraulic tank capacity
Weigh
Rotation
Maximum digging depth
Noise

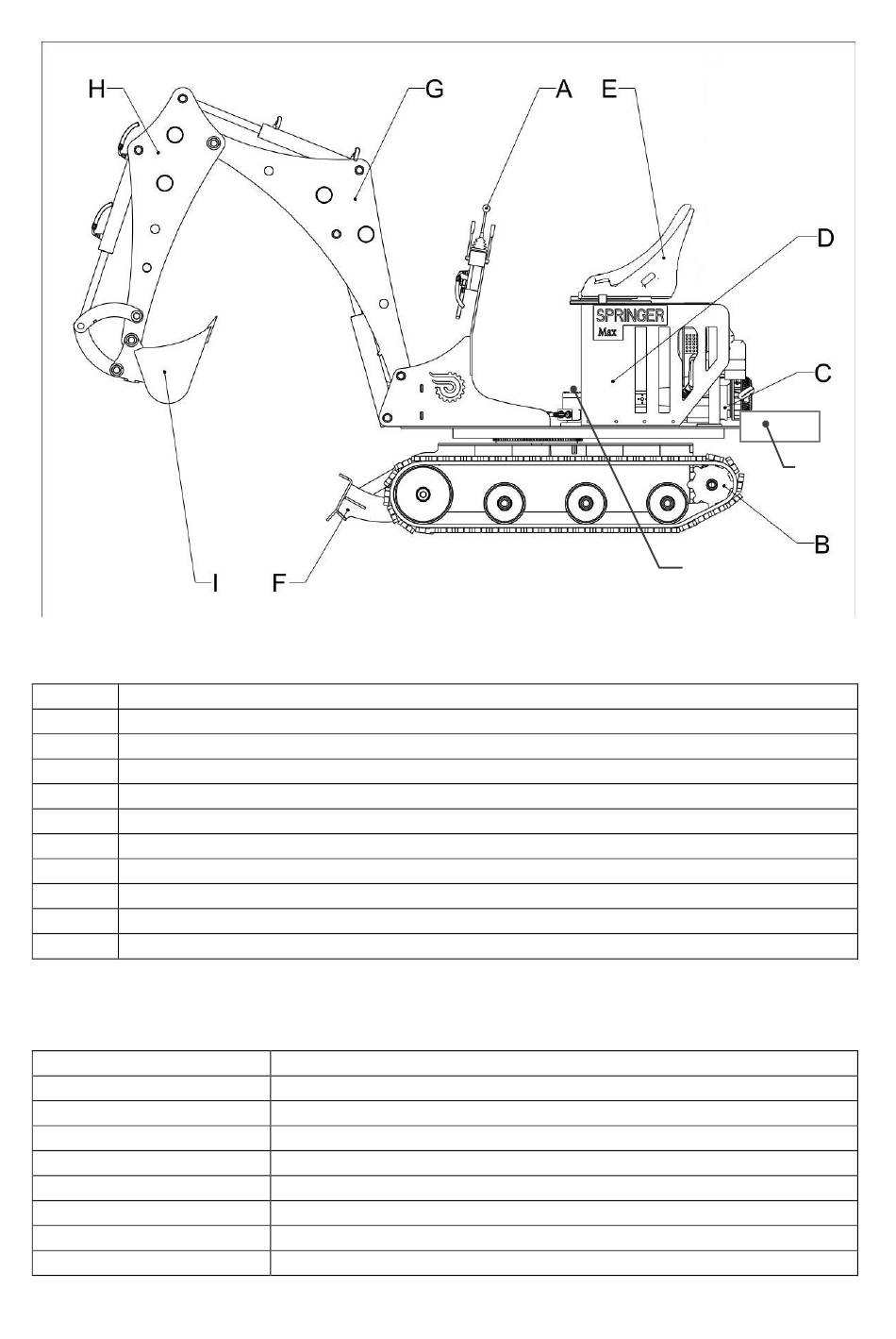

PIC.2.1 General construction
Gasoline Briggs & Stratton Vanguard 10 HP 19L2
10 HP
12 V, 24 Ah with electrolyte
CASAPPA 6,61 cm³/rev
21 L
680 kg (without counterweight)
360˚
1,65 m
No more than 85 dB(A)
3
K
J
