ELGO-PLUS SpringerMAX Instructions Manual page 27

Warning:
Do not use the mini digger when her tracks are too much or too little strained. Doing
so may destroy them. Tracks tension should be checked every time before working
In case of too low tracks tension it is necessary to adjust it by using the adjustment screws on both
sides of the mini digger. To tension rubber tracks, first loosen support screws on sides of bracket (A),
than regulate the tension by regulation screws (B).
A Bracket screws
B Regulation screws
6.7. Brass pins changing
In the case of use of the brass pins, replace them with new ones. Knock out the pins out of
the nest and embed new.
B
B

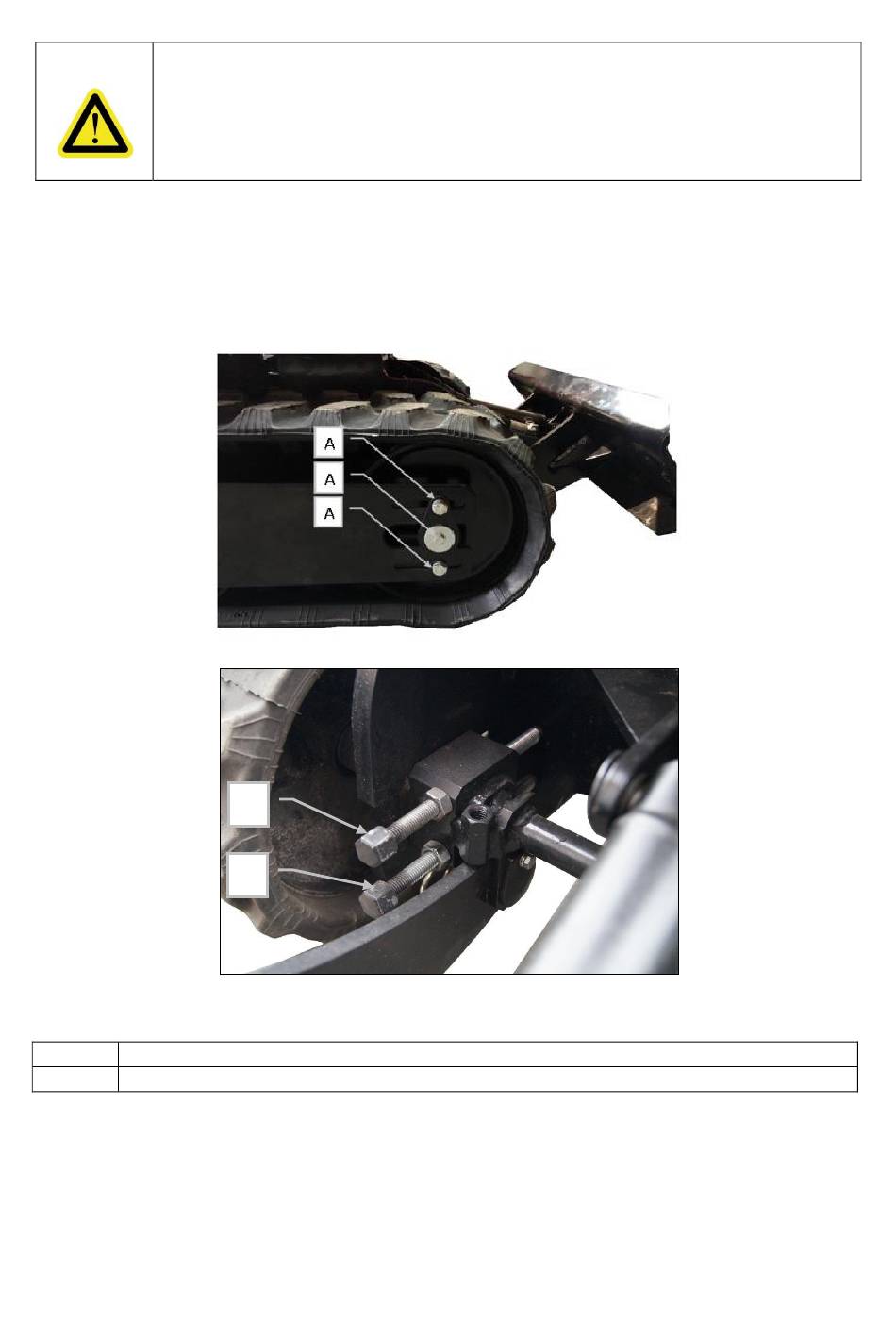

RYS.6.6 TRACKS TENSION REGULATION
26
