Frequency Central Bartos Flur Rev(2) Build Documentation

Frequency central

Bartos flur rev(2)

1K x 21

56K x 1

91K x 1

100K x 6

200K x 1

270K x 2

470K x 1

Build documentation for:

Bill of Materials

100nF poly box x 1

10uF electrolytic x 2

100uF electrolytic x 2

Bartos Flur PIC x 1

TL084 x 1

1n4148 x 1

78L05 x 1

78L09 x 1

3mm red LED x 8

B100K x 2

All pots are 9mm

Alpha

DPDT Toggle on/on x 1

Power header

Male header strip

Female header strip

Kobiconn sockets x 11

Table of Contents

Do you have a question about the Bartos Flur Rev(2) and is the answer not in the manual?

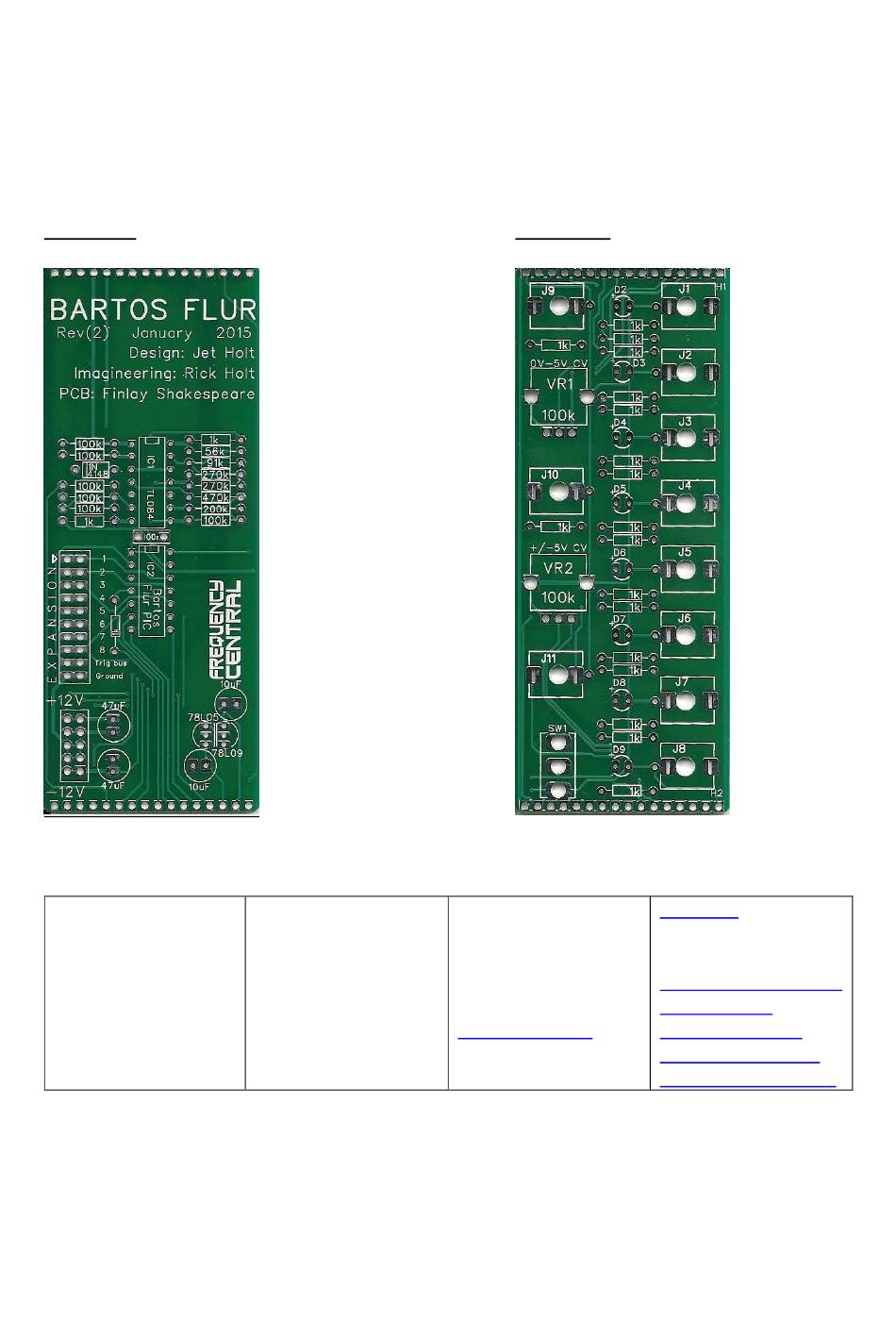

Page 1 Frequency central Build documentation for: Bartos flur rev(2) Main PCB: Panel PCB: Bill of Materials 1K x 21 100nF poly box x 1 Bartos Flur PIC x 1 B100K x 2 56K x 1 10uF electrolytic x 2 TL084 x 1...

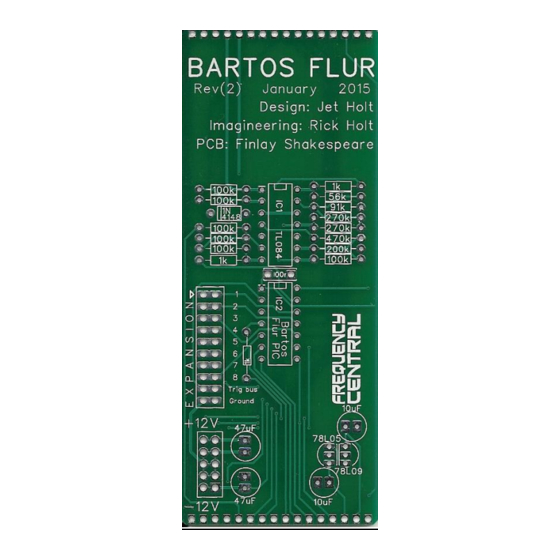

Page 2 Main PCB Populate the Main PCB as shown on the silkscreen, starting with the lowest profile components, so:  Resistors  IC sockets  Non-electrolytic capacitors, voltage regulators  Power header and expansion header  Electrolytic capacitors - there’s an error on the silkscreen, the electrolytic polarities are obscured, see photo: Finally, cut 2 male header strips to the correct lengths (16, 16) and solder to the PCB so that the long legs stick out of the rear of the PCB.
Page 3 Panel PCB Populate the Panel PCB as shown on the silkscreen in this order:  Resistors  Potentiometers (bend back the mounting lugs, then solder the middle lug in place. Reflow and adjust as necessary so that they lie correctly. Solder lugs 1, 3 and the mounting lugs) ...
Page 4 Push the 8 LEDs through their holes, remembering that the long legs go through the holes marked ‘+’. Don’t solder them in place yet! Mount the panel PCB onto the panel, tighten up all the nuts – it’s worth checking that the LEDs will fit smoothly through the holes before doing this, as some can be a little tight –...
