Frequency Central Stasis Leak Build Documentation

Chorus/tap delay/plate reverb
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Frequency central

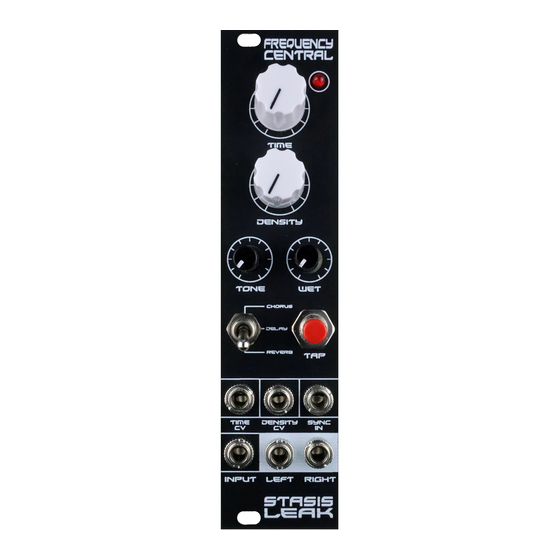

Stasis Leak is a 6HP 48kHz DSP effects module, providing a choice of stereo chorus, stereo plate
reverb and tap tempo delay. Stasis Leak is based around a Belton ABE-FX sub board, which in turn is
based around a Coolaudio V1000 chip.
Dry lift jumper for if you want to use Stasis Leak in an effects loop.

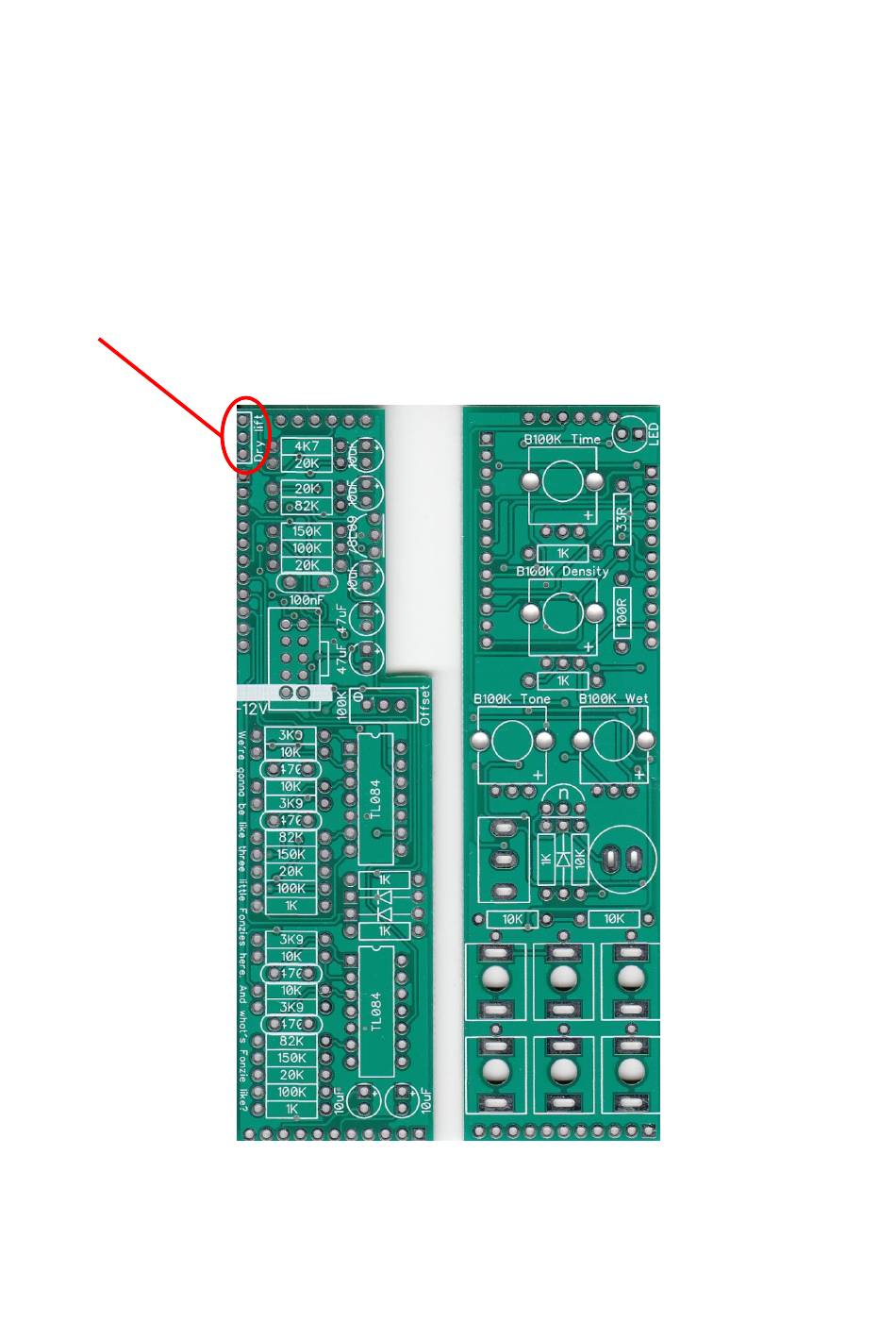

Stasis Leak features 3 PCBs:
•
Main PCB
•
Pots 'n' sockets PCB
•
Belton ABE-FX, a fully populated SMD PCB which plugs into the Pots 'n' sockets PCB
Build documentation for:
Stasis Leak
Chorus/tap delay/plate reverb
Main PCB
Pots 'n' sockets PCB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stasis Leak and is the answer not in the manual?

Questions and answers

Related Manuals for Frequency Central Stasis Leak

Summary of Contents for Frequency Central Stasis Leak

  • Page 1 Stasis Leak is a 6HP 48kHz DSP effects module, providing a choice of stereo chorus, stereo plate reverb and tap tempo delay. Stasis Leak is based around a Belton ABE-FX sub board, which in turn is based around a Coolaudio V1000 chip.
  • Page 2 Key to PCB screen print: n: This signifies NPN BC547 transistor. Note the correct pinout as shown by the half circles. The PCB shows the correct orientation for BC547. Other transistor types can be used (eg 2N3904), but please observe the correct pinout. Please observe correct polarity of the electrolytic caps, voltage regulators, transistor, ICs etc! Bill of Materials 33R x 1...
  • Page 3 Affixing the Belton ABE-FX The Belton plugs in to the Pots ‘n’ sockets PCB. We recommend using a header to mount the Belton (see photo on last page of this build doc). This makes the module a little deeper than directly soldering the Belton without a header.
  • Page 4 Pots ‘n’ sockets PCB Populate the Panel PCB as shown on the silkscreen in this order: • Resistors and diode • Transistor • Don’t do the LED yet! • The upper 2 potentiometers, the switch and the sockets. Use the panel to make everything line up nicely.
  • Page 5 0V as possible. With Stasis Leak powered up, take a patch lead from the Left output. Using crocodile clips, hook up the tip to the red probe of your DMM, and the sleeve to the black probe of your DMM. Adjust the trimmer until the voltage measurement is 0V or thereabouts.
