Cannondale Quick Neo SL w/ Ebikemotion X35 Drive System 2020 Technical Supplement

Cannondale Quick Neo SL w/ Ebikemotion X35 Drive System 2020 Technical Supplement

Advertisement

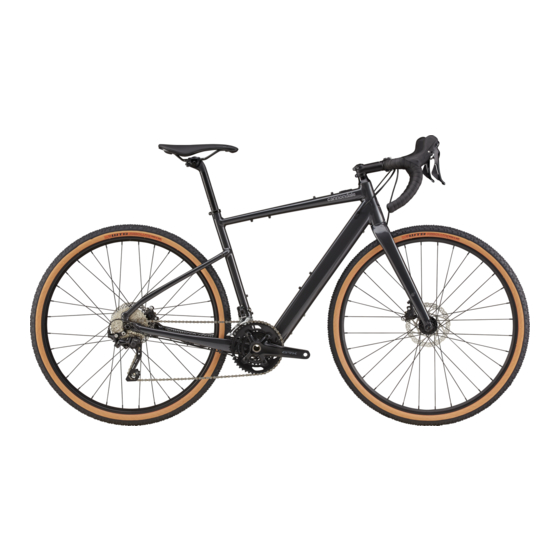

MY20 Quick Neo SL, Treadwell Neo
About Technical Supplements
This document is intended only for competent, experienced bicycle mechanics familiar with bicycle terminology,
service techniques and equipped with proper tools.
This document is not an Owner's Manual or Owner's Manual Supplement. These resources can be found as
downloadable Adobe PDFs from our website :
CONTENTS
Cable Routing Frame Overview ............................. 2
Cable Routing Rear Wheel...................................... 3
Bottom Bracket & Cover ......................................... 6
Internal Battery Assembly Overview .................... 4
Internal Battery Replacement ............................... 5
Replacement Parts ................................................. 8
Symbols in Use
- NGLI-2 synthetic grease
- Loctite® 242 (blue) or equivalent
2
N·m - Newton meter
WARNING
Information intended for service professionals
only. Improper mechanical work increases the risk
of an accident. Any bicycle accident has risk of
serious injury or death.
Release : 11/06/19
w/ Ebikemotion® X35 Drive System
www.cannondale.com
Technical Supplement (EN)
OTHER RESOURCES
Ebikemotion® Drive System Manuals
The following internet links will direct you to the
drive manufacturer's website and a specific user
manual or quick guide you will need to read and
consult:
URL
https://www.ebikemotion.com
http://iWocONE-Quick-User-Guide
http://User-Guide-X35-Connection+Mount
http://User-Guide-X35-Care+Maintenance
Periodically, check back with the manufacturers'
website for revisions and/or additions to drive
system manuals.
If you have any questions about this supplement
please call:
Your Warranty/Technical Representative
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quick Neo SL w/ Ebikemotion X35 Drive System 2020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cannondale Quick Neo SL w/ Ebikemotion X35 Drive System 2020

  • Page 1 This document is not an Owner’s Manual or Owner’s Manual Supplement. These resources can be found as downloadable Adobe PDFs from our website : www.cannondale.com CONTENTS OTHER RESOURCES Cable Routing Frame Overview ......2 Ebikemotion®...
  • Page 2 Page 2 of 8 Technical Supplement Cable Routing MY20 Quick Neo SL, Treadwell Neo Frame Overview The DT is an extrusion that has 2 compartments. The top compartment is for brake and RD housing. 5 N·m All treadwell have rear lights. EQ has front and rear.
  • Page 3 Page 3 of 8 Technical Supplement Cable Routing MY20 Quick Neo SL, Treadwell Neo Rear Wheel 3 N·m Identification Secure drive unit cable (DU) to frame with clips. 1. X35 Drive Unit (rear hub) RB - Rear Brake Line 2. Cable Clip RD - Rear Derailleur Housing Prevent cable from contacting brake rotor.
  • Page 4 Page 4 of 8 Technical Supplement Internal Battery MY20 Quick Neo SL, Treadwell Neo Assembly Overview 5 N·m 5 N·m M5 X 12 Max. NOTICE Do not use mounting Identification bolts longer than the maximum specifed. 1. Battery, Internal 6. Battery Spacer a.
  • Page 5 Page 5 of 8 Technical Supplement Internal Battery MY20 Quick Neo SL, Treadwell Neo Replacement Procedure Remove Install Disconnect the rear hub and battery connector Attach the three battery spacers onto the on the left chainstay replacement internal battery at the mounting points on the lower surface of the battery.
  • Page 6 Page 6 of 8 Technical Supplement Cable Routing MY20 Quick Neo SL, Treadwell Neo Bottom Bracket & Cover 3 N·m Identification 1. Downtube RB - Rear Brake Line a Drain Holes 2. Bottom Bracket Cover RD - Rear Derailleur Housing 3.
  • Page 7 Page 7 of 8 Technical Supplement Specifications & Replacement Parts MY20 Quick Neo SL Standard & Remixte Frames Item Specification Item Specification Drive System E-Bike Motion X35 M1-C 700c x 42mm Tire Size x Max. Tire Width Battery E-Bike Motion X35 B1-C Brakes: Mount Type / Min./Max.
  • Page 8 Page 8 of 8 Technical Supplement Specifications & Replacement Parts MY20 Treadwell Neo Standard & Remixte Frames Item Specification Item Specification Drive System E-Bike Motion X35 M1-C 65mm Min. Seat Post Insert Battery E-Bike Motion X35 B1-C 650b x 48mm Tire Size x Max.

This manual is also suitable for:

Treadwell neo w/ ebikemotion x35 drive system 2020

Table of Contents
