Cannondale Tesoro Neo X Speed Owner's Manual Supplement
  1. Manuals
  2. Brands
  3. Cannondale Manuals
  4. Bicycle
  5. Tesoro Neo X Speed
  6. Owner's manual supplement

Cannondale Tesoro Neo X Speed Owner's Manual Supplement

Hide thumbs

Advertisement

Quick Links

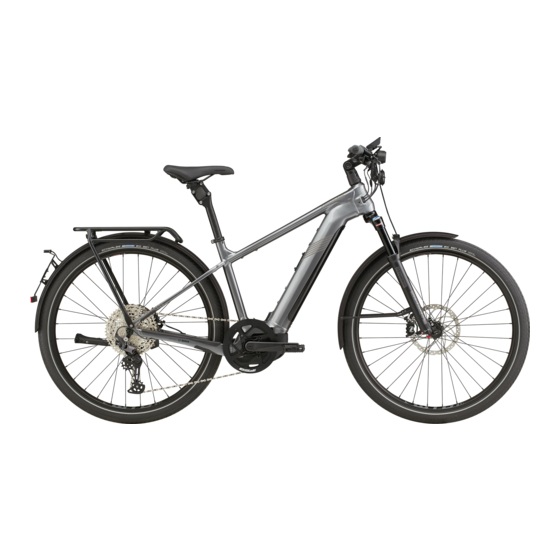

Tesoro Neo X Speed
Owner's Manual Supplement
READ THIS SUPPLEMENT AND YOUR
CANNONDALE BICYCLE OWNER'S MANUAL.
Both contain important safety information. Keep
both for future reference.
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tesoro Neo X Speed and is the answer not in the manual?

Questions and answers

Related Manuals for Cannondale Tesoro Neo X Speed

Summary of Contents for Cannondale Tesoro Neo X Speed

  • Page 1 English Tesoro Neo X Speed Owner’s Manual Supplement READ THIS SUPPLEMENT AND YOUR CANNONDALE BICYCLE OWNER’S MANUAL. Both contain important safety information. Keep both for future reference.
  • Page 2 Safety Messages In this supplement, particularly important information is presented in the following ways: Indicates a hazardous situation which, if not avoided, may result in death or serious injury. NOTICE Indicates special precautions that must be taken to avoid damage. The following symbols are used in this manual: Symbol Name...

  • Page 3: Table Of Contents

    Replacement Parts ...... 24-27 your bike; obtain and read all of them. E-Bike Maintenance ....28-30 Please contact your Authorized Cannondale Dealer immediately if you need a manual or Notes ..........31-32 supplement, or have a question about your bike.

  • Page 4: Identification

    Identification Parts of Your E-Bike Tesoro Neo X Speed OMS IDENTIFICATION Parts of Your E-Bike Actual bike appearance will differ. Identification 7. Horn 12. Seatpost 18. VIN - Vehicle Identifi- . Drive display 8. Rear Light (w/ plate 13. Seat clamp cation Number 2.

  • Page 5: Safety Information

    At anytime, if you stop pedaling, the drive-assist will dis-engage. To minimize risk we strongly recommend that owners always have mechanical work done by an Authorized Cannondale Dealer.
  • Page 6 OBSERVE MINIMUM OPERATOR AGE - Follow any national, state, or local laws for any minimum age restrictions for the operator of the E-Bike. Ask your local Authorized Cannondale Dealer for more information about operating an electrically assisted pedal bicycle in your area.
  • Page 7 Safety Information Operation Operation Always wear an approved bicycle helmet and all other protective gear (e.g., gloves, pads, and cycling shoes). Importance of practice & rider training - before you ride this bike, practice riding in a safe area free from hazards. Take time to learn the bike’s controls and performance. Practice the controls and to gain the experience necessary to avoid the many hazards you will encounter while riding.
  • Page 8 Safety Information Compliance/Regulation Tesoro Neo X Speed OMS continued from previous page... Wired system control: If the drive system control device is detached from the mount or if the cables are disconnected or damaged, the drive system will automatically shut off. If this happens, you will have to stop the bike, turn the system off, re-attach the computer to the base, and then turn the system back on to resume operation.
  • Page 9 Safety Information Compliance/Regulation Batteries & Chargers REPLACEMENT - Only use the battery pack and charger indicated in the “Specifications” section of this supplement. Do not use other batteries or chargers. Do not use the charger to charge other batteries. PREVENT DAMAGE - Do not drop the battery or charger. Do not open, disassemble, or modify the battery or charger.
  • Page 10 Safety Information Compliance/Regulation Tesoro Neo X Speed OMS No Modification Commuting DO NOT MODIFY THIS BICYCLE/DRIVE EQUIPMENT - Any bicycle, including an SYSTEM IN ANY WAY FOR ANY REASON. E-Bike, must be properly equipped for Doing so can result in severe damage, in...

  • Page 11: Key

    Using the Key Please Note: After multiple rides and bike-washes, the battery lock can become dry and difficult to use. To maintain, whenever you lubricate your bike chain, place a few drops of chain oil on the key, insert the key and operate the lock, then remove and wipe the key clean.

  • Page 12: Technical Information

    Technical Information Specifications Tesoro Neo X Speed OMS TECHNICAL INFORMATION Specifications Item Specification Drive System Bosch Performance Line Speed Battery Bosch PowerTube 625Wh Drive-Assist Owner’s Manual https://www.bosch-ebike.com/ Head Tube UPR: 1-1/8 in LWR: 1-1/2 in Headset Integrated 1-1/8 in - 1-1/2 in...
  • Page 13 Technical Information Geometry Geometry Dimensions = centimeter * = same spec. 75 mm Item Frame Size Wheel Size Seat Tube Length 43.5 Top Tube Horizontal 58.4 59.9 63.2 66.5 Top Tube Actual 56.9 57.8 60.8 63.9 Head Tube Angle 67.0° Seat Tube Angle Effective 74.0°...
  • Page 14 Technical Information Horn & Headlamp Tesoro Neo X Speed OMS Horn & Headlamp The horn and headlamp are activated by the drive system power. Both are required. Replace them if damaged or missing. Adjust the headlamp for best forward projection without raising too high to impair approaching vehicles.
  • Page 15 Technical Information Rear Light & Reflector Rear Light & Reflector The rear light is activated by the drive system power. Both the light and reflector are required. Replace them if damaged or missing. See SUPERNOVA-lights.com for manufacturer’s instructions. 115-165 mm Identification 30°...
  • Page 16 Technical Information Side Stand Tesoro Neo X Speed OMS Side Stand Do not sit on the bicycle with the stand down. Kickstand is not designed to support the weight of a person. Make sure kickstand is up before riding. To prevent toppling over, park your bike on a level surface;...
  • Page 17 Technical Information Seat Post Seat Post See www.postmoderne.com for manufacturer’s instructions. Saddle clamp Finger And hardware Saddle clamp protector Finger And hardware protector Min. Height MIN. HEIGHT Max. Height MAX. HEIGHT Adjustable linkage Hardware Adjustable linkage Hardware Preload adjust Preload adjust Min.
  • Page 18 Do not attempt to work on the cable routing yourself. Due to the complex nature of the parts and the level of disassembly required to gain access, have any repairs or replacements of the battery, cables or hose parts identified performed by an authorized Cannondale e-bike service center. 138247 Rev 1 (20/20)
  • Page 19 Technical Information Cable Routing Overview Upper Downtube: BOSCH bracket mounted with RAIL on top side of downtube. Lower Downtube: 4 mm BOSCH bracket mounted with 5 mm BOSCH washer on bottom 5 N·m side of downtube (not shown), use standard BOSCH method. BOSCH 6 N·m RD - Rear Derailleur...
  • Page 20 Technical Information Stem Tesoro Neo X Speed OMS Stem Side View Top View Angle Adjustment This page provides sequential steps and torque values for the adjustment indicated. The adjustments should be performed by a professional bike mechanic. Headset Adjustment Incorrect adjustment can lead to an accident resulting in serious injury or death.
  • Page 21 Technical Information Battery Charging Port Battery Charging Port The battery charging port is located on top of the bottom bracket area. The charging port enables the internal battery to be charged while it remains installed in the bicycle. Fully close. To connect the charger cable to the port connector: Follow the drive system manufacturer’s...
  • Page 22 Technical Information Powertube Battery Tesoro Neo X Speed OMS Powertube Battery The drive system battery (1) is housed within the bicycle downtube. The battery can be charged via the charge port (9) or removed for charging. To remove the battery: 4.
  • Page 23 Technical Information Powertube Battery olor Identification 1. Battery, internal 7. Battery hook accept 2. Battery cover (attached) 8. Frame battery hook 3. Key cover 9. Battery charge connector 4. Key 10. Frame connector 5. Latch 11. Charge port 6. Battery Release Tab...
  • Page 24 Technical Information Battery Cover Tesoro Neo X Speed OMS Battery Cover The battery cover is intended to remain in-place on the battery at all times. It is only necessary to slide off the cover if the cover or battery becomes damaged. The cover can be transferred to another battery to be used when riding.
  • Page 25 Technical Information Battery Cover Identification 1. Battery cover 5. Battery slots 2. Battery 6. Plug side 3. Battery cover latch 7. Lock side 4. Cover rails 8. Battery connector...

  • Page 26: Replacement Parts

    Replacement Parts Frame Tesoro Neo X Speed OMS REPLACEMENT PARTS N·m Frame Part Number Description Part Number Description CK3257U00OS Derailleur Hanger TA ST SS 015 K34140 Key Cover w/ Leash K31010 Flip Chip Kickstand Bracket Battery Cover Mounting Washer K76070...

  • Page 27: E-Bike Maintenance

    Before and After Each Ride: • Clean and visually inspect the entire bike for cracks or damage. See “Inspect for Safety” in your Cannondale Bicycle Owner’s Manual. • Make sure the battery is fully charged and mounted securely. Follow the drive system charging instructions.
  • Page 28 E-Bike Maintenance Maintaining Your Bike Tesoro Neo X Speed OMS Maintaining Your Bike Maintaining Your Bike’s Drive System Read your Cannondale Bicycle Owner‘s Manual for information on the owner‘s responsibility for routine inspection and NOTICE maintenance of your bike. Drive-assist system components must...
  • Page 29 E-Bike Maintenance Cleaning Cleaning When cleaning your bike, use a damp sponge or a soft brush with only a mild soap and water solution. Rinse the sponge often. Do not spray water directly on controls or on drive system components. NOTICE Do not use a pressure washer or dry with compressed air.

  • Page 30: Notes

    NOTES Record Tesoro Neo X Speed OMS NOTES Use NOTES pages to write /record important information about your bike : (e.g. maintenance history, dealer contact information, settings, etc.) 138247 Rev 1 (20/20)
  • Page 31 NOTES Record...
  • Page 32 NOTES Record Tesoro Neo X Speed OMS 138247 Rev 1 (20/20)
  • Page 34 © 2020 Cycling Sports Group Tesoro Neo X Speed Owner’s Manual Supplement 138244 Rev 1 Cannondale USA Cannondale Europe Cannondale UK Cycling Sports Group, Inc. Mail: Postbus 5100 Cycling Sports Group 1 Cannondale Way, Visits: Hanzepoort 27 Vantage Way, The Fulcrum,...
