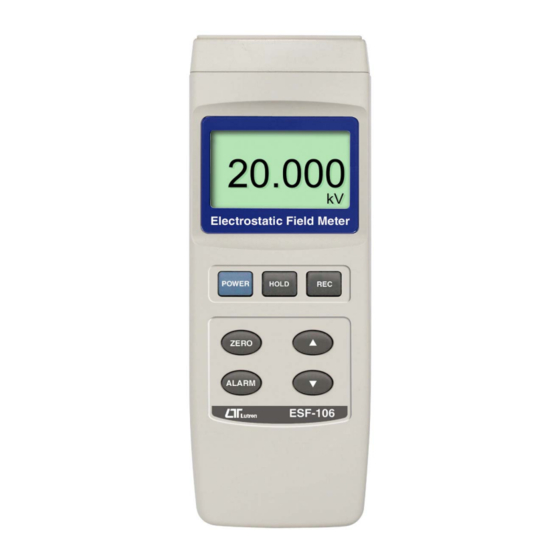

Lutron Electronics ESF-106 Operation Manual

Lutron Electronics ESF-106 Operation Manual

Electrostatic field meter

Advertisement

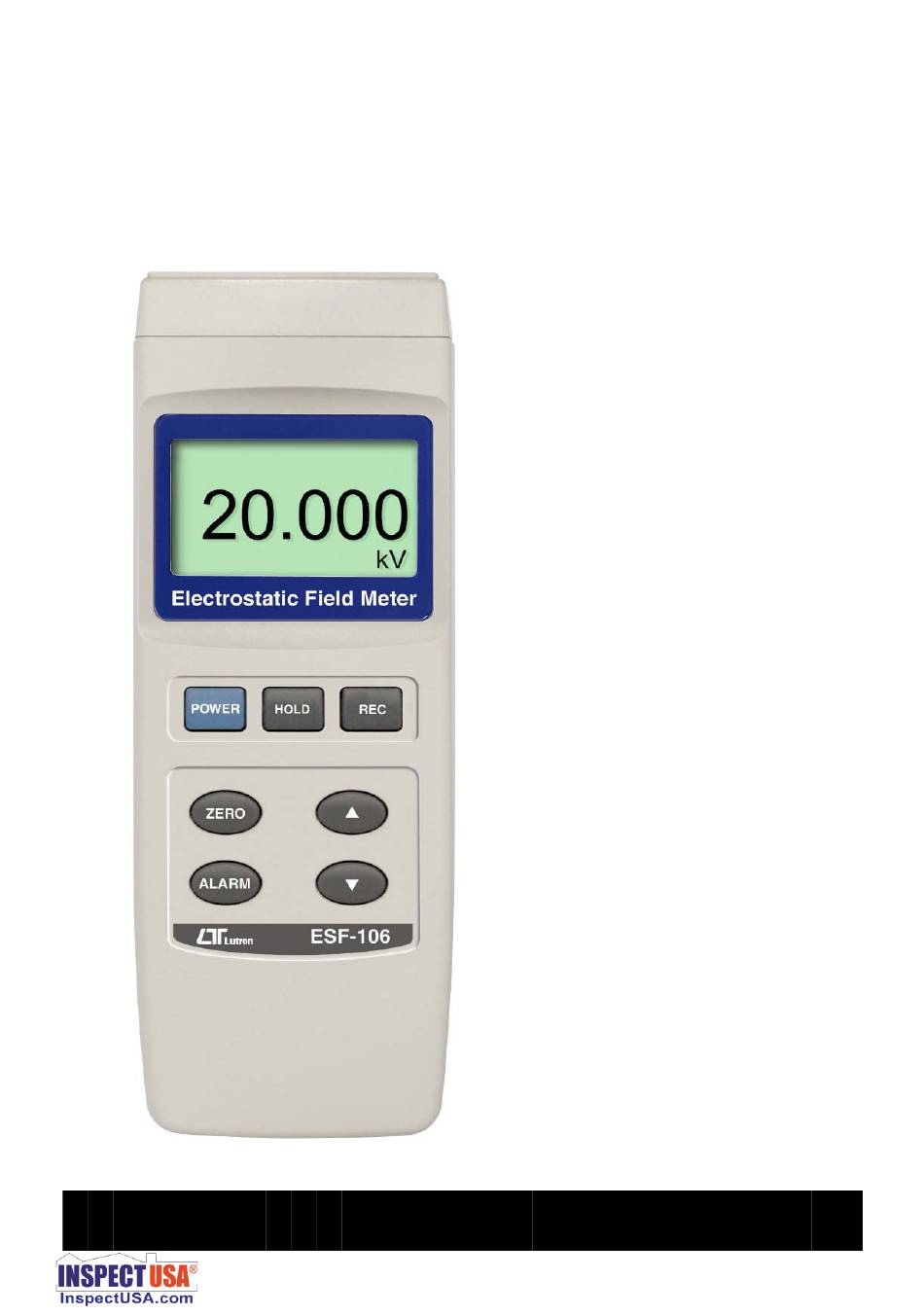

ELECTROSTATIC FIELD
METER
Model : ESF-106
OPERATION MANUAL
Your purchase of this
ELECTROSTATIC FIELD
METER
marks a step
forward for you into the
field
of
precision
measurement. Although
this METER is a complex
and delicate instrument,
its durable structure will
allow many years of use
if
proper
operating
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
a r e
carefully
easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESF-106 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lutron Electronics ESF-106

  • Page 1 ELECTROSTATIC FIELD METER Model : ESF-106 Your purchase of this ELECTROSTATIC FIELD METER marks a step forward for you into the field precision measurement. Although this METER is a complex and delicate instrument, its durable structure will allow many years of use...
  • Page 2 TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 2-1 General specifications........... 1 2-2 Electrical specifications......... 2 3. FRONT PANEL DESCRIPTION........3 3-1 Display............... 3 3-2 GROUND point............. 3 3-3 POWER / Backlight button........3 3-4 HOLD button............3 3-5 RECORD button ( MAX. / MIN. )......3 3-6 ZERO button............
  • Page 3: Specifications

    1. FEATURES * Professional precision STATIC Voltage meter with 0.001 kV resolution. * LSI - circuit provides high reliability and durability. * Measurement range : -19.999 kV to +19.999 kV. * High voltage alarm : +/- 18.000 kV. * ALARM setting : 0.010 kV to 18.000 kV. * Data hold , Records ( Max.
  • Page 4 Operation Temp. 0 to 50 ( 32 to 122 ℃ ℃ ℉ ℉ Operation Less than 70% RH, non-condensing. humidity Power supply Alkaline or Heavy duty type DC 9V battery. 006P , MN1604 (PP3) or equivalent Power Approx. DC 6 mA consumption Weight 215 g / 0.476 LB...
  • Page 5: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 GROUND point 3-3 POWER / Backlight button 3-4 HOLD button 3-5 RECORD button ( MAX. / MIN. ) 3-6 ZERO button button ▲ 3-8 ALARM button button ▼ 3-10 SENSE disc 3-11 Magnetic SPACER 3-12 RS-232 output terminal 3-13 RESET button...
  • Page 6: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Power ON /OFF 1. Press the "POWER / Backlight button" (3-3 , Fig. 1) more than 2 seconds to Turn ON the meter. 2. Press the "POWER / Backlight button" (3-3 , Fig. 1) more than 2 seconds to Turn OFF the meter.
  • Page 7 4. Keep your fingers away from the test area to avoid accidental discharge . 5. STATIC Voltage will be displayed on the screen . 4-5 ALARM Setting procedure 1. This meter has HIGH Voltage WARNING function . When reading is over 18.000 kV . the meter will beep to user . ( this meter can reading over 19.990 kV.) 2.
  • Page 8: System Reset

    2. With the " REC " symbol on the display : a) Press the " REC Button " ( 3-5 , Fig.1 ) once , the " REC MAX " symbol will appear on the display and LCD will be showing the maximum value. b) Press the "...
  • Page 9: Maintenance

    6. MAINTENANCE 1 Instruments used in dusty environments should be stripped and cleaned periodically. 2 Do not leave the instrument exposed to direct heat from the sun for long periods. 3 Before removing the battery compartment cover, ensure that the instrument is disconnect from any circuit and the instrument is power OFF .
  • Page 10: Battery Replacement

    The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : Start Word, 02 D12, D11 Annunciator for Display DC kV = G9 Polarity 0 = Positive 1 = Negative...
