DYNAMIC MOTION SYSTEM - CONFIGURATION HANDBOOK // PAGE 18
5.5 APPROVED BENCHING APPLICATIONS
This chapter describes how to assemble a Benching Application (see Chapter 5.1). You will need one User
Interface for each table. The Actuators within a single table are operated simultaneously by one User
Interface. Benching Applications also require a Benching Adapter Cable (see Chapter 4.4.2), which works
like a power distributor. The Table Top and Height-Adjustable Columns are supplied by the Reseller.
Only one type of DYNAMIC MOTION Actuator can be used per Table within the
Benching System. Multiple types of Actuator can be used in the system (e.g.
DMD500 in Table 1 and DMG90 in Table 2. However, connecting different types
NOTICE
of Actuator within a Benching System may cause errors and damage to the Table
System if performed incorrectly. Contact LOGICDATA before attempting to create
a Benching System of this type.

5.5.1 BENCHING APPLICATION 1

This system creates: Benching system with two 2-leg tables and a single Power Hub (DMP240)
4 Height-Adjustable Columns with DYNAMIC MOTION Actuators
1 DMLIN Actuator Cable per Actuator
2 User Interfaces
1 DMP240
1 Power Cable
1 Benching Adapter
Connecting the System
Table with the Power Hub:
1. Plug the Actuators into the Power Hub
2. Plug the User Interface into the Power Hub
Other tables:
3. Plug the Actuators into the Benching Adapter
4. Plug the User Interface into the Benching Adapter
5. Plug the Benching Adapter into the Power Hub
6. Plug the Power Hub into the Mains
DMP240

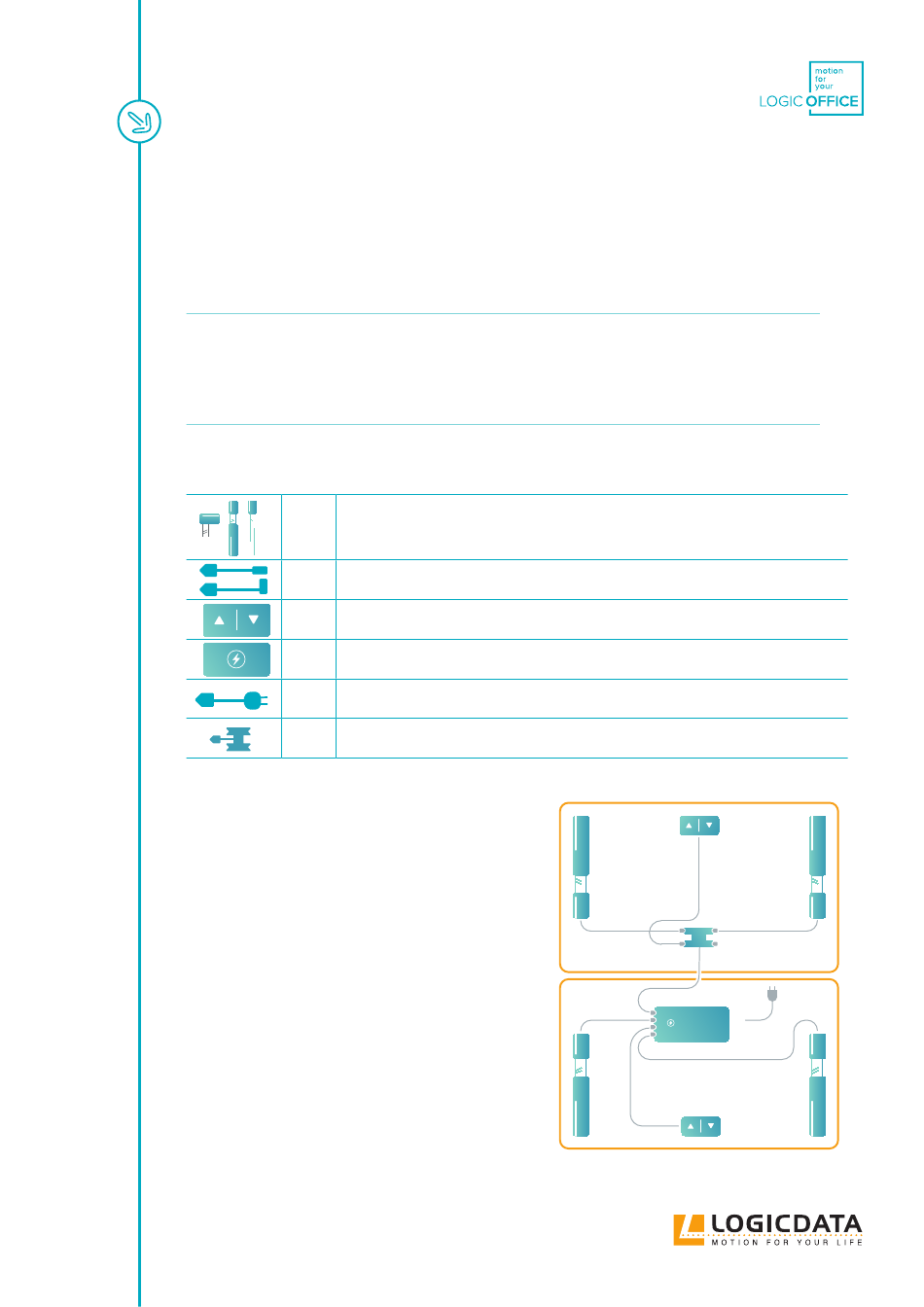

Fig. 5: Benching Application 1
