Bloomfield 8783D3FM Owner's Manual

Bloomfield 8783D3FM Owner's Manual

3-warmer decanter coffee brewer

Advertisement

Quick Links

BLOOMFIELD INDUSTRIES
10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
www.wellsbloomfield.com

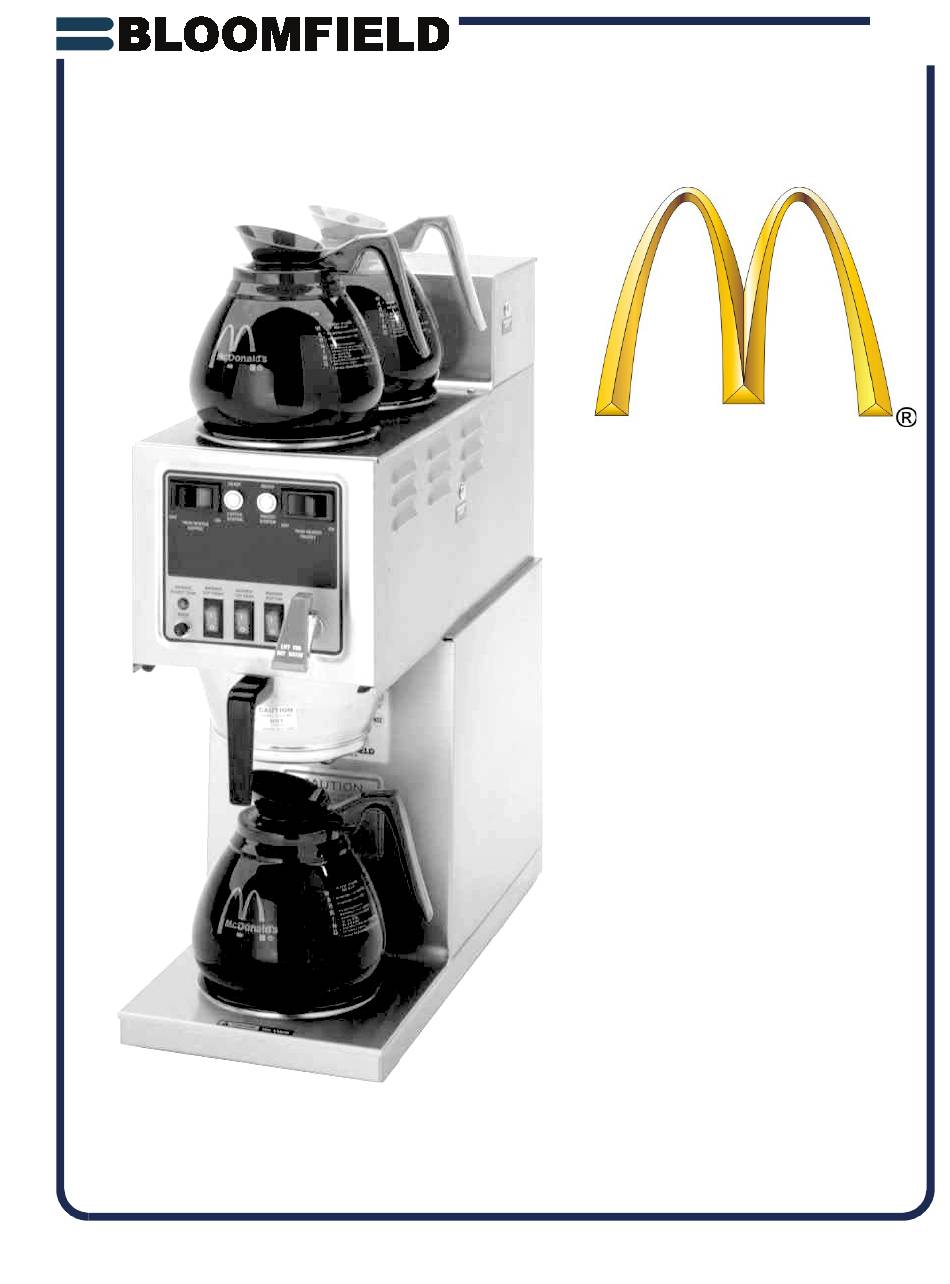

Model 8783D3FM Brewer
with optional
8900-Series Decanters
Z15131
p/n 2m-
Rev. -
Place this chapter in the Beverage
Section of the Equipment Manual
OWNERS MANUAL
for
3-WARMER
DECANTER
COFFEE BREWERS
WITH INDEPENDENT
HOT WATER DRAW FAUCET
MODEL:
8783D3FM
Includes:
Installation
Operation
Use & Care
Servicing Instructions
This instruction is for the
exclusive use of licensees
and employees of
McDonalds Systems, Inc.
M915
915
11
0902

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8783D3FM and is the answer not in the manual?

Questions and answers

Summary of Contents for Bloomfield 8783D3FM

  • Page 1 HOT WATER DRAW FAUCET MODEL: 8783D3FM Includes: Installation Operation Use & Care Servicing Instructions This instruction is for the exclusive use of licensees and employees of McDonalds Systems, Inc. Model 8783D3FM Brewer with optional 8900-Series Decanters Z15131 p/n 2m- Rev. - M915 0902...
  • Page 2: Warranty Statement

    The prices charged by Bloomfield Industries for its products original installation or eighteen (18) months from the date of are based upon the limitations in this warranty. Seller’s...
  • Page 3: Table Of Contents

    WIRING DIAGRAMS appliance in a manner which will ensure its optimum performance. SPECIFICATIONS MODEL VOLTS WATTS AMPS POWER SUPPLY 1ø REQUIREMENTS 8783D3FM 220-240 3900 16.2 2 WIRE +GND Not provided APPLICABILITY This manual applies to the following Bloomfield product: 8783D3FM...
  • Page 4: Features & Operating Controls

    FEATURES AND OPERATING CONTROLS Fig. 1 Features & Operating Controls...
  • Page 5: Precautions & General Information

    PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCk HAzARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INjURY HAzARD All installation procedures must be performed by qualified personnel with full knowledge of all...
  • Page 6 Install with FLOW criteria to insure successful arrow marking on strainer body pointing toward brewer. operation of the brewer. Bloomfield recommends 1/4” copper tubing for installation of less than 12 feet and 3/8” for more than 12 feet from a 1/2”...
  • Page 7: Installation Instructions

    IMPORTANT: Before connecting to electricity, make sure automatic brewers are connected to the water supply. IMPORTANT: Do not connect Model 8783D3FM requires a dedicated 220 to 240 volt 20 amp brewer to electrical power until circuit (L1, L2) plus ground.
  • Page 8: Operation

    OPERATION IL2326 Fig. 4 Brewer Operation Diagram START-UP IMPORTANT: Tanks must be full of For initial start-up, or if the brewer has not been used for an water before pressing extended period of time: either TANK HEATER • Be sure spray disk and brew gasket are properly installed in the SWITCH “...
  • Page 9 OPERATION (continued) WATER HEATER Separate coffee brew water and faucet water heater systems are identical. Each heating element is protected from over-temperature by a manual reset hi-limit safety thermostat. Water temperature is sensed by a thermobulb inserted into each water tank.
  • Page 10: Brewing Coffee

    BREWING COFFEE A. PREPARATION CAUTION: BURN HAzARD Place one (1) genuine Bloomfield paper filter in the brew chamber. Exposed surfaces of the Add a pre-measured amount of brewer, brew chamber and fresh coffee grounds. decanter may be HOT to Gently shake the brew chamber to the touch, and can cause level the bed of grounds.
  • Page 11: Cleaning Instructions

    CLEANING INSTRUCTIONS CAUTION: PROCEDURE: Clean Coffee Brewer BURN HAzARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause TOOLS: Mild Detergent, Clean Soft Cloth or Sponge serious skin burns.
  • Page 12: Troubleshooting Suggestions

    Repair/replace as needed Coffee level too high or low Timer out of adjustment Adjust timer Use one (1) genuine Bloomfield filter per Too many filter papers or wrong filter paper brew Brew chamber overflows Brew chamber dispense hole plugged...
  • Page 13: Servicing Instructions

    SERVICING INSTRUCTIONS ACCESS PANELS CAUTION SHOCk HAzARD TOP PANEL: Remove top panel to access hot water tanks, thermostats, Opening access panels or thermo probe, heating elements and main power switch. removing warmer plates on this Top panel is held by a retaining lip at the front and two brew may expose uninsulated screws near the middle top.
  • Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADjUSTMENT CAUTION: Thermostat control may be accessed by removing either of the SHOCk HAzARD two button plugs on the right side of the brewer. Front control is COFFEE BREW temperature; rear control is FAUCET WATER These procedures involve temperature.
  • Page 15 SERVICING INSTRUCTIONS (continued) IMPORTANT: Water pressure BREW TIME ADjUSTMENT must be between 20 p.s.i and Remove brew chamber and button plug. Adjust TIMER shaft; 90 p.s.i. flowing pressure. clockwise increases time. Brewer should dispense one full If water pressure exceeds this decanter of water.
  • Page 16 Make sure the gasket is properly in place, delimed. Should deliming hoses then reinstall lid clamps. become necessary, Bloomfield 8. Reinstall wiring to heating element and thermostat. recommends replacing the Verify that all internal components are dry, then reinstall the hoses.
  • Page 17 Should deliming hoses 10. Reconnect brewer to electrical supply and reconnect water become necessary, Bloomfield supply. recommends replacing the 11. Run and discard at least three full decanters of water from hoses.
  • Page 18: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST IL2324a-915 Model: 8783D3FM-240...
  • Page 19 September 7, 2010 EXPLODED VIEW & PARTS LIST (continued) Model 8783D3FM-240 Model 8783D3FM-240 PART NO. DESCRIPTION PART NO. DESCRIPTION 2C-70092 SCREW PHL SS 8-32x3/8 2C-70410 NUT HEX 1/2-24 BRASS 2N-70635UL ELEMENT, WARMER 100W 240V 2K-70103 ELBOW, OUTLET 2D-70090 COVER PLATE, WARMER...
  • Page 20: Service Kits

    SERVICE kITS SERVICE kITS SOLENOID REPAIR KITS DD-76107 Solenoid Complete, Dual WS-85218 Inlet Fitting Kit (includes cap, inlet fitting, washer and screen) WS-85219 Inlet Strainer (includes screen only)
  • Page 21: Wiring Diagrams

    WIRING DIAGRAM...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com...
