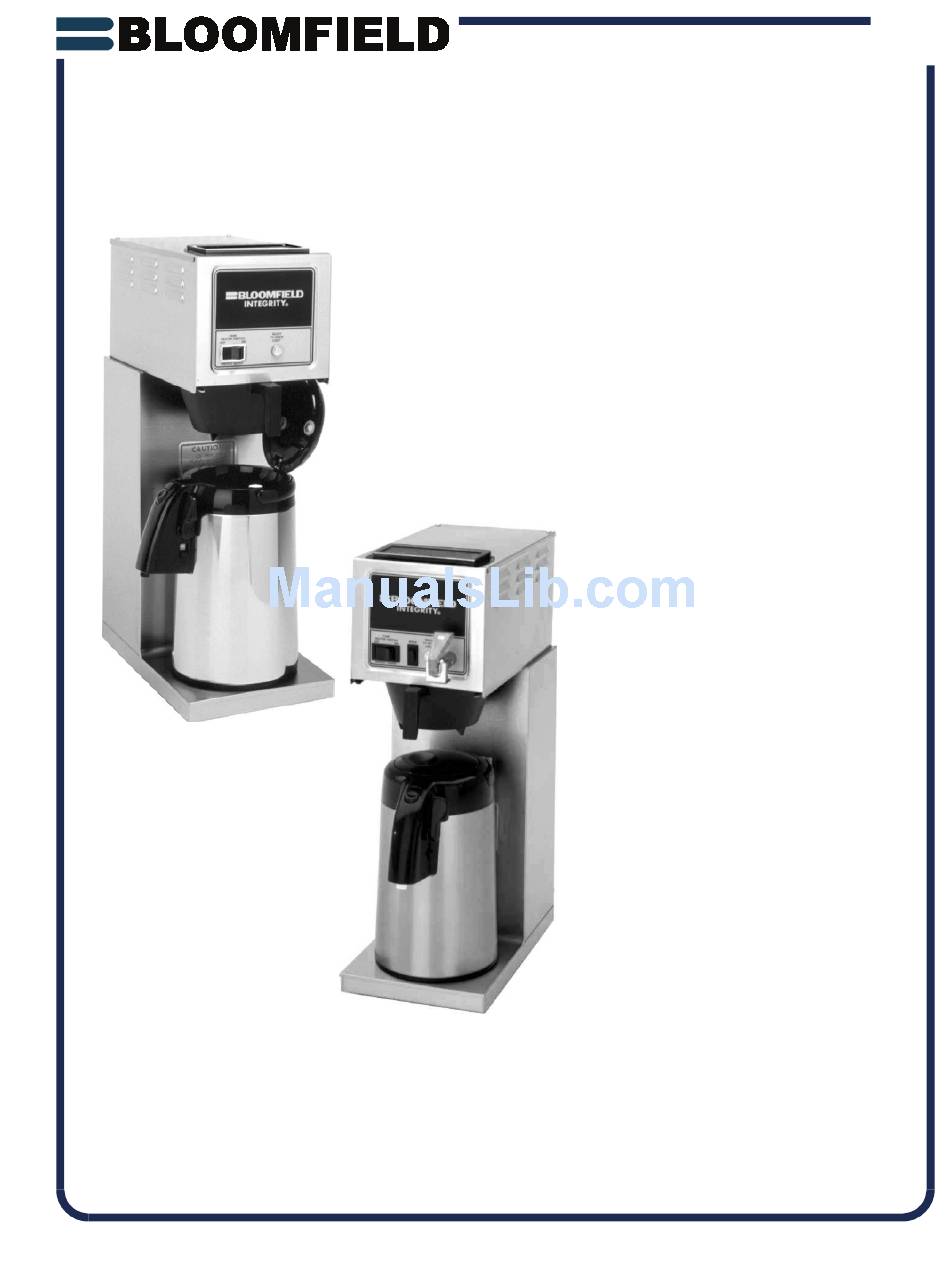

Page 1 314-781-2714 www.wellsbloomfield.com OWNERS MANUAL INTEGRITY™ Model 8774 Brewer with optional 8881 Airpot COFFEE BREWERS MODELS 8773 Automatic Airpot Brewer 8774 Pour-Over Airpot Brewer Domestic and Export Models Includes: Installation Use & Care Model 8773 Brewer Servicing Instructions with optional...
Page 2: Warranty Statement
The prices charged by Bloomfield Industries for its products original installation or eighteen (18) months from the date of are based upon the limitations in this warranty. Seller’s...
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY STATEMENT Thank You for purchasing this SPECIFICATIONS Wells Bloomfield appliance. FEATURES & OPERATING CONTROLS Proper installation, professional PRECAUTIONS & GENERAL INFORMATION operation and consistent AGENCY LISTING INFORMATION maintenance of this appliance will INSTALLATION INSTRUCTIONS ensure that it gives you the very...
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS IL1626 Fig. 1 Features & Operating Controls...
Page 5: Precautions & General Information
PRECAUTIONS AND GENERAL INFORMATION ELECTRIC SHOCK HAzARD WARNING: All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. INjURY HAzARD WARNING: All installation procedures must be performed by qualified personnel with full knowledge of all...
Page 6: Installation Instructions
Provided adjustable, PLUMBER’S INSTALLATION INSTRUCTIONS (MODEL 8773 non-skid legs must be installed at BREWERS ONLY) each corner of the unit.. Failure Brewer should be connected to a POTABLE WATER, COLD to do so will result in movement WATER line.
Page 7 2 wire plus ground, with NEMA 5-15R receptacle). IMPORTANT: The ground prong of the plug Export models 8773 & 8774 are equipped with a cord and plug. is part of a system designed to Refer to page 1 for circuit voltage requirements.
Page 8: Operation
OPERATION IL1627 Fig. 3 Model 8773 Operation Diagram IMPORTANT: START-UP Tank must be full of For initial start-up, or if the brewer has not been used for an water before connecting extended period of time: brewer to electrical power. Heating elements will be...
Page 9: Water Heater
WATER FLOW P O U R -O V ER B A SIN POUR-OVER FEATURE (8773 & 8774) Pouring any amount of cold water into the pour-over opening and into the basin pan forces an identical amount of hot water out...
Page 10: Brewing Coffee
When the ”READY TO BREW” light glows, the Failure to comply can brewer is ready for another brew cycle. cause serious burns. C. AUTOMATIC OPERATION (8773 only) NOTE: Press the TANK HEATER switch to ON. Wait until the “READY TO Water for the hot water BREW”...
Page 11: Cleaning Instructions
CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: PRECAUTIONS: Disconnect brewer from electric power. BURN hAzARD Allow brewer to cool. Brewing and serving FREQUENCY: Daily temperatures of coffee are extremely hot. TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Hot coffee will cause Bristle Brush, Bottle Brush serious skin burns.
Page 12: Troubleshooting Suggestions
Coffee level too high or low Timer out of adjustment (automatic) Adjust timer Too many filter papers or wrong filter Use one (1) genuine Bloomfield filter paper per brew Brew chamber overflows Brew chamber dispense hole plugged Thoroughly clean brew chamber...
Page 13: Servicing Instructions
SERVICING INSTRUCTIONS ACCESS PANELS CAUTION: ShOCk hAzARD TOP PANEL: Remove top panel to access hot water tank, thermostat, heating Opening access panels or elements, brew circuit tubing, faucet valve and piping. removing warmer plates on this Top panel is held by two screws at the rear and a retaining lip at brew may expose uninsulated the front.
Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: ShOCk hAzARD Unplug power cord or turn circuit breaker OFF. Remove top panel. These procedures involve exposed electrical circuits. Pull vent tube out of tank lid and insert a thermometer of known These procedures are to accuracy in vent hole.
Page 15 SERVICING INSTRUCTIONS (continued) TIMER ADJUSTMENT (AUTOMATIC BREWERS ONLY) IMPORTANT: Water pressure must be between 20 p.s.i and The amount of water dispensed automatically during a brew cycle 90 p.s.i. flowing pressure. is controlled by the timer. If water pressure exceeds this Place empty decanter under brew chamber.
Page 16 SERVICING INSTRUCTIONS (continued) REPLACE hEATING ELEMENT IMPORTANT: Remove tank lid assembly per above. When replacing heating element, also replace seal gaskets. Remove two hex nuts holding element to cover. Pull element from mounting holes. Reassemble in reverse order. REPLACE SOLENOID Symptom: Automatic brewer will not flow water;...
Page 17 SERVICING INSTRUCTIONS (continued) REPLACE TIMER ASSEMBLY Unplug power cord or turn circuit breaker OFF. Remove front panel. Remove knob and three screws holding timer to bracket. Disconnect wiring to timer. Reassemble in reverse order. Adjust timer as described on page 13 REPLACE hOT WATER FAUCET COIL IMPORTANT: Symptom: Brewer drips continuously from brew head, except...
Page 18: Deliming Instructions
SERVICING INSTRUCTIONS (continued) CAUTION: PROCEDURE: Delime the Water Tank ChEMICAL BURN hAzARD PRECAUTIONS: Disconnect brewer from electric power. Deliming chemicals may be Allow brewer to cool. caustic. Wear appropriate protective gloves and goggles FREQUENCY: As required (Brewer slow to heat) during this procedure.
Page 19 Make sure the gasket is properly in place, do not need to be delimed. then reinstall the hold-down strap. Should deliming hoses become necessary, Bloomfield 8. Reinstall wiring to heating element and thermostat. Reinstall recommends replacing the the hi-limit thermostat (if removed). For automatic brewers, hoses.
Page 20: Exploded Views & Parts Lists
2C-70146 NUT, HEX 4-40 SS 8773, 8774 2C-70145 SCREW 4-40 x 1 PAN HEAD 8773, 8774 2N-70143UL HEATING ELEMENT (120V, 1500W) 8773, 8774 120V 2N-70173UL HEATING ELEMENT (240V, 1800W) 8773, 8774 220/240V 2D-70110 TANK BODY 8773, 8774 TANK COVER ASSEMBLY INCLUDES: MOUNTED THERMO, HI-LIMIT &...
Page 21 2K-73745 FITTING, 1/4” FLARE SWIVEL ELBOW 8773 DD-75778 BRAIDED HOSE W/ 1/4” BALL VALVE 8773 2K-70096 ELBOW, BASIN INLET DIVERTER POLYPROPYLENE 8773, 8774 2V-70131 TUBE, BREW OUTLET, METAL 4-3/4” LONG 8773, 8774 2K-70130 ELBOW, SPRAYER, SILICONE 8773, 8774 2C-72680 LOCK NUT, HEX 7-16-20...
Page 22: Electrical Components
SWITCH, MOMENTARY, BREW START 8773 2E-70395 SWITCH, TANK HEAT/ENERGY SAVER 8773, 8774 2J-72671 INDICATOR, 120V, READY-TO-BREW 8773, 8774 (US & Canada) 2J-70644 INDICATOR, 240V, READY-TO-BREW 8773, 8774 (Export) 2P-70128 TIMER, 2-MINUTE (WITH DIAL & KNOB) 120V 8773 (US & Canada) 2P-70054 TIMER, 2-MINUTE (WITH DIAL &...
Page 23 EXPLODED VIEW & PARTS LIST (continued) CABINET COMPONENTS IL1633a ITEM PART NO. DESCRIPTION USED ON 2I-70139 GASKET, SPRAY HEAD 8773, 8774 A6-72727 SPRAY DISK, EMBOSSED 8773, 8774 A6-70163 RETAINER, SPRAY HEAD (REQUIRES DRILL/RIVETS TO INSTALL) 8773, 8774 2P-70053 BUTTON PLUG, 2”, METAL...
Page 24: Service Kits
IL1612 COMPLETE SPARE TANk COVER WS-8541 WF-300 Spare Cover Assembly (120V, 1500W, 8773 (U.S. & Canada) With Coil - all parts mounted to cover) WS-8543-300 Spare Cover Assembly (120V, 1500W, 8774 (U.S. & Canada) No Coil - all parts mounted to cover)
Page 25: Wiring Diagrams
WIRING DIAGRAMS...
Page 26 WIRING DIAGRAMS (continued) 2M-73651 (-)
Page 27 WIRING DIAGRAM (continued)
Page 28 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com...
