Summary of Contents for Bloomfield Aquarius 8382

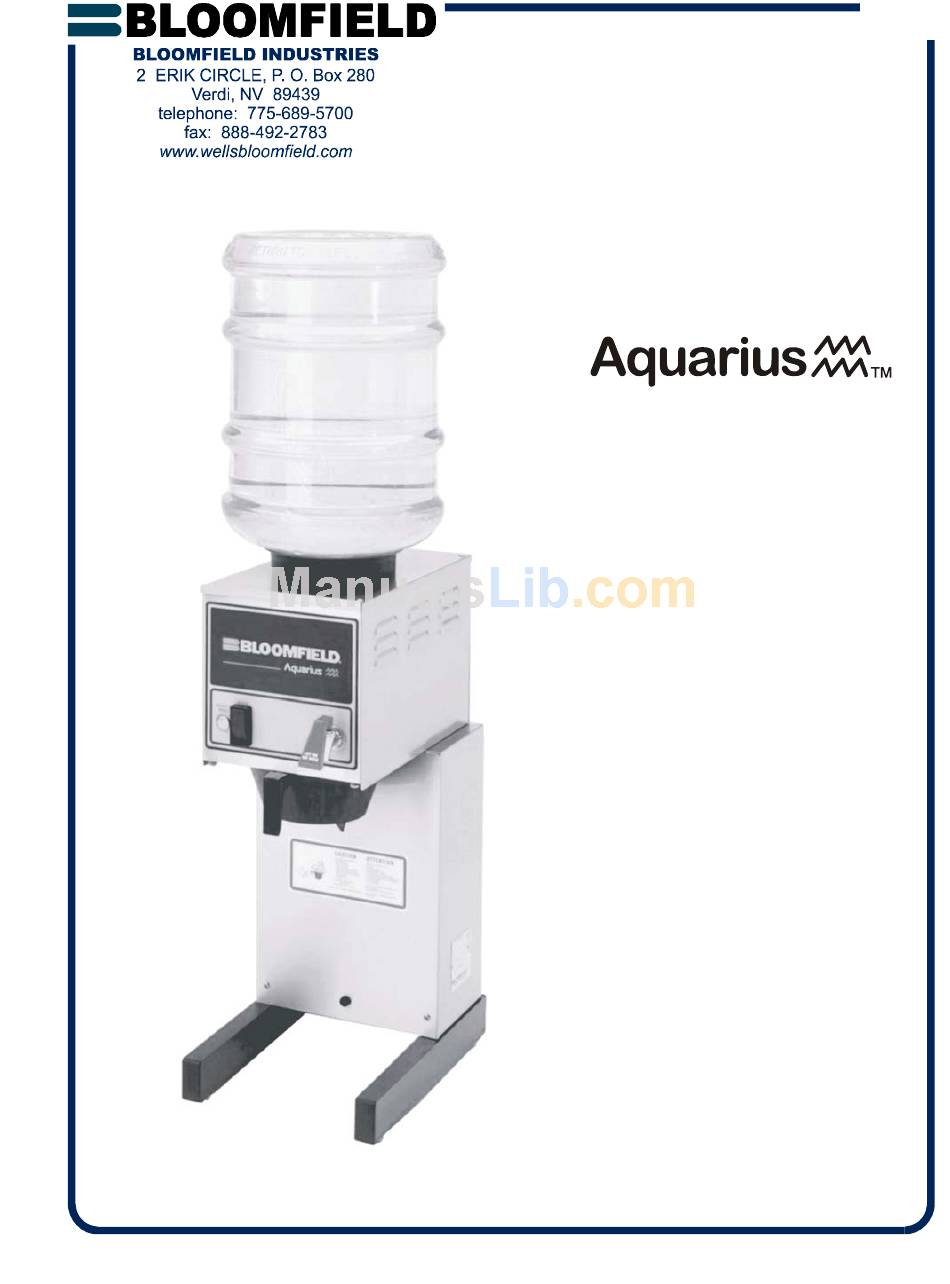

- Page 1 75611 Rev. E ECN-12597 Model 8382 Brewer PRINTED IN UNITED STATES OF AMERICA OWNERS MANUAL BOTTLED WATER AIRPOT COFFEE BREWERS MODEL 8382 3 Gallon 5 Gallon Plastic Bottles Includes: Installation Operation Use & Care Servicing Instructions M682 040914 cps...
-
Page 2: Warranty Statement
FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of the damage. WARRANTY STATEMENT The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. Seller’s obli- gation under this warranty is limited to repair of defects with- out charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies. -
Page 3: Table Of Contents
8382OR AIRPOT BREWER 8382CA with FAUCET meets Canadian standards Thank You for purchasing this Bloomfield Industries appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS Fig. 1 Features & Operating Controls... -
Page 5: Precautions & General Information
WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: Injury Hazard All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical and plumbing codes. -
Page 6: Installation
Model 8382 is equipped with a cord and plug. It requires a 115 - 125 volt 20 amp circuit (50/60 Hz, 2 wire plus ground, with NEMA 5-15R or 5-20R Receptacle). -
Page 7: Operation
START-UP For initial start-up, or if the brewer has not been used for an extended period of time: ♦ Be sure spray disk and brew gasket are properly installed in the brew head. ♦ Install a fresh bottle of water in the bottle ring. ♦... -
Page 8: Water Heater
OPERATION (continued) WATER HEATER Water temperature is sensed by a thermobulb inserted into the water tank. This temperature signal is fed to the thermostat, which controls line power to the heating element. The setpoint temperature is adjustable at the thermostat. The element is protected from over- temperature by a hi-limit thermostat. -
Page 9: Brewing Coffee
BREWING COFFEE PREPARATION Place one (1) genuine Bloomfield paper filter in the brew chamber. Add a pre-measured amount of fresh coffee grounds. Gently shake the brew chamber to level the bed of grounds. Slide the brew chamber into place under the brew head. -
Page 10: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION: Burn Hazard Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns. CAUTION: Electric Shock Hazard Do not submerge or immerse brewer in water. IMPORTANT: DO NOT use steel wool, sharp objects, or caustic, abrasive or chlorinated cleansers to clean the brewer. - Page 11 PROCEDURE: Clean and Sanitize Basin Pan PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: Monthly TOOLS: #2 Phillips Head Screwdriver Mild Detergent, Food Equipment Sanitizer Clean Soft Cloth or Sponge 1. Disconnect brewer from electric power. Allow brewer to cool before cleaning. 2.
-
Page 12: Troubleshooting Suggestions
Repair/replace as needed Replace water bottle Adjust amount of grounds Adjust timer Use one (1) genuine Bloomfield filter per brew Thoroughly clean brew chamber Adjust coffee amount and grind Check/reinstall gasket on INSIDE of brew head... -
Page 13: Servicing Instructions
ACCESS PANELS Top panel is held by four screws at the corners. Front panel is held by two screws at the bottom and a retaining lip at the top. Fig. 8 Access Panels TEMPERATURE ADJUSTMENT With the “READY TO BREW” light ON, draw a cup of water from the hot water faucet. -
Page 14: Timer Adjustment
IMPORTANT: Adjust timer with a full water bottle installed in the bottle ring. IMPORTANT: Before setting assembly into tank, make sure tank lid gasket is properly seated on flange of lid. DO NOT OVER-TIGHTEN. IMPORTANT: When removing tank lid assembly, be careful to not damage or kink thermostat capillary tube. -
Page 15: Replace Heating Element
REPLACE HEATING ELEMENT Remove tank lid assembly per above. Remove two hex nuts holding element to cover. Pull element from mounting holes. Reassemble in reverse order. REPLACE SOLENOID Symptom: brewer will not flow water; or, brewer drips continuously from brew head.) Unplug power cord or turn circuit breaker OFF. - Page 16 SERVICING INSTRUCTIONS (continued) CAUTION - CHEMICAL BURN HAZARD Deliming chemicals are caustic. Wear appropriate protective gloves and goggles during this procedure. Never siphon deliming chemicals or solutions by mouth. This operation should only be performed by qualified and ex- perienced service personnel. IMPORTANT: DO NOT spill, splash or pour water or deliming solution into or over any internal...
- Page 17 Run at least three full brew cycles and discard all water generated. 12. Brewer is ready to use. SERVICING INSTRUCTIONS (continued) NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.
-
Page 18: Exploded Views & Parts Lists
EXPLODED VIEW & PARTS LIST 8382 PLUMBING COMPONENTS ITEM PART# 83538 8043-5 8043-13 8783-1 82681 8543-42 84132 8543-45 8810-70 83384 85609 82241 83388 85634 8043-12 86771 8043-15 8043-11 85624 8043-24 8043-10 83385 8760-3 8942-6B DESCRIPTION TUBE, FAUCET SUPPLY 10” SILICONE... - Page 19 ITEM PART# DESCRIPTION 8707-55 SWITCH, BREW MOMENTARY 120V 8718-31 INDICATOR LIGHT, GREEN 120V 8812-61 TIMER, 8 MIN 6407-15 POWER CORD, NEMA 5-15P 8552-18 TERMINAL BLOCK, 4P 51217 STRAIN RELIEF 90º CLAMP 83388 SOLENOID, BREW 120V 86280 THERMOSTAT, 199ºF 8043-30 SEAL, HEATING ELEMENT 8043-83 THERMOSTAT, HI-LIMIT 120V 8043-14...
- Page 20 END CAP, SUPPORT PLASTIC SUPPORT, ALUMINUM BLACK ANODIZED LEG ADJUSTABLE LEG, METAL FOOT, RUBBER BUSHING, SHORTY HEYCO BUTTON PLUG 7/8” DIA BOTTLE RING (Model 8382) BOTTLE RING, OASIS (Model 8382OR) LABEL BASE, BODY ASSEMBLY BASE, FRONT PANEL BASE, DOOR BASIN, BODY ASSEMBLY...
-
Page 21: Wiring Diagram
WIRING DIAGRAM... - Page 22 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN UNITED STATES OF AMERICA...
