Bloomfield 8372 Owner's Manual

Bottled water decanter coffee brewers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
p/n 75612 Rev. F
ECN-12597
Model 8372 Brewer
with optional
8900-Series
Glass Decanter
PRINTED IN UNITED STATES OF AMERICA
OWNERS MANUAL
for
BOTTLED WATER
DECANTER
COFFEE BREWERS
MODEL
8372
for
3 Gallon
and
5 Gallon
Plastic Bottles
Includes:
Installation
Operation
Use & Care
Servicing Instructions
M681 040914 cps
681

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8372 and is the answer not in the manual?

Questions and answers

Related Manuals for Bloomfield 8372

Summary of Contents for Bloomfield 8372

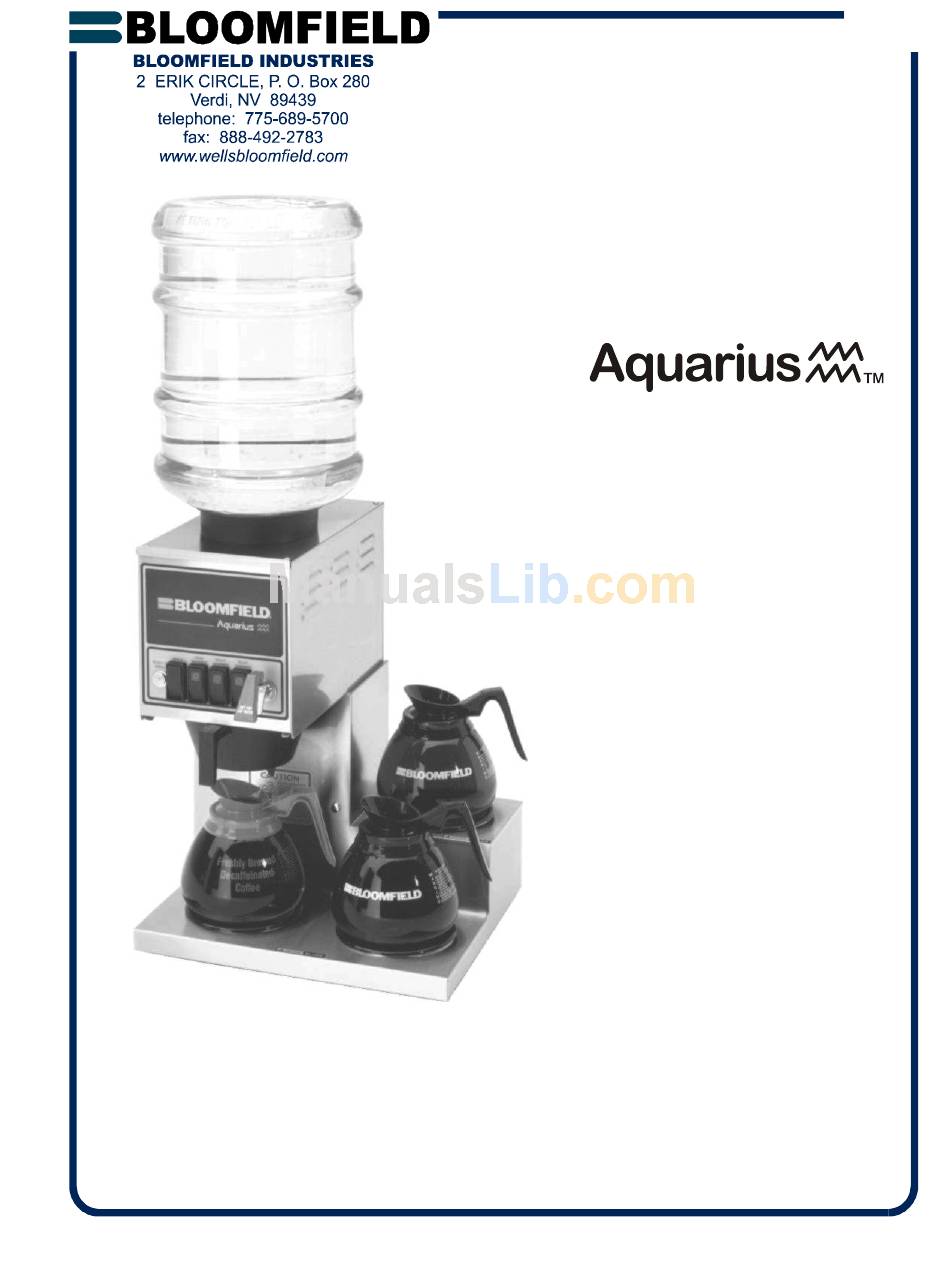

  • Page 1 75612 Rev. F ECN-12597 Model 8372 Brewer with optional 8900-Series Glass Decanter PRINTED IN UNITED STATES OF AMERICA OWNERS MANUAL BOTTLED WATER DECANTER COFFEE BREWERS MODEL 8372 3 Gallon 5 Gallon Plastic Bottles Includes: Installation Operation Use & Care...

  • Page 2: Warranty Statement

    It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies.

  • Page 3: Table Of Contents

    8372OR DECANTER BREWER 8372CA with FAUCET meets Canadian standards Thank You for purchasing this Bloomfield Industries appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.

  • Page 4: Features & Operating Controls

    FEATURES AND OPERATING CONTROLS Fig. 1 Features & Operating Controls...

  • Page 5: Precautions & General Information

    WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING Electric Shock Hazard Brewer must be plugged into a properly grounded receptacle to prevent possible shock.

  • Page 6: Installation

    Model 8372 is equipped with a cord and plug. It requires a 115 - 125 volt 20 amp circuit (50/60 Hz, 2 wire plus ground, with NEMA 5-15R or 5-20R Receptacle).

  • Page 7: Operation

    START-UP For initial start-up, or if the brewer has not been used for an extended period of time: ♦ Be sure spray disk and brew gasket are properly installed in the brew head. ♦ Install a fresh bottle of water in the bottle ring. ♦...

  • Page 8: Water Heater

    OPERATION (continued) WATER HEATER Water temperature is sensed by a thermobulb inserted into the water tank. This temperature signal is fed to the thermostat, which controls line power to the heating element. The setpoint temperature is adjustable at the thermostat. The element is protected from over- temperature by a hi-limit thermostat.

  • Page 9: Brewing Coffee

    BREWING COFFEE PREPARATION Place one (1) genuine Bloomfield paper filter in the brew chamber. Add a pre-measured amount of fresh coffee grounds. Gently shake the brew chamber to level the bed of grounds. Slide the brew chamber into place under the brew head.

  • Page 10: Cleaning Instructions

    CLEANING INSTRUCTIONS CAUTION: Burn Hazard Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns. CAUTION: Electric Shock Hazard Do not submerge or immerse brewer in water. IMPORTANT: DO NOT use steel wool, sharp objects, or caustic, abrasive or chlorinated cleansers to clean the brewer.
  • Page 11 PROCEDURE: Clean and Sanitize Basin Pan PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: Monthly TOOLS: #2 Phillips Head Screwdriver Mild Detergent, Food Equipment Sanitizer Clean Soft Cloth or Sponge 1. Disconnect brewer from electric power. Allow brewer to cool before cleaning. 2.

  • Page 12: Troubleshooting Suggestions

    Repair/replace as needed Replace water bottle Adjust amount of grounds Adjust timer Use one (1) genuine Bloomfield filter per brew Thoroughly clean brew chamber Adjust coffee amount and grind Check/reinstall gasket on INSIDE of brew head...

  • Page 13: Servicing Instructions

    ACCESS PANELS Top panel is held by four screws at the corners. Front panel is held by two clips under each warmer plate, three screws at the bottom and a retaining lip at the top. Top rear panel is held by two clips under the warmer plate. Fig.

  • Page 14: Timer Adjustment

    IMPORTANT: Adjust timer with a full water bottle installed in the bottle ring. IMPORTANT: Before setting assembly into tank, make sure tank lid gasket is properly seated on flange of lid. DO NOT OVER-TIGHTEN. IMPORTANT: When removing tank lid assembly, be careful to not damage or kink thermostat capillary tube.
  • Page 15 REPLACE HEATING ELEMENT Remove tank lid assembly per above. Remove two hex nuts holding element to cover. Pull element from mounting holes. Reassemble in reverse order. REPLACE WARMER ELEMENT Remove warmer plate by turning counter-clockwise. Lift element from bracket. Disconnect wiring. Reassemble in reverse order.

  • Page 16: Delime Water Tank

    SERVICING INSTRUCTIONS (continued) CAUTION - CHEMICAL BURN HAZARD Deliming chemicals are caustic. Wear appropriate protective gloves and goggles during this procedure. Never siphon deliming chemicals or solutions by mouth. This operation should only be performed by qualified and ex- perienced service personnel. IMPORTANT: DO NOT spill, splash or pour water or deliming solution into or over any internal...
  • Page 17 Run at least three full brew cycles and discard all water generated. 12. Brewer is ready to use. SERVICING INSTRUCTIONS (continued) NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.

  • Page 18: Exploded Views & Parts Lists

    EXPLODED VIEW & PARTS LIST 8372 PLUMBING COMPONENTS ITEM PART# 83538 8043-5 8043-13 8783-1 82681 8543-42 84132 8543-45 8810-70 83384 85609 82241 83388 85634 8043-12 86771 8043-15 8043-11 85587 8043-24 8043-10 83385 8760-3 8942-6B DESCRIPTION TUBE, FAUCET SUPPLY 10” SILICONE...
  • Page 19 ITEM PART# DESCRIPTION 8572-18 WARMER, 120V 100W 85647 SWITCH, WARMER ON/OFF 120V 85646 SWITCH, BREW MOMENTARY 120V 8718-31 INDICATOR LIGHT, GREEN 120V 8812-61 TIMER, 8 MIN 6407-15 POWER CORD, NEMA 5-15P 35-210 STRAIN RELIEF 83388 SOLENOID, BREW 120V 86280 THERMOSTAT, 199ºF 8043-30 SEAL, HEATING ELEMENT 8043-83...
  • Page 20 BASE, BOTTOM PANEL w/ACCESS HOLES BASIN, BODY ASSEMBLY BASIN, REAR PANEL BASIN, TOP COVER(Model 8372) BASIN, TOP COVER(Model 8372OR) RETAINER, BOTTLE RING (Model 8372) RETAINER, BOTTLE RING (Model 8372OR) BASIN PAN CLIP, RETAINING BASIN PAN SEAL GASKET BASIN PAN SEAL...

  • Page 21: Wiring Diagram

    WIRING DIAGRAM...
  • Page 22 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN UNITED STATES OF AMERICA...
