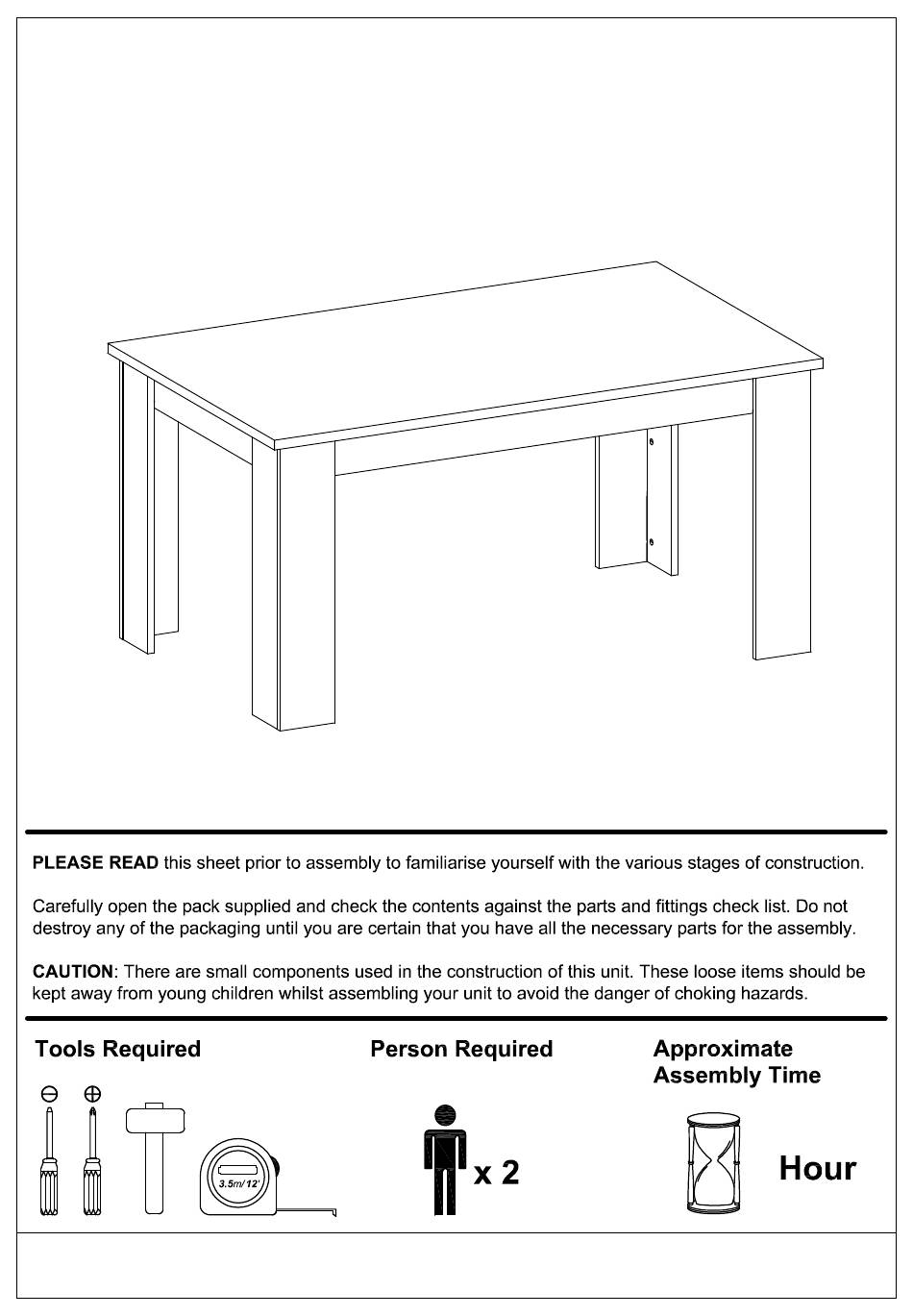

LANCASTER - DINING TABLE 1200mm ASSEMBLY INSTRUCTIONS
Thank you for purchasing the DINING TABLE.
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)1200 x (D) 900 x (H)750mm
Colour : Bianco Oak / Lancaster Grey
1
Batch No : PO# 3899
Page
Page 1 of 11
V1 9/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW LANCASTER DINING TABLE 1200mm
Summary of Contents for GFW LANCASTER DINING TABLE 1200mm
- Page 1 LANCASTER - DINING TABLE 1200mm ASSEMBLY INSTRUCTIONS Thank you for purchasing the DINING TABLE. Please read the instructions carefully to ensure safe operation of the product. Size: (W)1200 x (D) 900 x (H)750mm Colour : Bianco Oak / Lancaster Grey Batch No : PO# 3899 Page Page 1 of 11...
- Page 2 This product is intended for a maximum weight of 30kgs Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
- Page 3 Leg Panel Big (1) (18 x 150 x 725mm) Back Panel (18 x 100 x 1378mm) Leg Panel Big (2) (18 x 150 x 725mm) Side Panel (18 x 100 x 830mm Leg Panel Small (1) (18 x 132 x 725mm) Center Panel (18 x 100 x 794mm) Leg Panel Small (2) (18 x 132 x 725mm) Top Panel (25 x 900 x 1500mm)
- Page 4 D6.3 x 40mm D8 x 30mm M6 x 30mm M5 x 29mm Unitar Screw Wooden Dowel JCBC Screw Minifix Bolt 5 x 8 x 13.5mm D15 x 12mm Nail Leg Minifix Cam (D-19mm) Allen Key Page 4 of 11 V1 9/18...
- Page 5 STEP 1 Parts Required Qty Parts Required Qty Panel (D) Panel (F) Panel (C) Panel (H) Panel (E) Page 5 of 11 V1 9/18...
- Page 6 STEP 2 28 x Parts Required Qty Parts Required Qty Panel (A) Panel (F) Panel (B) Panel (I) Panel (E) STEP 3 Parts Required Qty Panel (E) Panel (F) Panel (H) Page 6 of 11 V1 9/18...
- Page 7 STEP 4 Parts Required Qty Panel (G) STEP 5 12 x Parts Required Qty Panel (A) Panel (B) Panel (C) Panel (D) Page 7 of 11 V1 9/18...
- Page 8 STEP 6 16 x 12 x STEP 7 16 x Page 8 of 11 V1 9/18...
- Page 9 STEP 8 12 x STEP 9 Page 9 of 11 V1 9/18...
- Page 10 STEP 10 14 x Parts Required Qty Panel (I) Page 10 of 11 V1 9/18...
- Page 11 Your LANCASTER DINING TABLE 1200mm is now completely assembled Page 11 of 11 V1 9/18...
