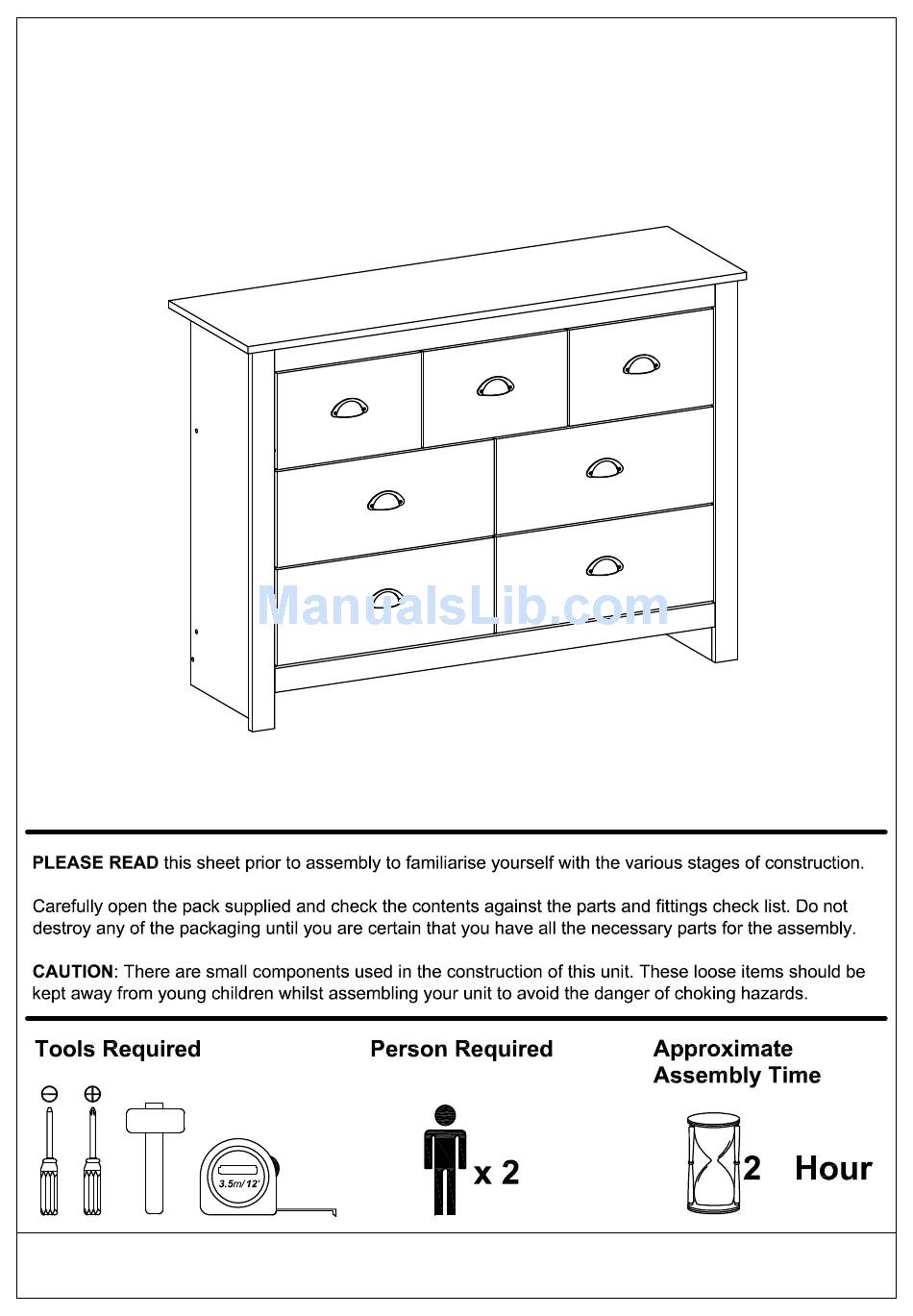

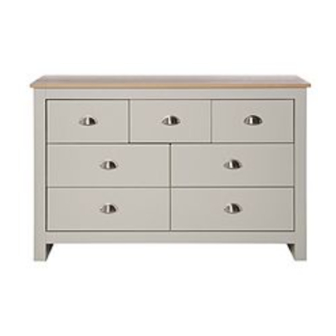

LANCASTER - 3 + 4 DRAWER CHEST ASSEMBLY INSTRUCTIONS
Thank you for purchasing the 3 + 4 DRAWER CHEST.
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)
1
1
1
7
x (D)
3
5
0
x (H)810mm
Colour : Bianco Oak / Lancaster Grey
1/2
Batch No : PO# 3490
Page
Page 1 of 16
V1 4/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW LANCASTER 3 PLUS 4 DRAWER CHEST
Summary of Contents for GFW LANCASTER 3 PLUS 4 DRAWER CHEST
- Page 1 LANCASTER - 3 + 4 DRAWER CHEST ASSEMBLY INSTRUCTIONS Thank you for purchasing the 3 + 4 DRAWER CHEST. Please read the instructions carefully to ensure safe operation of the product. Size: (W) x (D) x (H)810mm Colour : Bianco Oak / Lancaster Grey Batch No : PO# 3490 Page Page 1 of 16...
- Page 2 This product is intended for a maximum weight of 35kgs and drawer load capacity 5kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
- Page 3 Side Panel (L) (15 x 325 x 795mm) Drawer Front (L) (15 x 201 x 323) Side Panel (R) (15 x 325 x 795mm) Drawer Front (M) (15 x 201 x 323) Top Panel (15 x 350 x 1117mm) Drawer Front (R) (15 x 201 x 323) Centre Panel (Top) (15 x 324 x 250mm) Drawer Front Big (L) (15 x 201 x 487) Centre Panel (Bottom) (15 x 324 x 405mm)
- Page 4 D6.3 x 40mm M4.7 x 38mm D8 x 30mm M5 x 29mm Unitar Screw CSK Screw Wooden Dowel Minifix Bolt M6 x 1/2mm M3.5 x 15mm D15 x 12mm (26mm) 5 x 8 x 13.5mm D6 x 9mm Nail Pin Tapping Csk Screw Nail Leg...
- Page 5 STEP 1 72 x Parts Required Qty Panel ( I ) Panel (J) Parts Required Qty Parts Required Qty Panel (M) Panel (A) Panel (F ) Panel (T) Panel (B) Panel (G) Panel (U) Panel (D) Panel (H) Panel (X) Page 5 of 16 V1 4/18...
- Page 6 STEP 2 25 x L- Mounting Bracket + Wall Plug + M4 x 38mm 1 Sets Parts Required Qty Parts Required Qty Parts Required Qty Panel (C) Panel (K) Panel (O) Panel (R) Panel (L ) Panel (P) Panel (S) Panel (N) Panel (Q) STEP 3...
-
Page 7: Panel (D)
STEP 4 Parts Required Qty Panel (A) Panel (B) Panel (K) Panel (L ) STEP 5 Parts Required Qty Panel (D) Panel (F) Panel (G) Page 7 of 16 V1 4/18... - Page 8 STEP 6 Parts Required Qty Parts Required Qt Panel (F) Panel (E) STEP 7 Parts Required Qty Parts Required Qty Panel (H) Panel ( I ) Page 8 of 16 V1 4/18...
-
Page 9: Panel (N)
STEP 8 Parts Required Qty Panel (N) Panel (J) STEP 9 Parts Required Qty Panel (A) Page 9 of 16 V1 4/18... - Page 10 STEP 10 Parts Required Qty Parts Required Qty Panel (B) STEP 11 10 x Parts Required Qty Panel (C) Page 10 of 16 V1 4/18...
-
Page 11: Panel (T)
STEP 12 54 x Parts Required Qty Parts Required Qty Panel (F) Panel (Y) STEP 13 28 x Parts Required Qty Parts Required Qt Panel (F) Panel (T) Panel (U) Panel (V) Panel (W) Page 11 of 16 V1 4/18... -
Page 12: Panel (X)
STEP 14 Parts Required Qty Parts Required Qty Panel (F) Panel (X) Panel (Z) Panel (Z1) STEP 15 14 x Parts Required Qty Parts Required Qt Panel (O) Panel (P) Panel (Q) Panel (R) Panel (S) Page 12 of 16 V1 4/18... - Page 13 STEP 16 14 x STEP 17 (DL) 28 x (DL) (DL) (DR) (DR) (DR) (DL) (DL) (DR) (DR) a P e g 13 of 16 V1 4/18...
- Page 14 STEP 18 10 x Page 14 of 16 V1 4/18...
- Page 15 STEP 19 FITTING OF L MOUNTING BRACKET hole Hole wall NOTE : The wall fixing plug supplied with this product is suitable for solid and brick walls . L- Mounting Bracket + For hollow and stud type walls fixing devices Wall Plug + M4 x 38mm suitable for those type of walls must be obtained 1 Sets...
- Page 16 Your LANCASTER 3+4 DRAWER CHEST is now completely assembled Page 16 of 16 V1 4/18...
