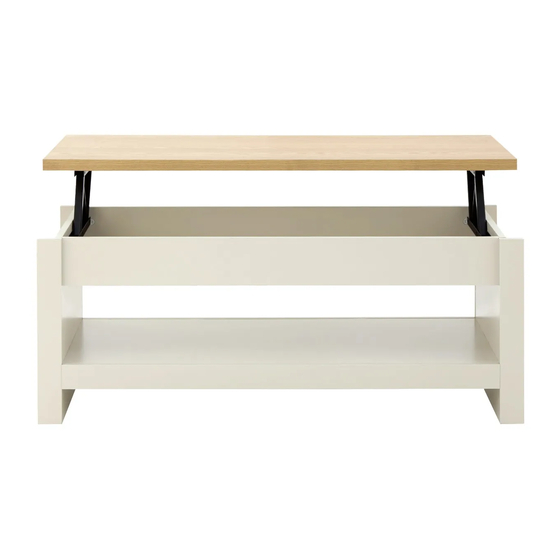

LANCASTER - LIFT UP COFFEE TABLE ASSEMBLY INSTRUCTIONS
LIFT UP COFFEE TABLE.
T
a h
k n
o y
u
f
r o
p
r u
h c
s a
n i
g
h t
e
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)1050 x (D) 500 x (H)390mm
Colour : Bianco Oak / Light Grey
1
Batch No : PO# 3900
Page
Page 1 of 11
V1 9/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW LANCASTER LIFT UP COFFEE TABLE
Summary of Contents for GFW LANCASTER LIFT UP COFFEE TABLE
- Page 1 LANCASTER - LIFT UP COFFEE TABLE ASSEMBLY INSTRUCTIONS LIFT UP COFFEE TABLE. Please read the instructions carefully to ensure safe operation of the product. Size: (W)1050 x (D) 500 x (H)390mm Colour : Bianco Oak / Light Grey Batch No : PO# 3900 Page Page 1 of 11 V1 9/18...

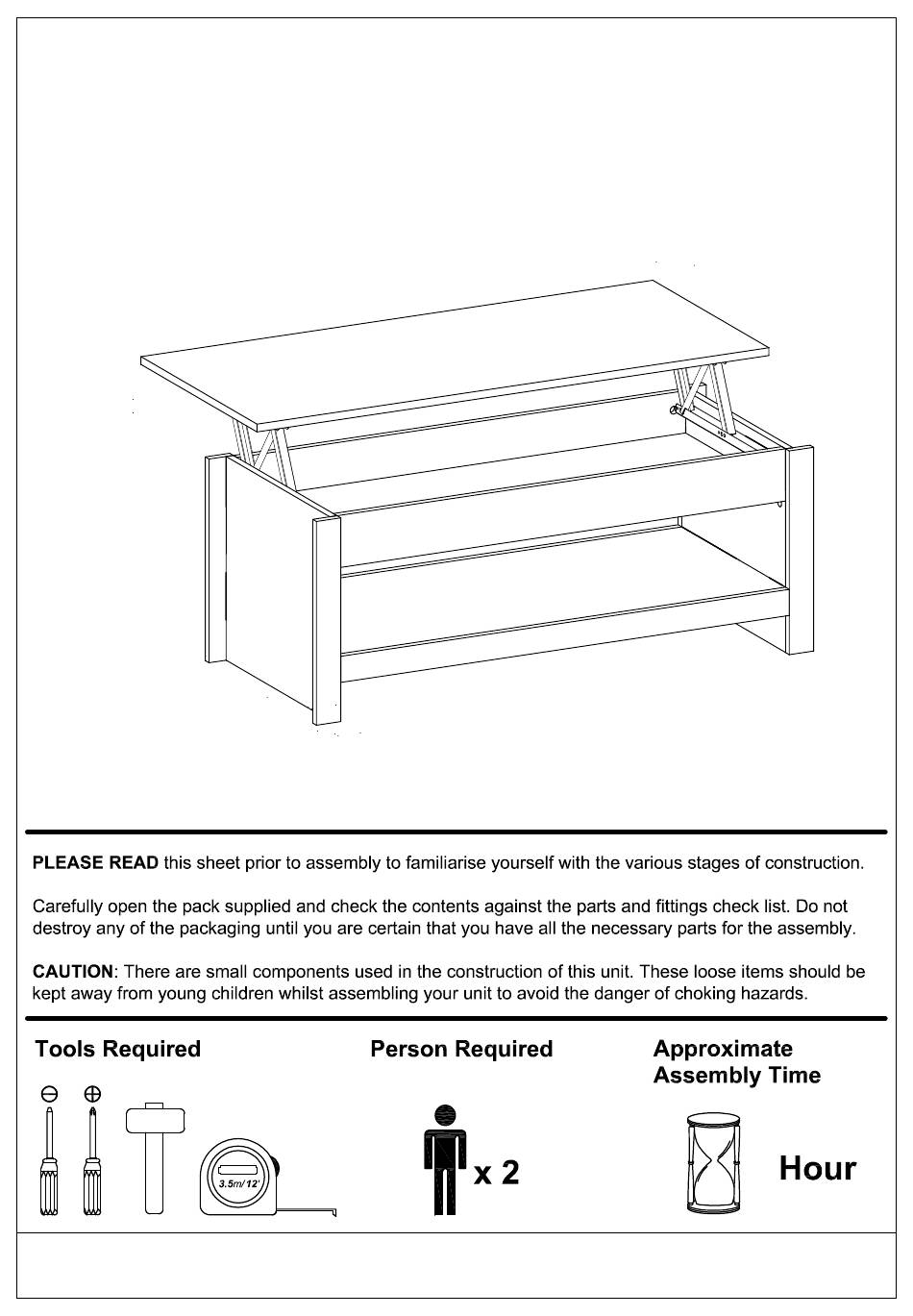

- Page 2 The Product is intended for a maximum load of 15kg with the Top in the closed Position . It is recommended that any heavy items over 5kg removed from the top before sliding open to maintain the stability of the table . The top compartment and bottom Shelf are designed to hold evenly distributed loads upto a maximum of 10kg .
- Page 3 Side Panel (L) (15 x 450 x 365mm) Front Panel (L) (15 x 50 x 365mm) Side Panel (R) (15 x 450 x 365mm) Front Panel (R) (15 x 50 x 3365mm) Top Panel (25 x 450 x 1050mm) Support Bar (15 x 80 x 420mm) Bottom Panel (15 x 450 x 920mm) Center panel (2.5 x 929 x 429mm) Front Bar (15 x 100 x 920mm)
- Page 4 D8 x 30mm M5 x 29mm M3.5 x 15mm Wooden Dowel Minifix Bolt Csk Screw 5 x 8 x 13.5mm D15 x 12mm Nail Leg Minifix Cam (D-19mm) Allen Key Round Sticker Page 4 of 11 V1 9/18...
- Page 5 STEP 1 18 x Parts Required Qty Parts Required Qty Panel (A) Panel (B) Panel (E) Panel (D) Panel ( I ) Page 5 of 11 V1 9/18...
- Page 6 STEP 2 26 x Parts Required Qty Panel (E) Parts Required Qty Panel (F) Panel (A) Panel (G) Panel (B) Panel (H) STEP 3 Parts Required Qty Panel (A) Panel (B) Panel (F) Panel (G) Page 6 of 11 V1 9/18...
- Page 7 STEP 4 Parts Required Qty Panel (F) Panel (D) STEP 5 Parts Required Qty Panel (E) Panel (I) Page 7 of 11 V1 9/18...
- Page 8 STEP 6 STEP 7 Parts Required Qty Panel (Z) Page 8 of 11 V1 9/18...
- Page 9 STEP 8 STEP 9 Page 9 of 11 V1 9/18...
- Page 10 STEP 10 Parts Required Qty Panel (C) STEP 11 Page 10 of 11 V1 9/18...
- Page 11 Your LANCASTER LIFT UP COFFEE TABLE is now completely assembled Page 11 of 11 V1 9/18...
