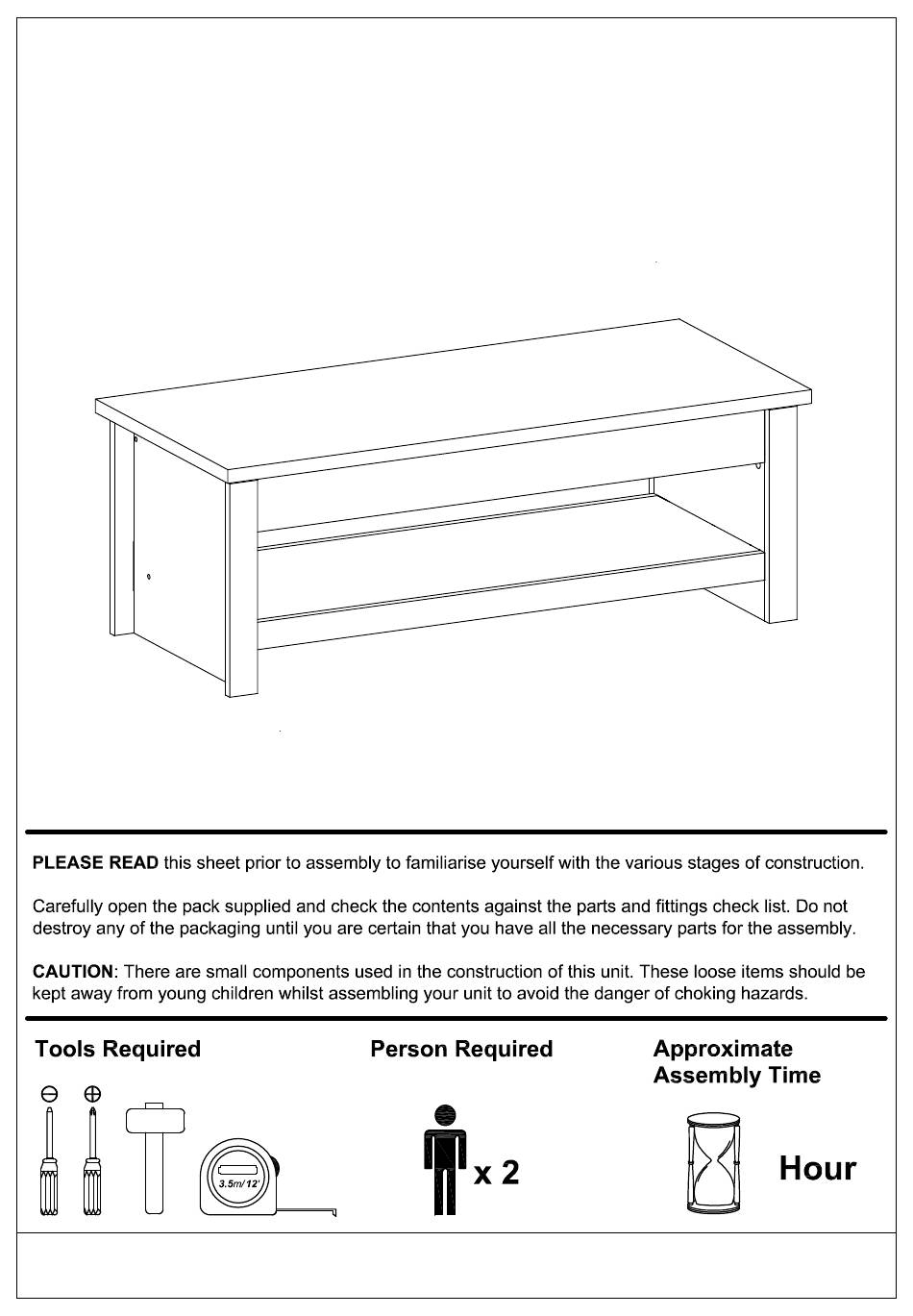

LANCASTER - SLIDING COFFEE TABLE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the SLIDING COFFEE TABLE.
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)1050 x (D) 470 x (H)415mm
Colour : Bianco Oak / Lancaster Grey
1
Batch No : PO# 3900
Page
Page 1 of 11
V1 9/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW LANCASTER
Summary of Contents for GFW LANCASTER
- Page 1 LANCASTER - SLIDING COFFEE TABLE ASSEMBLY INSTRUCTIONS Thank you for purchasing the SLIDING COFFEE TABLE. Please read the instructions carefully to ensure safe operation of the product. Size: (W)1050 x (D) 470 x (H)415mm Colour : Bianco Oak / Lancaster Grey...
- Page 2 The Product is intended for a maximum load of 15kg with the Top in the closed Position . It is recommended that any heavy items over 5kg removed from the top before sliding open to maintain the stability of the table . The top compartment and bottom Shelf are designed to hold evenly distributed loads upto a maximum of 10kg .
- Page 3 Side Panel (L) (15 x 395 x 390mm) Front Panel (L) (15 x 50 x 390mm) Side Panel (R) (15 x 395 x 390mm) Front Panel (R) (15 x 50 x 390mm) Top Panel (25 x 470 x 1050mm) Support Bar (15 x 60 x 365mm) Bottom Panel (15 x 365 x 920mm) Support Bar (15 x 60 x 365mm) Front Bar (15 x 100 x 920mm)
- Page 4 D6.3 x 40mm D8 x 30mm M5 x 29mm Unitar Screw Wooden Dowel Minifix Bolt M3.5 x 15mm 5 x 8 x 13.5mm D15 x 12mm Csk Screw Nail Leg Minifix Cam 1sets 400mm (D-19mm) Round Sticker Allen Key Extention Drawer Slide (2way) Page 4 of 11 V1 9/18...
- Page 5 STEP 1 28 x Parts Required Qty Parts Required Qty Panel (A) Panel (E) Panel (B) Panel ( I ) Panel (D) Panel (J) Panel (K) Page 5 of 11 V1 9/18...
- Page 6 STEP 2 18 x Parts Required Qty Parts Required Qty Panel (E) Panel (G) Panel (F) Panel (H) STEP 3 14 x Parts Required Qty Panel (A) Panel (B) Panel (D) Panel (F) Panel (G) Panel (H) Page 6 of 11 V1 9/18...
- Page 7 STEP 4 Parts Required Qty Panel (E) Panel (I) Panel (J) Panel (K) STEP 5 Parts Required Qty Panel (B) Page 7 of 11 V1 9/18...
- Page 8 STEP 6 Parts Required Qty Panel (Z) STEP 7 Parts Required Qty Panel (D) Page 8 of 11 V1 9/18...
- Page 9 STEP 8 Parts Required Qty Panel (A) STEP 9 1 sets Panel (I / J) Page 9 of 11 V1 9/18...
- Page 10 STEP 10 Parts Required Qty Panel (C) STEP 11 16 x *Slide top to opposite side Page 10 of 11 V1 9/18...
- Page 11 Your LANCASTER SLIDING COFFEE TABLE is now completely assembled Page 11 of 11 V1 9/18...
