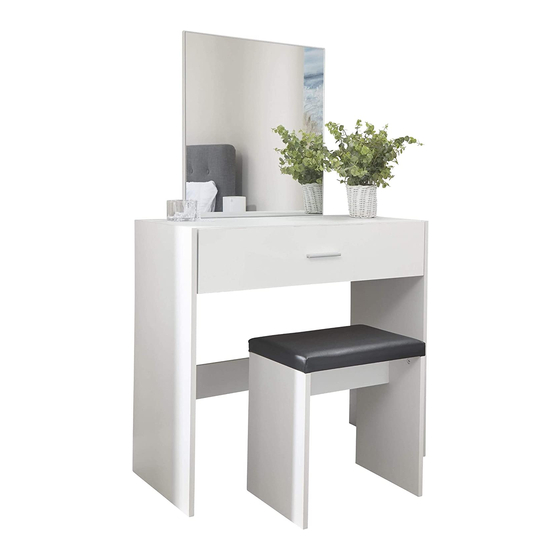

GFW Ottawa Dressing Table Stool Set Assembly Instructions Manual

Dressing table size 82 x 39 x 132 cm wdh, stool size 40 x 29.5 x 44.5 cm wdh, colours available white, oak, black or walnut
Hide thumbs

Advertisement

Quick Links

Download this manual
OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Ottawa Dressing Table & Stool set.
Please read the instructions carefully to ensure safe operation of this product.
Dressing Table Size: 82 x 39
Stool Size:
Colours available:
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.

Tools Required

x 132 cm (WDH)
40 x 29.5 x 44.5 cm (WDH)
White, Oak, Black or Walnut
Number of people
x1
Batch No. 250417
Page 1 of 12
1 Hour
Set Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ottawa Dressing Table Stool Set and is the answer not in the manual?

Questions and answers

Related Manuals for GFW Ottawa Dressing Table Stool Set

Summary of Contents for GFW Ottawa Dressing Table Stool Set

  • Page 1: Tools Required

    OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS Thank you for purchasing the Ottawa Dressing Table & Stool set. Please read the instructions carefully to ensure safe operation of this product. Dressing Table Size: 82 x 39 x 132 cm (WDH) Stool Size: 40 x 29.5 x 44.5 cm (WDH) Colours available:...

  • Page 2: Care Information

    OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to hold 10 Kg spread evenly over the whole unit. Do not exceed this weight. We recommend that this unit is assembled in the room intended for use. When you are ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly.

  • Page 3: General Hints & Tips

    OTTAWA DRESSING TABLE_STOOL SET - ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from children. General Hints &...
  • Page 4 OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS All parts are packed in one carton Description: Top Panel Description: LH Side Panel Description: RH Side Panel Qty: 1 Qty: 1 Qty: 1 Size: 790 x 373 x 15 mm Size: 750 x 390 x 15 mm Size: 750 x 390 x 15 mm Carton No: 1/1 Carton No: 1/1...
  • Page 5 OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS Fittings (to scale) Code Item Quantity Cam Bolt (35mm overall) Cam Lock Dowel (8x30mm) Screw for Fitting Runner and Anti-tilt Strap (3x12mm) Bolt for Fitting Handle (M4x18mm) Screw for Fitting Mirror (3.5x28mm) Screw for Drawer Part (3.5x40mm) Fittings (not to scale)
  • Page 6 OTTAWA DRESSING TABLE-STOOL SET - ASSEMBLY INSTRUCTIONS STEP 1 For this step: Tools required Fittings required A x8 E x2 K x1 STEP 2 For this step: Tighten Tools required Fittings required B x2 C x2 Batch No. 250417 Page 6 of 12...
  • Page 7 OTTAWA DRESSING TABLE_STOOL SET - ASSEMBLY INSTRUCTIONS STEP 3 For this step: Tighten Tools required Fittings required B x6 STEP 4 For this step: Tools required Fittings required A x8 E x2 J x1 Batch No. 250417 Page 7 of 12...
  • Page 8 OTTAWA DRESSING TABLE_STOOL SET - ASSEMBLY INSTRUCTIONS STEP 5 For this step: Tools required Fittings required Tighten B x8 C x2 STEP 6 For this step: Tools required Fittings required G x4 E x1 S x1 Batch No. 250417 Page 8 of 12...
  • Page 9 OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS STEP 7 For this step: Tools required Fittings required If standing the Dressing Table close to a wall, we recommend the use of the wall strap provided (S) to avoid accidents and possible fatal injuries if the item falls or tips over. If in doubt about fixing to the wall, for instance because your wall is a cavity construction rather than a solid wall, please consult a qualified trades-person to gain help, to fix device securely.
  • Page 10 OTTAWA DRESSING TABLE_STOOL SET - ASSEMBLY INSTRUCTIONS STEP 9 For this step: Tools required Fittings required B x2 E x4 F x2 H x4 L x1 M x1 N x1 STEP 10 Batch No. 250417 Page 10 of 12...
  • Page 11 OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS STEP 11 For this step: Tools required 15 x2 Fittings required Tighten A x4 B x4 STEP 12 For this step: Tools required Fittings required A x4 Tighten B x4 C x4 Batch No.
  • Page 12 OTTAWA DRESSING TABLE _STOOL SET - ASSEMBLY INSTRUCTIONS Assembly Completed Your Ottawa Dressing Table/Stool is now comple tely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure. Keep instructions for future reference Batch No.
