Matrix A30 Troubleshooting Manual page 4

Magnetic Brake Position

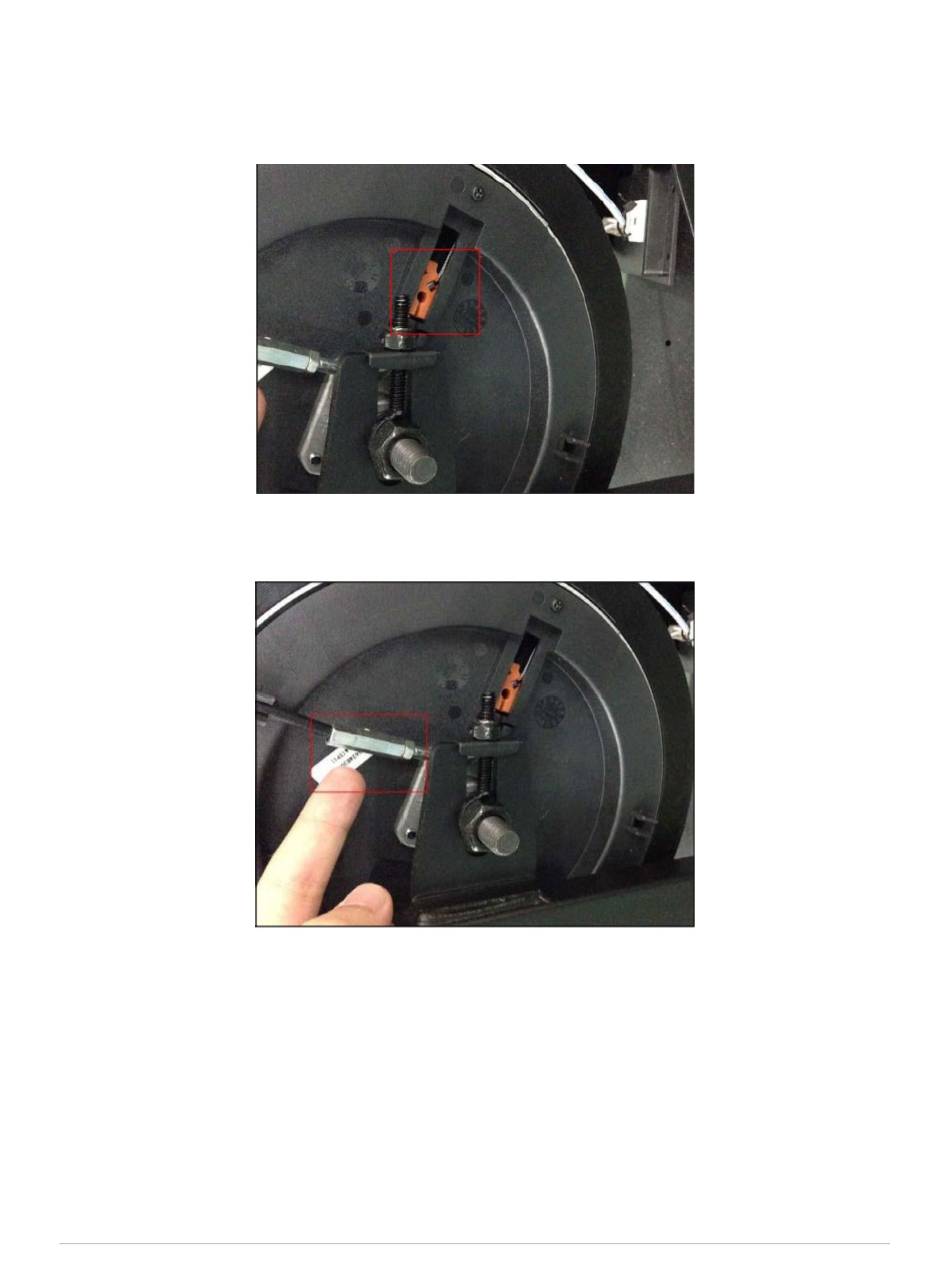

The photo below shows the gap between the orange block and the bottom of the ECB (flywheel) track.
When the unit is at the highest resistance level, the gap should be 1-2 mm.
If the gap is larger than 1-2 mm, the resistance will be higher than normal. Adjust the cable to the correct
gap range.
