WARNING
Read this Manual thoroughly. It contains important safety information.
Minimum recommended operators age: 16 years old.
Keep this Operators Manual in the boat.

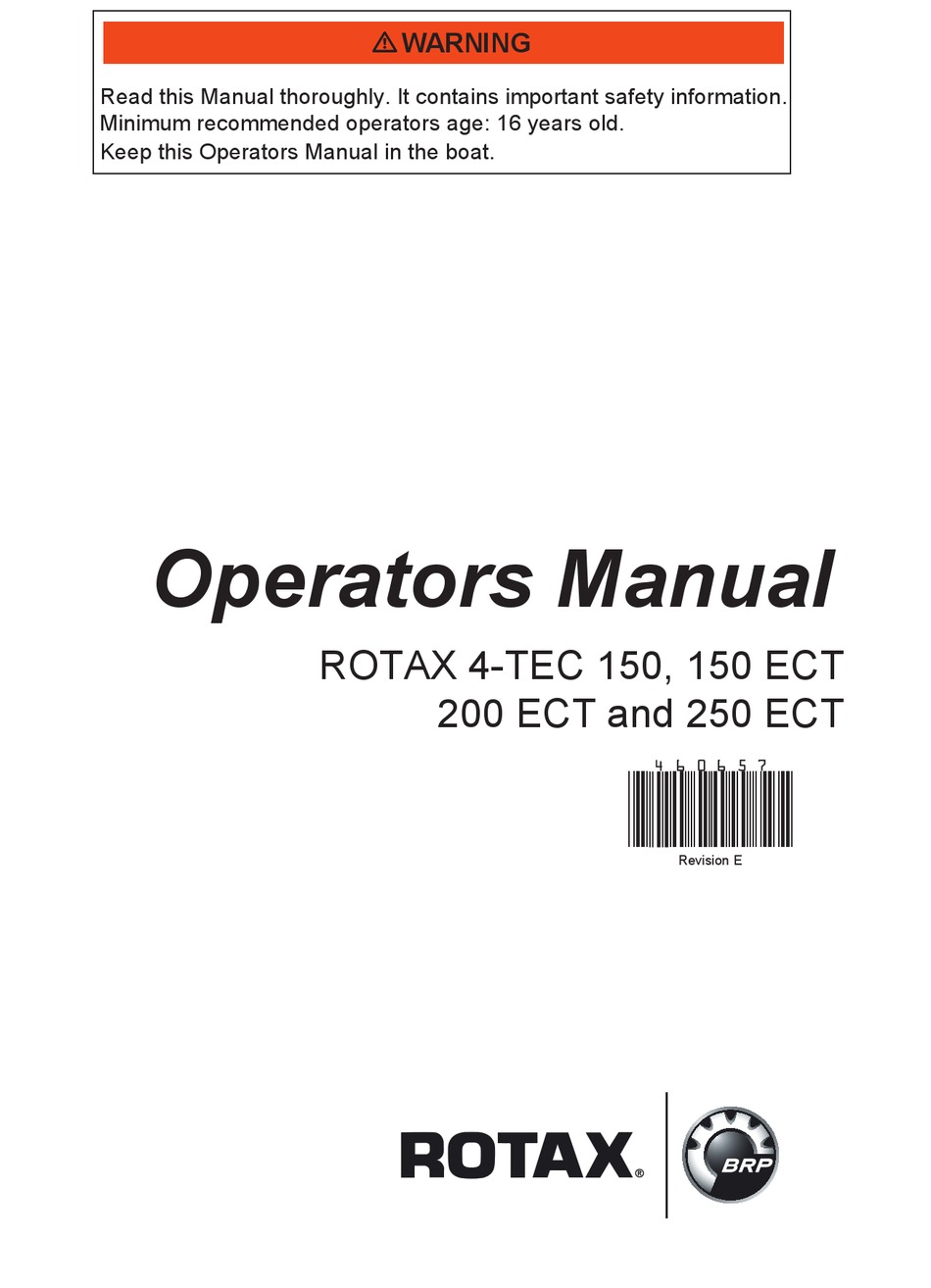

Operators Manual
ROTAX 4-TEC 150, 150 ECT
200 ECT and 250 ECT
*460657*
Revision E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rotax 4-TEC 150 and is the answer not in the manual?

Questions and answers

Related Manuals for BRP Rotax 4-TEC 150

Summary of Contents for BRP Rotax 4-TEC 150

  • Page 1 WARNING Read this Manual thoroughly. It contains important safety information. Minimum recommended operators age: 16 years old. Keep this Operators Manual in the boat. Operators Manual ROTAX 4-TEC 150, 150 ECT 200 ECT and 250 ECT *460657* Revision E...
  • Page 2  CALIFORNIA PROPOSITION 65 WARNING WARNING This product contains or emits chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    FOREWORD ........2 Know Before You Go .
  • Page 4 BREAK-IN ........56 Operation .
  • Page 5 Safety And Warranty Information...

  • Page 6: Foreword

    FOREWORD Congratulations on your purchase of a new IMPORTANT: Indicates supplementary infor- Power Pack by BRP. It is backed by the BRP mation which may be needed to fully com- limited warranty and a network of authorized plete or understand an instruction.

  • Page 7: Safety Information

    FOREWORD  SAFETY INFORMATION Do not start or operate the boat if any person is not properly seated in a seat intended for use when underway (refer to boat labels) or if Reminders Regarding Operation a person is nearby in the water. WARNING The boat's jet thrust can cause injury.

  • Page 8: Warranty Information

    • Damage resulting from removal of parts, improper repairs, service, maintenance, or modifi- cation, or use of parts or accessories not manufactured or approved by BRP, which in its reasonable judgment, are either incompatible with Product or adversely affect its operation, performance, or durability, or resulting from repairs done by a person that is not an autho- rized Dealer (as described below);...
  • Page 9 The registered owner must notify an authorized Dealer within two (2) days of the appearance of a defect. BRP is not responsible for damages caused by the use of a Product after the ap- pearance of a defect. Owner must bring Product, including any defective part therein, to Dealer...
  • Page 10 1. The former owner contacts BRP or a Dealer and gives the coordinates of the new owner; or 2. BRP or a Dealer receives a proof that the former owner agreed to the transfer of ownership, in addition to the coordinates of the owner.

  • Page 11: Emission-Related Warranty Period

    For model: Rotax 4-TEC150 ECT, Rotax 4-TEC 200 ECT and Rotax 4-TEC 250 ECT. HOURS MONTHS Exhaust emission-related components Evaporative emission- related components For model: Rotax 4-TEC 150 (these models are not allowed in the state of California) HOURS MONTHS Exhaust emission-related components Evaporative emission- related components...

  • Page 12: Components Covered

    *As related to the evaporative emission control system LIMITED APPLICABILITY As a certifying manufacturer, BRP may deny emission-related warranty claims for failures that have been caused by the owner’s or operator’s improper maintenance or use, by accidents for which the manufacturer has no responsibility, or by acts of God. For example, an emission- related warranty claim need not be honored for failures that have been directly caused by the operator’s abuse of the engine/equipment or the operator’s use of the engine/equipment in a...
  • Page 13 Rotax® Inboard Jet Propulsion Systems in the country in which the sale occurs. • If further assistance is required, please contact the affiliate of BRP where the Product was registered for warranty. RUSSIA, CENTRAL AND EASTERN...
  • Page 14 Safety And Warranty Information CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT FOR ROTAX® INBOARD JET PROPULSION SYSTEMS For California, your boat has a special environmental label required by the California Air Re- sources Board located to the port side of the hull, either to the right or left and in close proximity to the required location of the California Assigned Vessel Number.

  • Page 15: The Symbol For Cleaner Marine Engines

    Your Emission Control Warranty Rights And Obligations The California Air Resources Board and BRP US Inc. (“BRP”) are pleased to explain the emis- sion control system warranty for your Rotax® Inboard Jet Propulsion System. In California, new boat engines must be designed, built and equipped to meet the State’s stringent anti-...
  • Page 16 Also included may be hoses, belts, connectors and other emis- sion related assemblies. Where a warrantable condition exists, BRP will repair your boat engine at no cost to you in- cluding diagnosis, parts and labor provided that such work is performed by an authorized BRP dealer.

  • Page 17: Owner's Warranty Responsibilities

    As the owner of a Rotax® Inboard Jet Propulsion System, you should however be aware that BRP may deny you warranty coverage if your engine(s) or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications. You are re- sponsible for presenting your engine to an authorized BRP Dealer as soon as a problem ex- ists.

  • Page 18: Special Safety Messages

    Safety And Warranty Information SPECIAL SAFETY MESSAGES CARBON MONOXIDE AND BOATING Burning a material containing carbon produces carbon monoxide (CO), an odorless and col- orless gas. Because CO has a similar density as air, it can spread throughout an enclosed space unnoticed because you cannot see it or smell it.
  • Page 19 SPECIAL SAFETY MESSAGES  WARNING Engine exhaust fumes contain carbon monoxide (CO) which can accumulate in and around the boat (under bimini top, in cockpit, etc.). CO can be harmful or fatal if inhaled. Assure there is adequate ventilation whenever running engine(s). Boat houses, seawalls, and other boats in close proximity or confined areas can contribute to increased CO levels.
  • Page 20 Safety And Warranty Information B00061 Even with the best boat design and construction, CO may still accumulate in enclosed or con- fined areas under certain conditions. Continually observe passengers for symptoms of CO poi- soning. CO Detector It is strongly recommended that you have CO detectors installed in boats with canvas enclo- sures.

  • Page 21: Safe Boating Practices

     OATING RACTICES SAFE BOATING PRACTICES YOU are responsible for your own safety, the Do not exceed the maximum engine power safety of your passengers, and the safety of rating stated on the certification plate at- fellow boaters. tached to the boat. Observe all safety signs and warnings both in- side the boat and in the immediate boating ar- DRUGS AND ALCOHOL...

  • Page 22: Passenger Safety

    Federal regulations require that chil- to contact the state boating authorities for in- dren under 13 years of age wear a PFD when formation. BRP recommends a minimum op- the boat is underway unless they are in an en- erator age of 16 years.

  • Page 23: Fueling

    FUELING Fuel Requirements NOTICE NOTICE Never experiment with other fuels. The us of inadequate fuel can result in boat Always use fresh gasoline. Gasoline will performance deterioration and damage oxidize; the result is loss of octane, vola- to critical parts in the fuel system and tile compounds, and the production of engine components.

  • Page 24: Important On-Product Labels

    IMPORTANT ON-PRODUCT LABELS The following labels are on your engine. If missing or damaged, they can be replaced free of charge. See an authorized dealer. Please read the following labels carefully before operating your boat. IMPORTANT: The illustration indicates the approximate locations of the various labels. A dashed line indicates the label is not on the outer surface, and cover must be opened to see the label(s).

  • Page 25: Pre-Ride Inspection

    PRE-RIDE INSPECTION  PRE-RIDE INSPECTION WARNING The pre-ride inspection is very important before operating the boat. Bring all safety equipment required by local laws. Perform a pre-ride inspection before each ride to detect potential problems during operation. The pre-ride inspection can help you monitor wear and deterioration before they become a problem.
  • Page 26 Safety And Warranty Information PRE-RIDE CHECK LIST WHEN BOAT IS TRAILERED TO WATERWAY (RECOMMENDED CHECKS) SUMMARY ITEM OPERATION CHECK Fuel tank Refill. Hull and deck Inspect for damage. Jet pump water intake Inspect/clean. Check for abnormal water presence in Bilge bilge and ensure drain plug is properly secured.
  • Page 27 PRE-RIDE INSPECTION  PRE-RIDE CHECK LIST WHEN BOAT IS MOORED TO A DOCK SUMMARY ITEM OPERATION CHECK Fuel tank Refill. Check for abnormal water presence in Bilge bilge. Verify for leaks or gasoline vapor odor. Engine compartment Verify fuel system components integrity. Throttle lever Check operation.
  • Page 28 Safety And Warranty Information NOTES:...
  • Page 29 Inspections and Maintenance...

  • Page 30: Break-In Inspection

    Inspections and Maintenance BREAK-IN INSPECTION After the first 25 hours of operation, the engine should be checked by an authorized Rotax Jet Propulsion dealer, repair shop, or person of your choosing. The break-in inspection is very im- portant and must not be neglected. IMPORTANT: The break-in inspection is at the expense of the boat owner.
  • Page 31 BREAK-IN INSPECTION  REPLACE ADJUST BREAK-IN INSPECTION CHART LUBRICATE CLEAN INSPECT ENGINE Engine oil and filter  Rubber mounts  Corrosion protection  Supercharger clutch  EXHAUST SYSTEM Exhaust system fasteners, hoses and components condition.  Also inspect for leaks COOLING SYSTEM Hose and fasteners ...

  • Page 32: Maintenance Schedule

    A repair shop or person the owner’s choosing may maintain, replace, or repair emission con- trol devices and systems. These instructions do not require components or service by BRP or authorized Rotax Jet Propulsion dealers. Although an authorized Rotax Jet Propulsion dealer has an in-depth technical knowledge and tools to service the Rotax®...

  • Page 33: Rotax Jet Propulsion Periodic Maintencance Schedule

    ROTAX JET PROPULSION PERIODIC MAINTENCANCE SCHEDULE TO BE PERFORMED BY EVERY 200 HOURS OR 2 YEARS EVERY 100 HOURS OR PRE-SEASON FIRST 25 HOURS PART / TASK ENGINE Engine oil and filter R (1) Rubber mounts O, RS Corrosion protection (3) L (4) EXHAUST SYSTEM Exhaust system (including hoses, fasteners,...
  • Page 34 Inspections and Maintenance TO BE PERFORMED BY EVERY 200 HOURS OR 2 YEARS EVERY 100 HOURS OR PRE-SEASON FIRST 25 HOURS PART / TASK ELECTRICAL SYSTEM Test the engine cut-off switch and the monitoring beeper at first 50 hours and every 100 hours or once a year Spark plugs Ignition coils...

  • Page 35: Maintenance Procedures

    (friction modifiers) that may ENGINE OIL cause inappropriate slippage of the Recommended Engine Oil for Rotax 4- supercharger and eventually lead to TEC 150 and Rotax 4-TEC 150 ECT premature wear. Engines: Use XPS™ 4- STROKE SYNTH. BLEND OIL (SUMMER) (P/N 460787)
  • Page 36 Inspections and Maintenance Engine Oil Level Boat Out or In Water It is of the utmost importance to follow this NOTICE procedure in order to obtain an accurate read- ing of the engine oil level. Check level frequently and refill if neces- sary.

  • Page 37: Engine Coolant

    See an authorized Rotax Jet will contribute to protecting the environment. Propulsion dealer. Cooling system must be filled with BRP Pre- Engine Coolant Replacement mixed Coolant, P/N 460777, or with a water The coolant replacement should be per-...

  • Page 38: Ignition Coils

    Inspections and Maintenance IGNITION COILS 3) Pull rubber seal back on its seat making sure the tabs on the ignition coil and the slots in the seal properly match together. Ignition Coil Removal 4) Leave a ring of grease on top of the seal as NOTICE shown to act as a water barrier.

  • Page 39: Exhaust System

    MAINTENANCE PROCEDURES  3) Ensure the seal seats properly with top sur- 2) Connect a garden hose to the connector lo- face of engine valve cover. cated at the rear of boat on jet pump sup- port. Do not open water tap at this time. TYPICAL smr2009-032-004 TYPICAL...

  • Page 40: Boat Care

    Inspections and Maintenance BOAT CARE StepProcedure 3) To flush, start engine then immediately Post-Operation Care open the water tap. Remove the boat from the water every day to CAUTION prevent growth of marine organisms. Certain components in the engine com- NOTICE partment may be very hot.

  • Page 41: Storage

    MAINTENANCE PROCEDURES  (such as a garden hose). High pressure can sion dealer, repair shop, or person of your cause da ages to electrical or mechanical sys- choosing. tems. Intercooler Draining In coastal areas, special care should also be It is important to expel any trapped water that taken on stainless steel or chrome parts like may have accumulated from condensation in grab handles, mooring cleats, fuel cap and...
  • Page 42 Inspections and Maintenance Exhaust System and Intercooler For the installation procedure refer to the in- struction sheet provided with the kit. Protection Out of Water Flushing Expel water from the exhaust system and in- tercooler as follows: Using the flushing connectors on the jet pump supports, inject pressurized air (around 689 kPa (100 psi)) into the system until there is no more water flowing from the jet pumps.

  • Page 43: Preseason Preparation

    MAINTENANCE PROCEDURES  plugs. Simply bring the coil down to spark nition. Do not crank engine for more than 10 plug and “hook” it, then extract spark plug. seconds. 16)Ensure both engines are OFF. IMPORTANT: The ECM will allow engine cranking while inhibiting fuel injection and ig- nition.
  • Page 44 Rotax Jet Propulsion dealer be periodically obtained on other components and systems not covered in this Manual. NOTICE When component conditions seem less than satisfactory, replace using genuine BRP parts, or equivalents.
  • Page 45  Technical Information and Specifications...

  • Page 46: Technical Information

    TYPICAL B00008 EPA Emission Regulations 1. Engine Identification Number (EIN) All inboard engines by BRP are certified to the EPA as conforming to the requirements of the regulations for the control of air pollution from ENGINE EMISSIONS INFORMA- new watercraft marine spark ignition in- TION boards.
  • Page 47  ECHNICAL NFORMATION U. S. Environmental Protection Agency Certification Division Gasoline Engine Compliance Center 2000 Traverwood Drive Ann Arbor MI 48105 EPA INTERNET WEBSITE: http://www.epa.gov/otaq...

  • Page 48: Specifications

    179 kW @ 8000 RPM 250 ECT Cooling Liquid cooled. Closed system Type (see also EXHAUST SYSTEM) Use BRP Premixed Coolant, P/N 460777, or a blend of Coolant 50% ethylene-glycol antifreeze specially formulated for aluminum engines, with 50% distilled water Electrical Magneto generator output...
  • Page 49 Propulsion System Liquid cooled. Closed system Jet pump type (see also EXHAUST SYSTEM) Jet pump grease BRP Jet Pump Bearing Grease, P/N 460785 Transmission Crowned splines, direct drive Pivoting angle of direction (nozzle) 20° 90 cm (3 ft) underneath the lowest rear...
  • Page 50 Technical Information and Specifications NOTES:...
  • Page 51  Troubleshooting Guidelines...

  • Page 52: Troubleshooting Charts

    Troubleshooting Guidelines TROUBLESHOOTING CHARTS The following information is provided to help in diagnosing the probable source of simple trou- bles. You may be able to solve many of these problems rather quickly, but others may require the skills of a trained technician. In such case, consult an authorized Rotax Jet Propulsion dealer for servicing.
  • Page 53  ROUBLESHOOTING HARTS ENGINE WILL NOT START 3. Discharged battery. - Have the battery charged or replaced by an authorized Rotax Jet Propulsion dealer, repair shop, or person of your own choosing for maintenance, repair, or replacement. 4. Battery connections, corroded or loose. - Contact an authorized Rotax Jet Propulsion dealer, repair shop, or person of your own choosing for maintenance, repair, or replacement.
  • Page 54 Troubleshooting Guidelines 6. Faulty fuel pump. - Seek service from an authorized Rotax Jet Propulsion dealer, repair shop, or person of your own choosing for maintenance, repair, or replacement. Please refer to the US EPA EMISSION-RELATED WARRANTY contained herein for information about warranty claims. ENGINE MISFIRES, RUNS IRREGULARY 1.
  • Page 55  ROUBLESHOOTING HARTS ENGINE OVERHEATING OR IMPROPER OIL PRESSURE (MONITORING BEEPER EMITS A CONTINUOUS BEEP) NOTICE If beeper emits a continuous beep, stop engine as soon as possible! 1. Check oil and coolant level. - Refer to MAINTENANCE PROCEDURES. Refill if necessary. 2.
  • Page 56 Troubleshooting Guidelines 9. Water in fuel. - Siphon and replace. BOAT CANNOT REACH TOP SPEED 1. Jet pump water intake clogged. - Clean. Refer to JET PUMP WATER INTAKE AND IMPELLER CLEANING PROCEDURE in SPECIAL PROCEDURES section. 2. Damaged impeller or worn-out wear ring. - Replace.

  • Page 57: Monitoring System

    MONITORING SYSTEM GENERAL A system monitors the electronic components of the EMS (engine management system) and other components of the electrical system. When a fault occurs, it sends visual messages through the information center and/or audible signals through a beeper to inform you of a par- ticular condition.
  • Page 58 Troubleshooting Guidelines B00070 NOTICE If the monitoring beeper continuously sounds, stop engine as soon as possible.
  • Page 59 Break–In and Special Procedures...
  • Page 60 Break–In and Special Procedures BREAK-IN OPERATION ENGINE SPEED LIMITATION – 200 AND 250 MODELS ONLY NOTICE IMPORTANT: During the first seven (7) hours Carefully follow the instructions in this of operation engine speed is limited by a section. Failure to do so may reduce the break-in strategy programmed into the ECM.
  • Page 61 2. Overheating: Since the jet pump opera- Special precautions MUST be taken tion controls the flow of water to cool the when towing a BRP Rotax powered boat exhaust system, a clogged intake will in the water to prevent the exhaust sys- cause the engine to overheat and damage tem and engine from filling with water.
  • Page 62 Break–In and Special Procedures In- the-Water Towing Hose Pincher Tool Installation Locations (All Models) Rotax 4-TEC 150 ECT Rotax 4-TEC 150 1. Hose Pincher Tool, P/N 460717 1. Hose Pincher Tool, P/N 460717 Rotax 4-TEC 200 ECT Rotax 4-TEC 200 1.
  • Page 64 © 2015 Bombardier Recreational Products Inc. All rights reserved. ®, TM and the BRP logo are trademarks of Bombardier Recreational Products or its affiliates...
