IR Thermometer
Printer / Datalogger
with External Contact Probe
Model 42582
Introduction

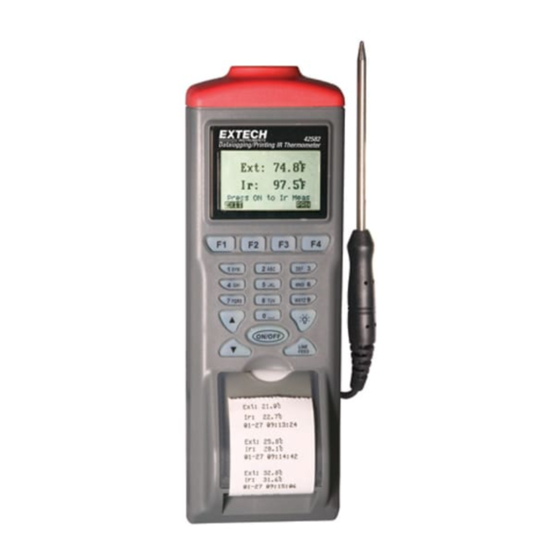

Congratulations on your purchase of the Extech 42580 IR Thermometer Printer-Datalogger.
This device measures temperature with the non-contact IR sensor and the external contact
probe. The built-in Datalogger feature stores up to 12,000 readings. The readings can be
displayed directly on the meter or can be for transferred to a PC. The Printer provides a hard
copy of stored readings. Careful use of this meter will provide years of reliable service.
Safety
•
Use caution when the laser pointer beam is on
•
Do not point the beam toward anyone's eye or allow the
beam to strike the eye from a reflective surface
•
Do not use the laser near explosive gases or in other
potentially explosive areas
F 1
F 2
F 3
F 4
O N /O
F F
L in e
F e e d
Advertisement
Table of Contents
Related Manuals for Extech Instruments 42582
Summary of Contents for Extech Instruments 42582
- Page 1 User's Guide 查询"42582"供应商 IR Thermometer Printer / Datalogger with External Contact Probe Model 42582 O N /O L in e F e e d Introduction Congratulations on your purchase of the Extech 42580 IR Thermometer Printer-Datalogger. This device measures temperature with the non-contact IR sensor and the external contact probe.
- Page 2 IR sensor and laser pointer source Meter Keypad Function softkeys F1 – F4 LCD backlight key Printer paper advance Power button and measurement ON / OFF button Line UP-DOWN arrow keys Feed Alpha-numeric keypad Model 42582 Version 6.0 Sept 2007...
-
Page 3: Operation
• ID: Press F2 to begin entering a custom ID. Use the alpha- EDIT numeric keys to create the ID. Press F4 when done. ENTER Press the F1 softkey to exit setup mode. • EXIT Model 42582 Version 6.0 Sept 2007... -
Page 4: Temperature Probe
If CALI this feature is accidentally entered, press and hold the softkey to exit the mode. A EXIT calibration procedure and probe calibration data is required to perform this procedure. Model 42582 Version 6.0 Sept 2007... - Page 5 Ir: 82.0 F 02: 07-06 05:42:55 02: 07-06 05:42:55 Ext: 82.0 F Ext: 82.0 F Ir: 82.0 F Ir: 82.0 F EXIT MEAS EDIT NEXT EXIT BACK MANUAL DATALOG SCREEN 1 MANUAL DATALOG SCREEN 2 Model 42582 Version 6.0 Sept 2007...
- Page 6 When the desired character is highlighted the meter will automatically place that character in the header. The F2 softkey is used to erase the header. The F4 softkey is used to save the header. ENTER T: 82.0l F 2abcABC ABORT BACK ENTER HEADER EDITING Model 42582 Version 6.0 Sept 2007...
-
Page 7: Log Screen
11900 Points START: Activates the datalogger CLR: Erases all readings stores in the automatic START BACK datalogger memory. AUTO DATALOGGER SETUP 2 PRN: Prints the datalogger memory record BACK: Return to the SETUP screen 1. Model 42582 Version 6.0 Sept 2007... - Page 8 If the START date is set to a date before the current date, the datalogger will start the moment the START softkey is pressed. The datalogger will not start logging if the END date is earlier than the current date. Model 42582 Version 6.0 Sept 2007...
-
Page 9: Field Of View
30 minutes for meter to adjust to extremely wide ambient temperature changes. 7. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and down motion) until the hot spot is located. Model 42582 Version 6.0 Sept 2007... -
Page 10: Specifications
33 to 122ºF (1 to 50 C); ±1.4ºF (0.8ºC) 123 to 212ºF (51 to 100 C); ±2.8ºF (1.6ºC) 213 to 302ºF (101 to 150 C); ±5.4ºF (3ºC) Resolution for displays <212 , otherwise 1 Model 42582 Version 6.0 Sept 2007... -
Page 11: Maintenance
Hint: Folding the paper into a point allows the paper to “catch” a bit easier when feeding it through the slit (see diagram). New paper rolls are available through Extech instruments and Extech distributors. NOTE: Thermal paper prints on only one side. Ensure paper is positioned properly as shown in diagram. - Page 12 0.90 to 0.94 Paper 0.70 to 0.94 Marble 0.94 Chromium Oxides 0.81 Plaster 0.80 to 0.90 Copper Oxides 0.78 Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82 Brick 0.93 to 0.96 Textiles 0.90 Model 42582 Version 6.0 Sept 2007...
- Page 13 After reading the label’s directions, load the software CD in the PC CD-ROM drive. Software Use The instructions for use are provided on the supplied program CD. Refer to the software instruction manual on the CD. Model 42582 Version 6.0 Sept 2007...
-
Page 14: Warranty
Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and 查询"42582"供应商 workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
