Extech Instruments 42280-NIST User Manual

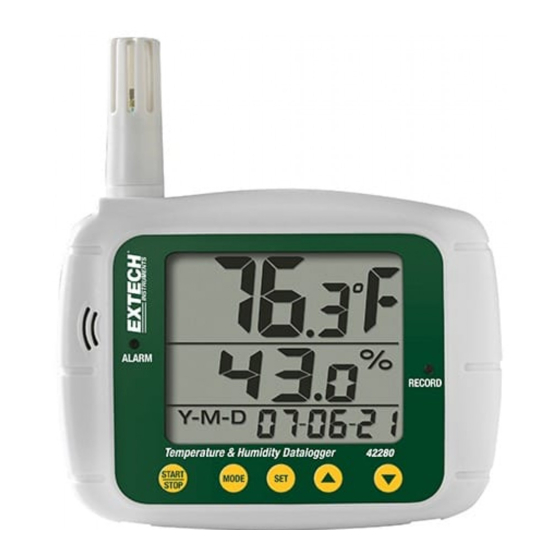

Temperature and humidity datalogger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Temperature and Humidity Datalogger
Model 42280

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42280-NIST and is the answer not in the manual?

Questions and answers

Related Manuals for Extech Instruments 42280-NIST

Summary of Contents for Extech Instruments 42280-NIST

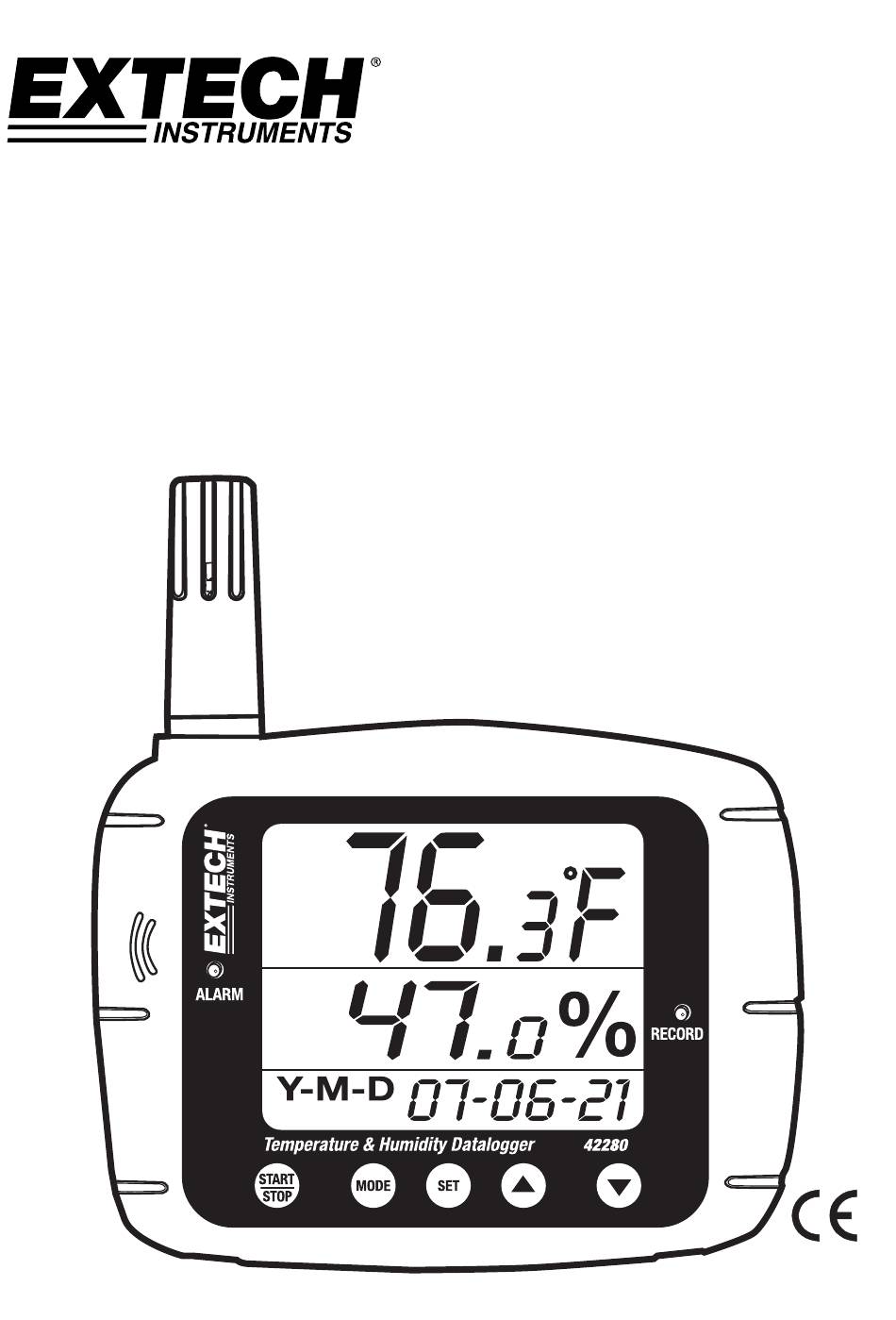

  • Page 1 User Guide Temperature and Humidity Datalogger Model 42280...

  • Page 2: Material List

    Introduction Congratulations on your purchase of the Extech 42280 Thermometer and Relative Humidity Datalogger. The 42280 is a wall-mount, tripod mount, or desktop indoor air quality monitor with an internal memory capable of storing 16,000 readings (8000 temperature readings and 8000 relative humidity readings) that can later be transferred to PC using the USB interface.
  • Page 3 Description Meter Description Humidity Sensor (internal Temperature sensor) Audible alarm (with AC adaptor power only) Visual Alarm LED Relative Humidity display Date and Time display Temperature display RECORD status LED USB port AC Adaptor jack 10. Datalogger START-STOP button 11. MODE button 12.

  • Page 4: Operation

    Operation Important Note before starting This meter relies on firm button presses to operate correctly. Be sure to press firmly and hold the button for as long as directed in the instructions. Meter Power 1. The meter is powered by four (4) ‘AA’ 1.5V batteries or the 117V AC adaptor. 2.

  • Page 5: Manual Programming

    Manual Programming The Model 42280 has several programming modes (P1, P2, P3, P4, P5, and P6). These parameters must be programmed before the Datalogger or the Alarm can be used. List of Programming Modes P1 - Number of samples to record (1, 2, 4, 8, 12, or 16 x 1000; 1=1000, 2=2000, etc.) P2 - Datalogging Start Methods (Immediate, Keypad, Scheduled, and Repeat modes) P3 –...
  • Page 6 Programming Mode P2; Datalogger Start Modes 1. Press the SET button to access the setup mode 2. Use the arrow buttons to select parameter P2 3. Press the SET button again 4. Select one of the four Start modes using the up/down arrow buttons (see list and diagram below) a.
  • Page 7 Programming Mode P3; Datalog Start Time Note that parameter P3 will only be visible if the Start MODE is set to SHCEDULE (Parameter P2 set to ‘SCh’). 1. Press the SET button to access the setup mode 2. Use the arrow buttons to select parameter P3 Y-M-D 3.
  • Page 8 Programming Mode P4; Datalogger Sample Rate 1. Press the SET button to access the setup mode 2. Use the arrow buttons to select parameter P4 3. Press the SET button again 4. Use the up/down arrow buttons to set hours 5.
  • Page 9 Programming Mode P6; Real Time Clock H:M:S 1. Press the SET button to access the setup mode 2. Use the arrow buttons to select parameter P6 3. Press the SET button again 4. Use the up/down arrow buttons to set the year 5.

  • Page 10: Data Logging

    Datalogging Starting a Datalogging session The 42280 can automatically store up to 16,000 readings (8000 temperature and 8000 humidity) for later transfer to PC. Program the controller, as discussed earlier, before Datalogging. If the Datalogger has not been configured at this point, configure as necessary. If programming is complete, continue with the next section.
  • Page 11 Connecting the Meter to a PC A USB cable is provided with the meter. One end of the cable connects to the meter’s USB jack and the other end connects to a USB port on the PC. Running the supplied PC software The supplied PC software is included on the supplied CD-ROM.

  • Page 12: Humidity Calibration

    The user can exit the calibration without finishing by pressing the START-STOP button for 2 seconds (before reaching step 6 above).  For best accuracy, perform the calibration at room temperature.  Calibration Reference bottles are available optionally through Extech Instruments distributors 42280-en-GB_V4.5 7/15...

  • Page 13: Specifications

    Specifications General Specifications Display Multi-function LCD with status LED indicators Measurement ranges Temperature: -20 to 70 C (-4 to 144 Humidity: 0 to 100% Dew Point temperature: -20 to 70 C( -4 to 144 Resolution F / % Accuracy Temp: 1.0°F (+/- 0.6°C) from 0 to 50’C (32 to 122°F) 2.0°F (+/-1.2°C) outside of this range Humidity: +/-3% from 10 to 90% (+/-5% outside of this range) Datalogger memory...

  • Page 14: Troubleshooting

    Troubleshooting Power is ON but there’s no display Check that the batteries or the AC adaptor is installed and connected properly Ensure that the START-STOP button is pressed firmly and for at least 100ms Calibration Failure Check that the batteries or the AC adaptor is installed and connected properly Ensure that the calibration bottles are tightly sealed around the meter sensor Ensure that calibration takes place at room temperature Flashing LED Indicators...
