Description
The UVD-XP4DNR(-P) camera consists of the following parts:
• The camera assembly
• Monitor output cable
• Mounting screws, wall anchors, and hex key

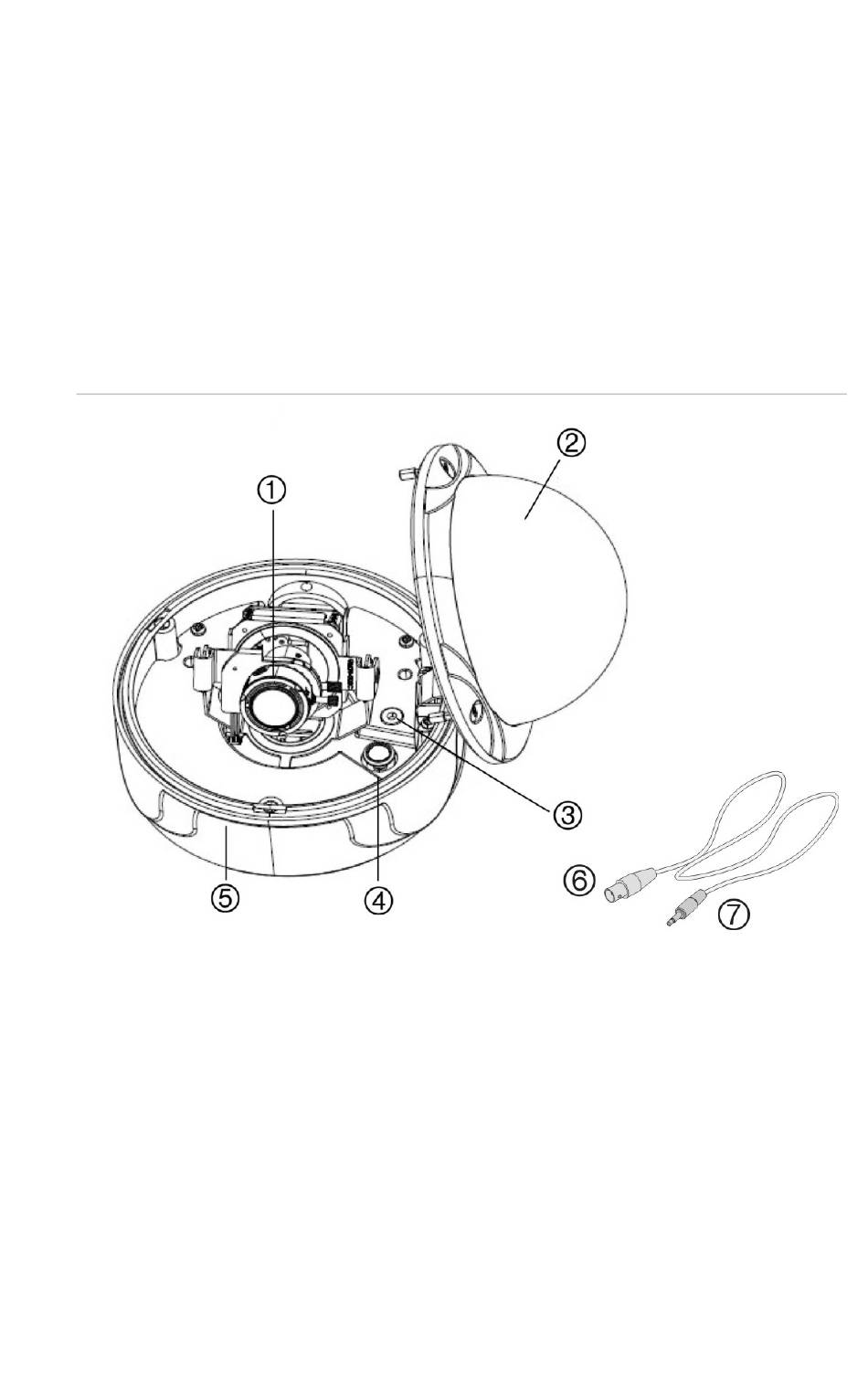

Figure 1: The camera assembly and monitor output cable
1. Lens body
2. Bubble
3. Video monitor output
4. OSD control pad
Use the video output BNC and power jack for normal system
operation. Use the monitor output cable for installation and
maintenance.
Quick Start Guide
5. Camera body
6. Monitor output BNC
7. Monitor output RCA
