Changes to product

In June 2017, the LCD on ID5000 and XR5000 indicators was discontinued in favour of an LCD which had better contrast and
brightness. Indicators with a serial number of <510,000 (a number between 0 and 510,000) will have been manufactured with
the old LCD. Indicators with a serial number of >510,000 (a number after 510,000) will have been manufactured with the new
LCD. The serial number can be found on the back of the case:
It is important that you check the details of the indicator you are servicing, as the spare parts and repair procedures
differ considerably.

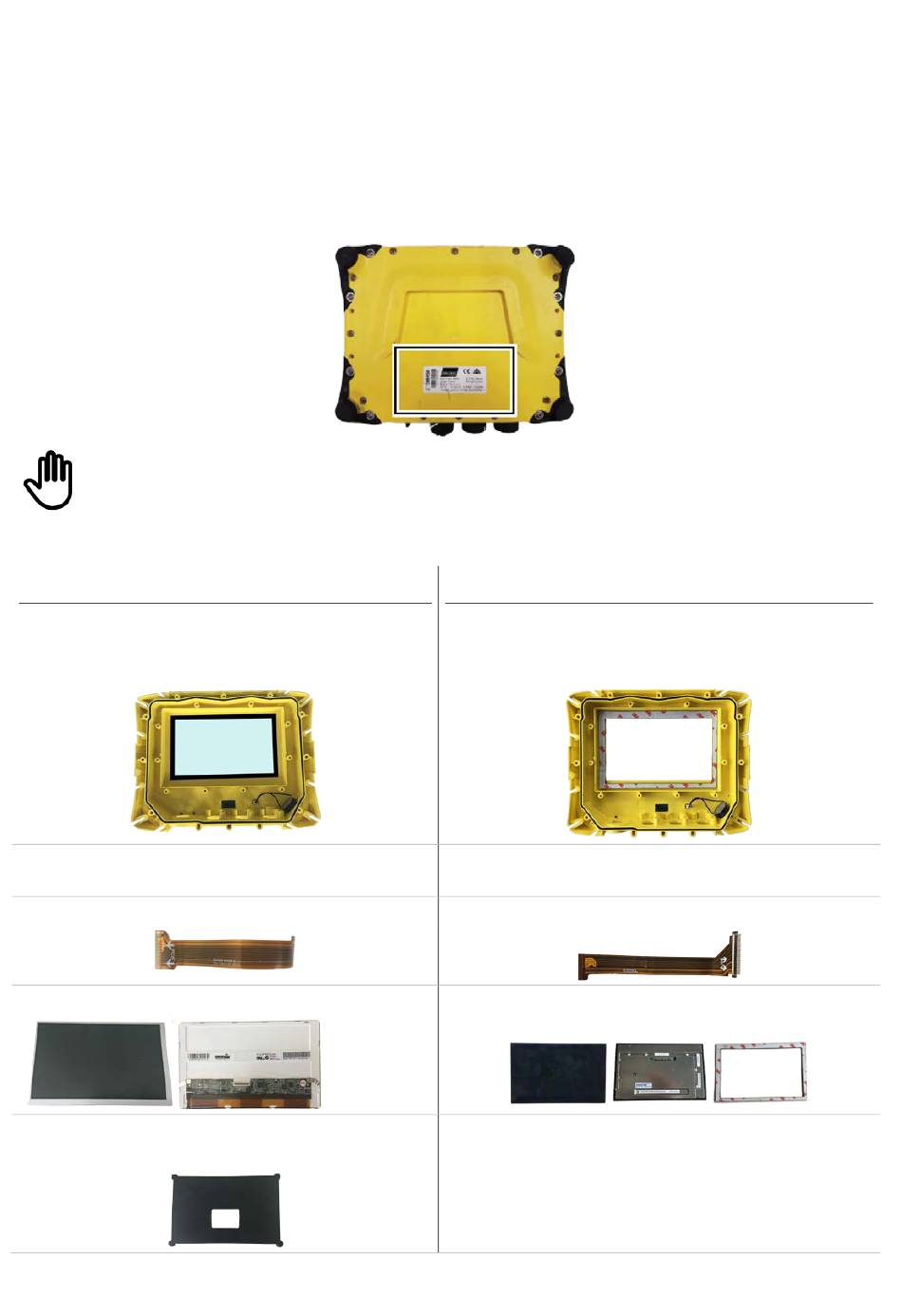

Here are the key differences between the spare parts provided for the two types of indicator:
Indicators with serial number <510,000
Case front assembly has a window. The LCD is positioned
behind the window.
The old PCA has been discontinued. The new PCA can be
used on the old model indicator.
LCD FPC does not have a connector
Different LCD.
The black, rubber gasket which surrounds the LCD is
provided as a separate part.
Issue 4, 8/2017
ID5000, XR5000 Level 1 Service Manual
Indicators with serial number >510,000
Case front has no window. The LCD is affixed directly to the
case front assembly using a sticky rectangular gasket (fitted to
the case front).
New PCA
LCD FPC has a connector on one end.
Different LCD. It comes with a sticky rectangular gasket which
is used to affix the LCD to the case front.
The LCD does not have a black, rubber gasket.
