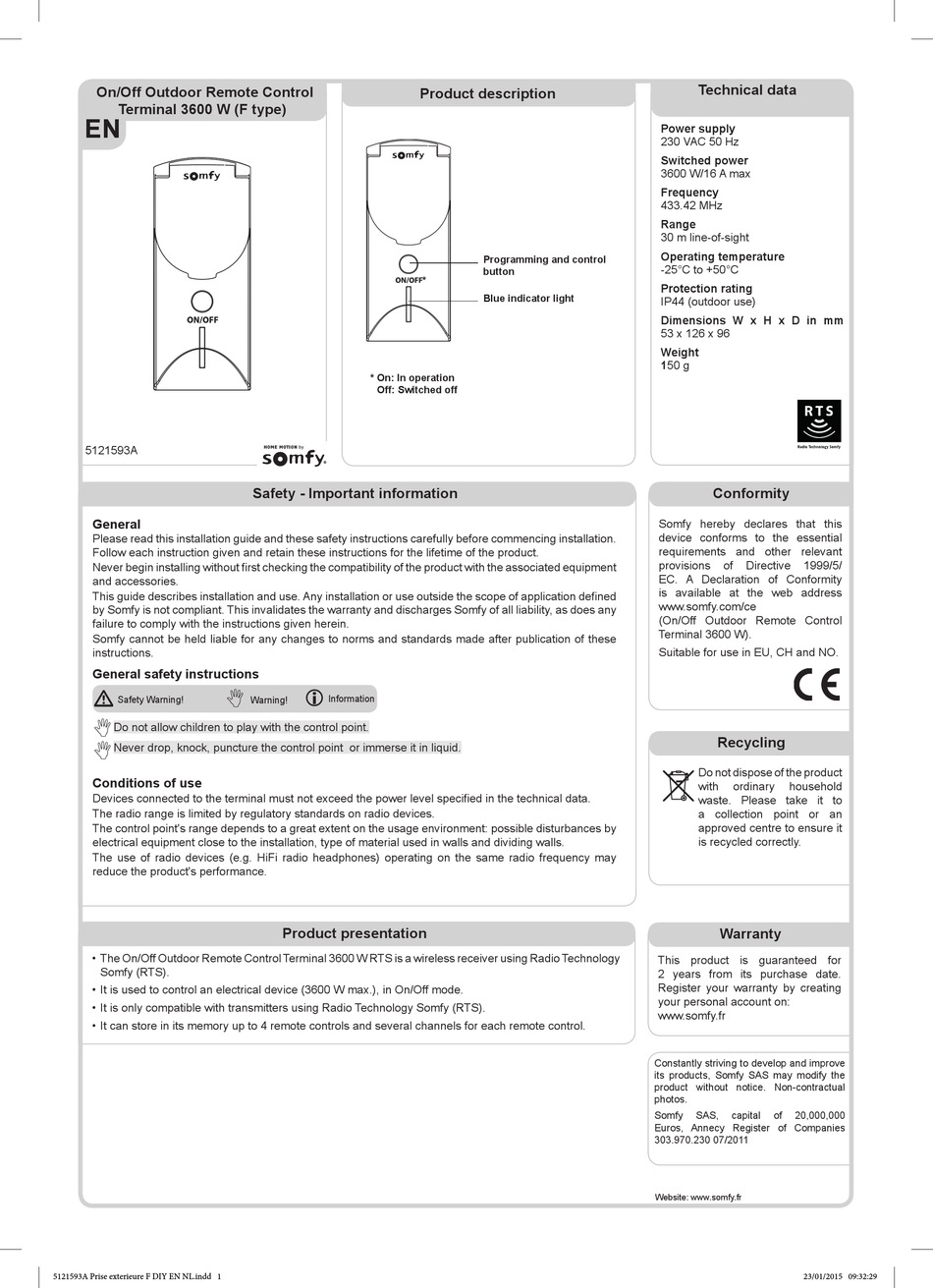

SOMFY Terminal 3600 W Installation Manual

On/Off Outdoor Remote Control
Terminal 3600 W (F type)
EN
5121593A
General
Please read this installation guide and these safety instructions carefully before commencing installation.
Follow each instruction given and retain these instructions for the lifetime of the product.
Never begin installing without first checking the compatibility of the product with the associated equipment
and accessories.
This guide describes installation and use. Any installation or use outside the scope of application defined
by Somfy is not compliant. This invalidates the warranty and discharges Somfy of all liability, as does any
failure to comply with the instructions given herein.
Somfy cannot be held liable for any changes to norms and standards made after publication of these
instructions.
General safety instructions

Safety Warning!

Do not allow children to play with the control point.
 Never drop, knock, puncture the control point or immerse it in liquid.
Conditions of use
Devices connected to the terminal must not exceed the power level specified in the technical data.
The radio range is limited by regulatory standards on radio devices.
The control point's range depends to a great extent on the usage environment: possible disturbances by
electrical equipment close to the installation, type of material used in walls and dividing walls.
The use of radio devices (e.g. HiFi radio headphones) operating on the same radio frequency may
reduce the product's performance.
• The On/Off Outdoor Remote Control Terminal 3600 W RTS is a wireless receiver using Radio Technology
Somfy (RTS).
• It is used to control an electrical device (3600 W max.), in On/Off mode.
• It is only compatible with transmitters using Radio Technology Somfy (RTS).
• It can store in its memory up to 4 remote controls and several channels for each remote control.
5121593A Prise exterieure F DIY EN NL.indd 1
Product description
*
* On: In operation
Off: Switched off
Safety - Important information
Information
Warning!
Product presentation
Programming and control
button
Blue indicator light
Somfy hereby declares that this
device conforms to the essential
requirements and other relevant
provisions
EC. A Declaration of Conformity
is available at the web address
www.somfy.com/ce
(On/Off Outdoor Remote Control
Terminal 3600 W).
Suitable for use in EU, CH and NO.
This product is guaranteed for
2 years from its purchase date.
Register your warranty by creating
your personal account on:
www.somfy.fr
Constantly striving to develop and improve
its products, Somfy SAS may modify the
product without notice. Non-contractual
photos.
Somfy
Euros, Annecy Register of Companies
303.970.230 07/2011
Website: www.somfy.fr
Technical data
Power supply
230 VAC 50 Hz
Switched power
3600 W/16 A max
Frequency
433.42 MHz
Range
30 m line-of-sight
Operating temperature
-25°C to +50°C
Protection rating
IP44 (outdoor use)
Dimensions W x H x D in mm
53 x 126 x 96
Weight
150 g
Conformity
of Directive 1999/5/
Recycling
Do not dispose of the product
with ordinary household
waste. Please take it to
a collection point or an
approved centre to ensure it
is recycled correctly.
