ETI NETCOM ADH Replacement Procedure page 7

5. Both the RS422 A and B
communications ports, as well as the
Ethernet communications port, all on
the back of the dehydrator, are
actually part of the Main Circuit Board
Assembly from inside the unit. For
that reason, disconnect any cables
which might be connected to any of
these three ports. Refer to Figure 4.
It is not necessary to remove either
the 15-pin Alarm Relay cable or the 9-
pin RS232 communications cable
from the back of the unit.

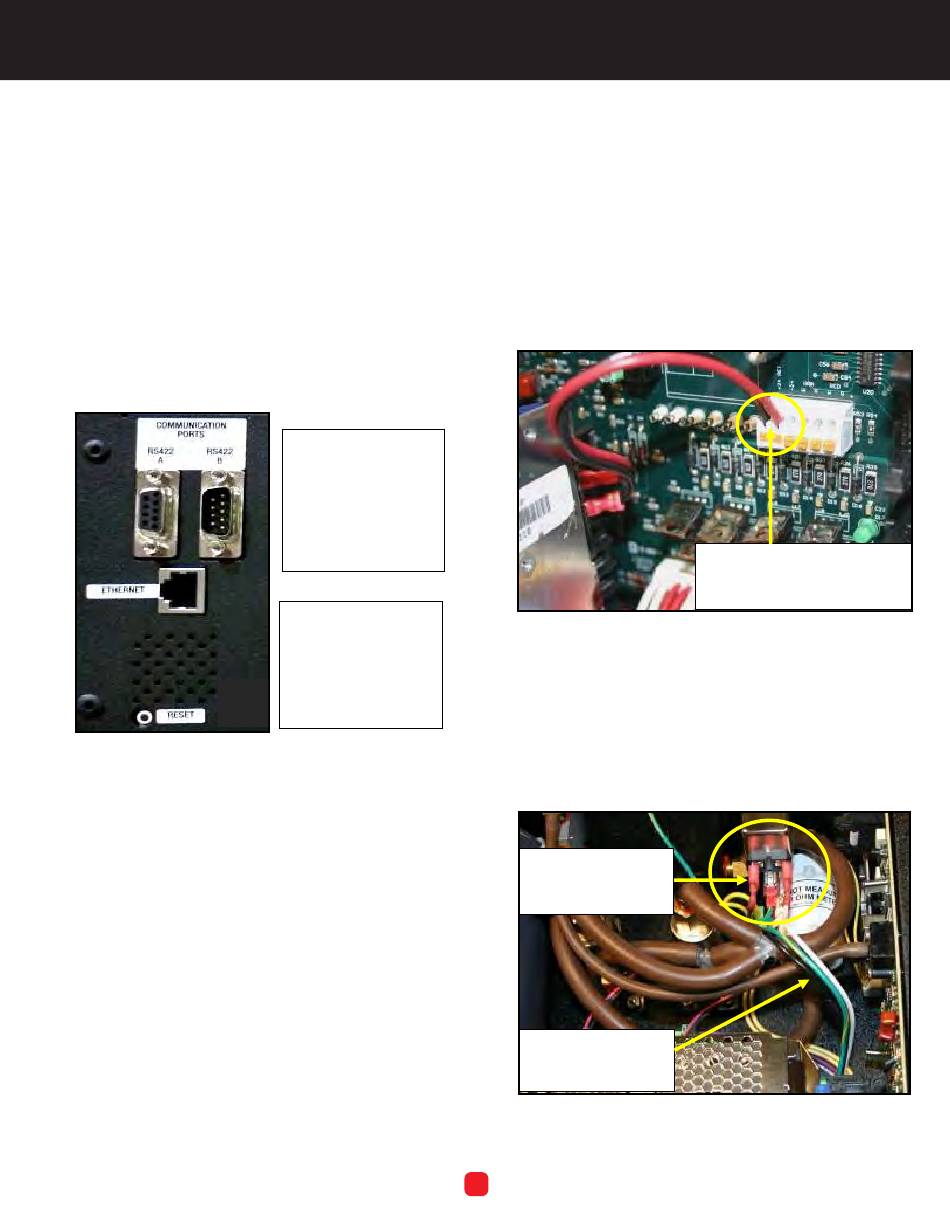

Figure 4. MAIN CIRCUIT BOARD
ASSEMBLY BACK PANEL COMPONENTS.
6.
For better access to the Main Circuit
Board Assembly
installed in terminal blocks J4, J17,
and J1, it is recommended, on AC
units, to remove the AC Power
Supply Module, as well as the
Compressor (pump) Assembly.
DC units,
Compressor Assembly. Perform the
steps found under each of those
headings below.
