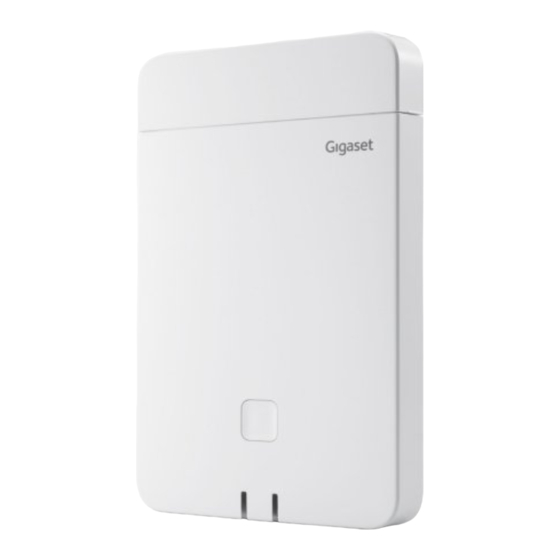

Gigaset N870 Configuration Manual
Hide thumbs
Also See for N870:
- Quick start manual (5 pages) ,
- Installation, configuration and operation (149 pages) ,
- Faq (3 pages)
Related Manuals for Gigaset N870
Summary of Contents for Gigaset N870
-
Page 1: Table Of Contents
Home PBXware SERVERware TELCOware SIPmon SIPProt Desktop & Mobile UADs Appliances From Bicom Systems Wiki Contents 1 Introduction 2 Requirements 2.1 Identifying phone model 2.2 Phone firmware 2.3 DHCP server 2.4 PBXware version 3 Installation 3.1 Power adapter 3.2 Power over Ethernet (PoE) 3.3 Find the phone IP address 3.4 Reset to factory settings 4 Registering phone... -
Page 2: Requirements
Make sure that your phone is loaded with appropriate firmware version, 2.26.0. To find out the firmware version of your Gigaset phone model open a new browser window and enter your phone IP address in order to access the phone web administration interface login screen. -
Page 3: Dhcp Server
DHCP server Fully configured and operational DHCP server. PBXware version PBXware version 5.3.5.0 In order to find out the PBXware version: Login to PBXware Navigate to Settings: About. On the top of About page is a code similar to this one PBXware Edition: Business, Release: 5.3.5.0 (387597b7), Running: 1.8.32.1-gc-b47edc45, PBXware Proxy v5.0 (62b7bcd), API: 5, libmemcached version: 1.0.18, where Release denotes the exact version of your... -
Page 4: Find The Phone Ip Address
Do not unplug or remove power to the phone while it is updating firmware and configuration. Registering phone This chapter describes how to identify Gigaset phone model, requirements that must be met and how to register the phone using manual configuration or auto provisioning. The following topics are covered:... - Page 5 UAD settings Navigate to Settings:UAD. Make sure Gigaset UAD is enabled. To check the UAD status click on the edit icon corresponding to your Gigaset phone. Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
- Page 6 Department to which extension will belong to. Example: Sales. Click on the Save button. Registering Phone This chapter describes how to register Gigaset phone using Hostname or IP Address. Hostname or IP Address Login to phone web administration interface Open a new browser window and enter your phone IP address in order to access the phone web administration interface login screen.
-
Page 7: Auto Provisioning
Username Same number as the Authentication name. Display name Usually the same number as the Authentication name. Domain PBXware IP address or domain name. Example: 192.168.10.1 or http://abc.bicomsystems.com Proxy server address Same as the Domain field. Registration server Same as the Domain field. Click Set button. - Page 8 UAD settings. Navigate to Settings:UAD. Make sure Gigaset UAD is enabled. To check the UAD status click on the edit icon corresponding to your Gigaset phone. Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
- Page 9 Auto Provisioning Set to Yes. MAC Address Enter Gigaset phone MAC address. Example: 7C2F80123456. MAC address can be found at the back of the phone. Click on the Save button. Registering Phone This chapter describes how to register Gigaset phone using DHCP or HTTP.
- Page 10 Enter the following: HTTP digest username Enter Auto Provisioning username. HTTP digest password Enter Auto Provisioning password. Click Set button. Click on Provisioning and configuration in the sub menu. In the Provisioning server field enter the following http:// followed by Hostname or IP Address, followed then by /prov.
- Page 11 Example for IP Address using HTTP: http://192.168.1.10/prov/%MACD.xml Click Set button. Click on Start auto configuration button in the left navigation menu. You'll have to wait couple of seconds for the configuration to be updated. NOTE: Do not power off your phone. Auto provisioning process will start during phone reboot process, phone will pickup appropriate configuration file from PBXware.
