FAQ Nx70 - Installation

Introduction

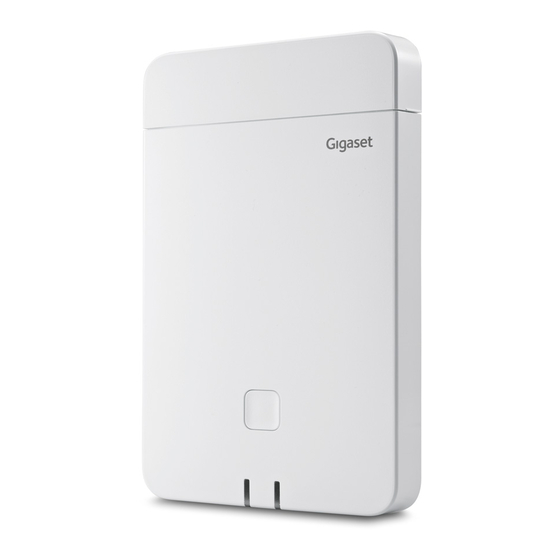

The N870 has only one hardware.
When you connect an N870 to the Power, it will
the role of the device using the procedure described on this page.

Preparation

1.
Perform DECT measurement and site planning
During the planning phase of your DECT network you should have created an installation plan for the DECT managers and base stations.
2.
Connect the devices to the local network.
3.
Register at least one device as Integrator/DECT manager.
4.
Mount the devices at the planned locations.
5.
Configure the local network settings via web configurator.
You need a PC connected to the local network, so that you can configure your telephone system via web configurator.
6.
Perform a firmware update.
7.
Register the base stations to the telephone system.
8.
Configure the base station synchronization.
9.
Configure VoIP PABX or provider.
10.
Register handsets and perform handset configuration.
11.
Create a backup to save your configuration
start by default as a base station
. You can change

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N 70 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Gigaset N 70 Series

  • Page 1 FAQ Nx70 - Installation Introduction The N870 has only one hardware. When you connect an N870 to the Power, it will start by default as a base station . You can change the role of the device using the procedure described on this page. Preparation Perform DECT measurement and site planning During the planning phase of your DECT network you should have created an installation plan for the DECT managers and base stations.
  • Page 2 How to change the role. Per default, the device is delivered as a base station. To change the role to a Integrator/DECT Manager or to reset the base, please follow this instruction. To activate the programming mode, press and hold the hardkey for minimum 10 seconds. After 10 seconds, the LED's will be switched off and the device is in the programming mode.
  • Page 3 Programming mode Progr. Role Description activate by option Programming mode press & hold key for around 10 seconds. (LED's turn off) The device will show direct the role Base station when entering the programming mode. DHCP Set role to Base (default). Green press &...
