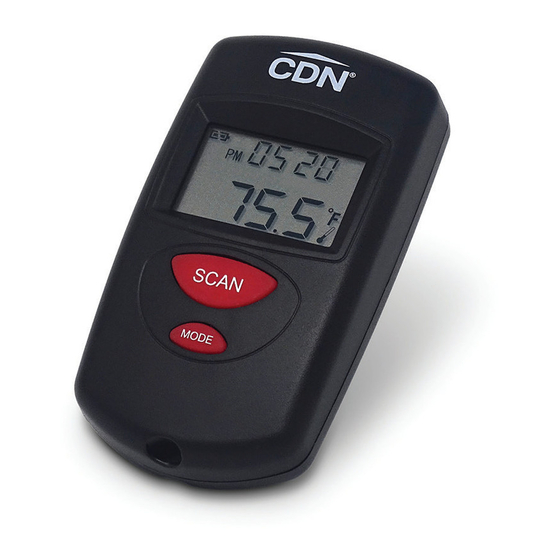

CDN IN482 Quick Start Manual

FOR NON-CONTACT SURFACE
TEMPERATURES
• 1-second response
• Maximum, minimum and lock
for continuous scanning
• Distance:Spot = 5:1
• ±3.6°F/2°C accuracy
• Stopwatch timer
• Clock
• Ambient temperature in standby mode
• Data-hold
• One-button operation
• Battery status indication
• Food-safe ABS plastic
• Auto-off
• 2-way mounting: stand/loop
• 3V Button IEC CR2032 Lithium (included)
Simply point toward the target and press the scan
button to get a quick reading of surface temperatures.
Note: Remove label from display before initial use.
PO Box 10947 Portland, OR 97296-0947 Tel 800 338-5594 Fax 800 879-2364 Web CDNkitchen.com
INFRARED THERMOMETER, TIMER & CLOCK
-67 to 482°F/-55 to +250°C; 24 hours by hr/min/sec
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.
BATTERY INSTALLATION
Power off the unit before installing the battery.
A malfunction may occur if the power is on when
the battery is installed. If a malfunction occurs,
restart the device.
1. Turn the battery cover at the back of the unit
clockwise and lift off.
2. Install one 3V IEC CR2032 lithium button battery
with positive (+) side up by hooking it into the
battery housing. Press the battery down until
it clicks.
3. Replace the battery cover by turning it counter
clockwise until it clicks shut.
OPERATING INSTRUCTIONS
A. On/Off
1. Press the SCAN button to turn the thermometer on.
B. Auto Off
The thermometer automatically turns off after
15 seconds of inactivity when the clock is not set.
Auto-off is disabled when the clock has been set.
Note:
C. Set Clock
Once the clock is set, the time and ambient
temperature appear on the display when the
thermometer is not in use.
Note: Auto-off is disabled when the clock has been set.
1. Press the SCAN button to turn the thermometer on.
2. Press the MODE button seven times
to enter Set Clock mode. The SET
icon (
corner of the display.
3. Press the SCAN button to choose between
12-hour and 24-hour display. 24 flashes on the
display. Press the SCAN button again to change
between 12-hour and 24-hour display.
4. Press the MODE button to confirm the time
format and set the hour. The hour digits flash.
5. While the hour digits are flashing, press the
SCAN button to enter the correct time.
) flashes in the upper right
Model: IN482
