CDN IN428 Quick Start Manual

Perfect For
• Non-contact surface temperature measurement
without risk of cross contamination
Easy To Use
• 1-second response
• Data-hold
• One-button operation
Features
• Shatterproof
• Maximum, minimum and lock for continuous
scanning
• Distance:spot = 1:1
• Battery status indication
• Food-safe ABS plastic
• Auto-off
• Mounting: rope
• Battery and instructions included
Get Professional Results
Every Time!
Monitoring surface temperature is essential to
keeping food safe. The handy IN428 is perfect for
any application. Simply point the sensor lens toward
the target and press SCAN to get a quick reading of
surface temperatures.
Minimum, Maximum and Lock
The IN428 also offers Minimum, Maximum, and
Lock modes. Minimum mode displays the lowest
temperature among multiple targets. Maximum mode
displays the highest temperature among multiple
targets. While Lock mode continuously displays the
temperature for up to 60 minutes. This is particularly
useful for continuous temperature monitoring.
Note:
Remove sticker from display before use.
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that appears
on the display is shown in BOLD CAPS.

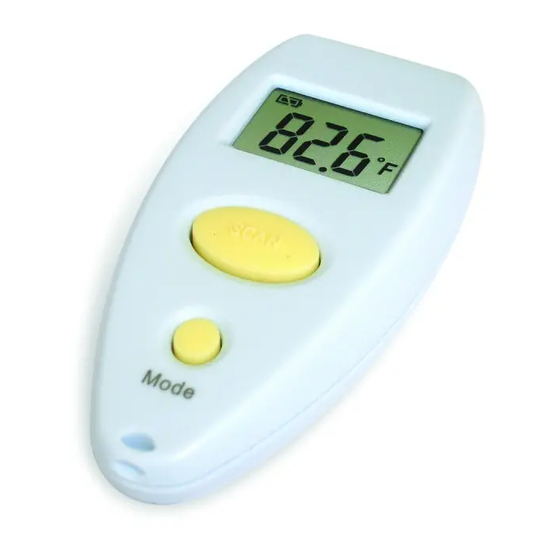

Infrared Thermometer
-67 to +428°F/-55 to +220°C
���� ������

Battery Installation

Power off the unit before installing the battery.
A malfunction may occur if the power is on when
the battery is installed. If a malfunction occurs,
restart the device.
1. Holding the device on the outside
edges (do not press buttons), loosen
the screw on the back by turning
counter clockwise.
2. Remove the back housing, bottom
edge first.
3. Gently pry the battery out using the
screwdriver.
4. Install the CR2032 battery
observing polarity by hooking it
into the left side of the battery
housing. Press the battery down
until it clicks.
5. Replace the back cover, top edge
first.
6. Fasten the screw on the back
housing.
Model: IN428
������ ����
��� �������
���� ������
���� ����� �������� �������
1
2
3
4
5
6
