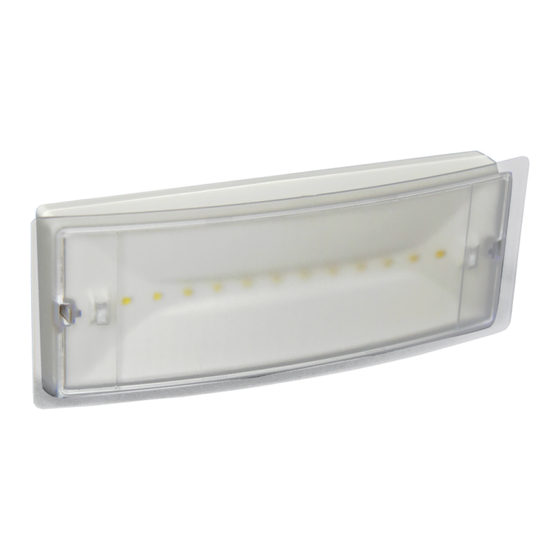

GR-8/leds, GR-9/leds
NON-MAINTAINED / MAINTAINED
EMERGENCY LUMINAIRES
SC
M
NM
TB
Light output
Maintained
Non
Self-
15m
IP42
100lm
Test button
maintained
contained
Thank you for your trust in our products
Olympia Electronics - European manufacturer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR-8/leds and is the answer not in the manual?

Questions and answers

Summary of Contents for olympia electronics GR-8/leds

  • Page 1 GR-8/leds, GR-9/leds NON-MAINTAINED / MAINTAINED EMERGENCY LUMINAIRES Light output Maintained Self- IP42 100lm Test button maintained contained Thank you for your trust in our products Olympia Electronics - European manufacturer...
  • Page 2: Package Contents

    Package Contents Luminaire Mounting accessories Manual General These luminaires are used indoors (ta 40 C) on the wall, where emergency light is needed. Each luminaire must be permanently connected to the mains power supply. In normal operation the illumination LEDs are lit as well as the green indicating charge LEDs, when the battery is charging.
  • Page 3: Installation Instructions

    Installation instructions Dismantle the device carefully using a flat bladed screwdriver. Pass the mains cables through the hole (point A) and secure it with a suitable bracket (not included) to ensure immobilization of the cable at a distance of no more than 5cm from the luminaire’s cable entry.
  • Page 4: Battery Replacement

    Connect the mains cables to the terminal block. Connect the battery`s cable with the appropriate terminal. Refit carefully the removed plastic parts and power on the device. NOTE!! After finishing the installation you must power the luminaire for at least 24 hours in order to completely charge the battery. The rated autonomy duration can be achieved after that time.
  • Page 5: Technical Characteristics

    WEIGHT 345gr. 350gr. GUARANTEE 3 years (1 year for the battery) LED Characteristics GR-8/leds GR-9/leds MANUFACTURER Olympia Electronics S.A. MODEL NUMBER 2201159 VOLTAGE RANGE 2.9-3.6V DC NOMINAL POWER 780mW CONNECTIONS Non reversible connection between main pcb and led module TEMPERATURE (tc) 45 C max.
  • Page 6: Warranty

    Olympia Electronics or if the buyer modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully agreed to them in writing.
