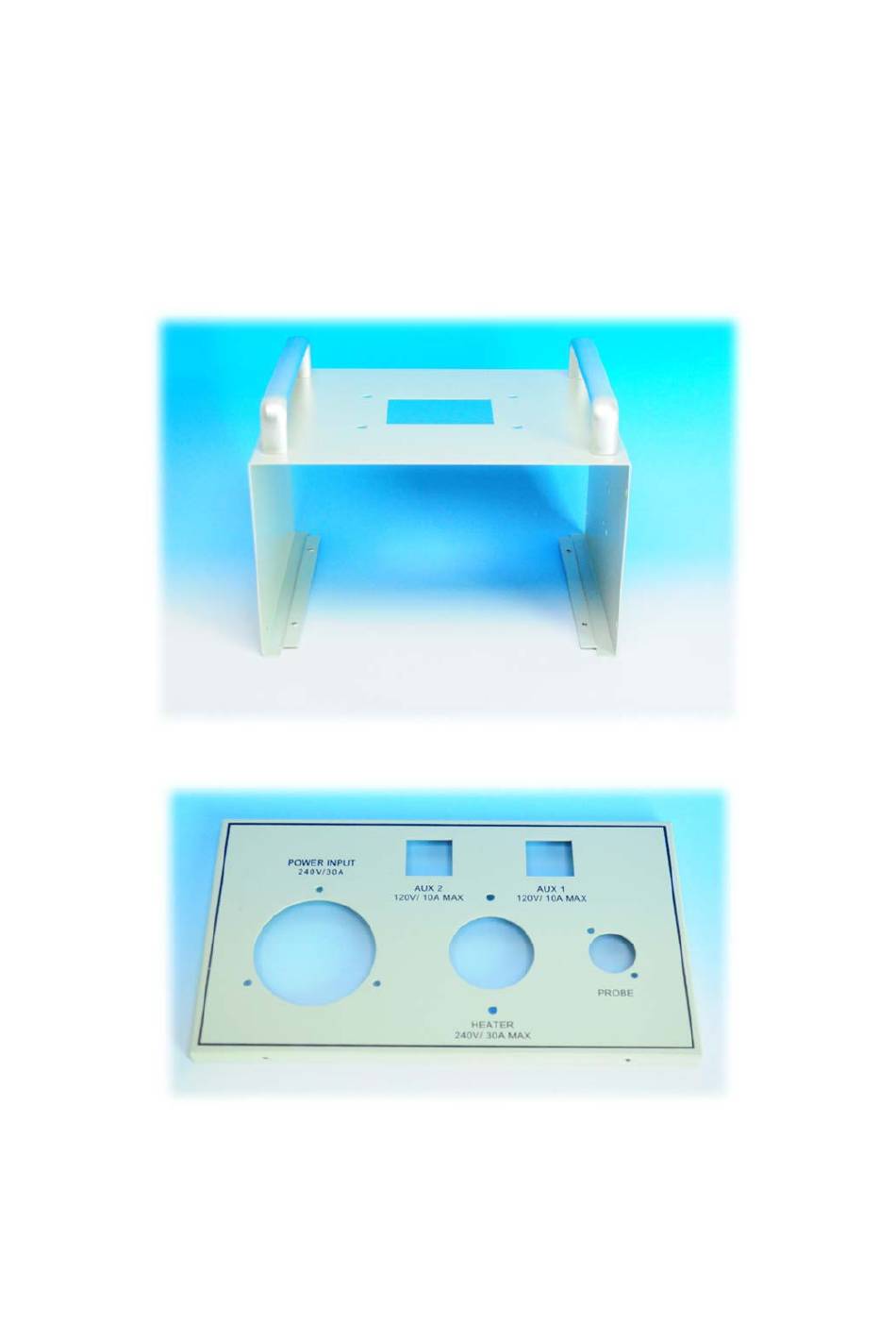

- Page 1 Auber Instruments v1.2 6/12/2019 KIT-CUBE2S Installation Guide 1. Enclosure Disassembling all the screws and the enclosure will be spitted into four pieces: Figure 1. Top and Body of Qbox1. Figure 2. Rear Plate of Qbox1. 1 ...
- Page 2 Auber Instruments v1.2 6/12/2019 Figure 3. Front Plate of Qbox1. Figure 4. Bottom Plate of Qbox1. Tips: Due to the space inside the enclosure is limited, we recommend you to start with the installation of heat sink, SSR, fuse holders and mini relays first, and then complete the wiring for the parts. During all the wiring process, the enclosure should be kept upside down; the bottom plate should be assembled back lastly. 2 ...
- Page 3 Auber Instruments v1.2 6/12/2019 2. Heat Sink and Solid‐State Relay (SSR) There are (4) M6 screws offered to mount the heat sink on the top of CUBE box. Heat Sink Figure 5. Top view of heat sink installation. Figure 6. Bottom view of heat sink installation. 3 ...
- Page 4 Auber Instruments v1.2 6/12/2019 Apply silicon grease at this area. Figure 7. Apply Silicon Grease uniformly before mounting the SSR. SSR Figure 8. Using (2) M4 screws provided to mount the SSR on the heat sink. 4 ...
- Page 5 Auber Instruments v1.2 6/12/2019 3. Fuse Holders and Mini Relays. NOTE: Two pairs of M3 screw and nuts are provided to mount each fuse holder in the KIT. Figure 9. (2) pairs of M3 screw and nuts are provided for mounting each mini relay, (1) pair of M3 scew and nuts are provided for mounting each fuse holder. Figure 10. Locate the (8) small holes pre‐drilled and start to mount your (2) mini relays and (2) fuse holders. 5 ...
- Page 6 Auber Instruments v1.2 6/12/2019 Figure 10. Outside View (Screw cap should be facing outside). Tips: if you have rivets and rivet gun, you can also use it to mount the fuse holder instead of using M3 screw and nut. Figure 11. Inside view (all nuts should be installed inside). 6 ...
- Page 7 Auber Instruments v1.2 6/12/2019 4. Wire Preparation Table 1. The total length of each wire needed. Wire Color 10AWG 14 AWG 22 AWG Green 2 ft 2 ft 0 ft White 0 ft 3 ft 3 ft Black 3 ft 5 ft 3 ft Red 3 ft 0 ft 1 ft Yellow 0 ft 0 ft 1 ft RTD Extension Wire This is offered in the kit and soldered with black XLR male connector. Table 2. The total number of connectors needed. Connector Types For Yellow Stud Ring Terminal (12‐10AWG) Ground Red Insulated Female Disconnect Square (22 ‐ 18 AWG) ...
- Page 8 Auber Instruments v1.2 6/12/2019 Figure 14. 10‐AWG hot wires. Figure 15. 14‐AWG hot wires. 8 ...
- Page 9 Auber Instruments v1.2 6/12/2019 Figure 16. Other control wires. Figure 17. Wiring harness of illuminated switches. Remove the unnecessary green wires by insert a pair of tweezers into the corresponding slots (for green wires) and pull them out gently by hand at the same time. If the wires cannot be removed easily, that means the tweezers may not be inserted into the right slots. 9 ...
- Page 10 Auber Instruments v1.2 6/12/2019 5. Parts Wiring. Note: using 8‐32 nut as Grounding Post. XLRCON‐M Connector L6‐30R Heater Outlet Figure 17. Rear plate assembly and ground wiring. (Note: L6‐30R heater output should be mount with the (2) M4 screws; XLRCON‐M connector needs (2) pairs of M3 screws and nuts.) Figure 18. Continue with hot and neutral wires like the photo. Leave the hot wires to be connected later. 10 ...
- Page 11 Auber Instruments v1.2 6/12/2019 AUX2 Slope AUX1 Figure 19. Start front panel from switches and EZBoil. Figure 20. Add wiring harness to the switches and mount breaker bracket. 11 ...
- Page 12 Auber Instruments v1.2 6/12/2019 Figure 21. Push the two side legs out so that it can clamp on the front panel firmly. Figure 22. Wire the breaker switch before fit it into the bracket, and continue the wiring for EZboil and hot L1 bus for front plate like the photo. 12 ...
- Page 13 Auber Instruments v1.2 6/12/2019 Breaker Switch L14‐30P L6‐30R Figure 23. Connect the wires between front plate with rear plate. AUX2 Mini Relay AUX2 Fuse Holder AUX1 Fuse Holder AUX1 Mini Relay Figure 24. Place fuse into the fuse holder, and jump wire for each mini relay from its pin NO to the corresponding fuse holder. 13 ...
- Page 14 Auber Instruments v1.2 6/12/2019 Tips: Due to the limit space inside the enclosure, please do not tighten the M3 screws on the rear plate before connecting the SSR wires. Figure 25. While assembling the front plate and rear plate with enclosure body, finish the SSR wiring. Figure 26. Complete the wiring of mini relays and fuse holders. 14 ...
- Page 15 Auber Instruments v1.2 6/12/2019 6. Testing. Before closing the enclosure with bottom plate, you can do a simple test with 240V input power and load. For example, wiring a 220V light bulb to test the heater output and use a 120V lamp to test the pump output. The EZBoil DSPR320 has initial status to be stop; one needs to press the run button once to start heating. And please remember to plug the sensor while testing. In the case if there is no power from the heater outlet, please check SSR indicator and controller OUT light action; they should work synchronously. If no power from the pump outlet when switch is at ON position, please check if fuse has been placed first. After test, apply hot glue or silicon sealant for controller and the 5‐15R pump outlets; these parts do not come with mounting screw, so they may go loose after time. In the end, close the enclosure by fastening the screws on the bottom plate and you can enjoy brewing with it. Appendix. Tools Recommendation Philip screw driver sets. Flat head screw driver sets. Ruler and caliper. Tweezer Wire cutter. Wire stripper. Wire crimper. Hot gun or multipurpose sealant. Multimeter. Auber Instruments Inc. ...
