- Page 1 CV-105 DVI & Audio to HDMI Converter User Manual Made in Taiwan ...
- Page 2 Safety and Notice The CV-105 DVI & Audio to HDMI Converter has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the CV-105 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

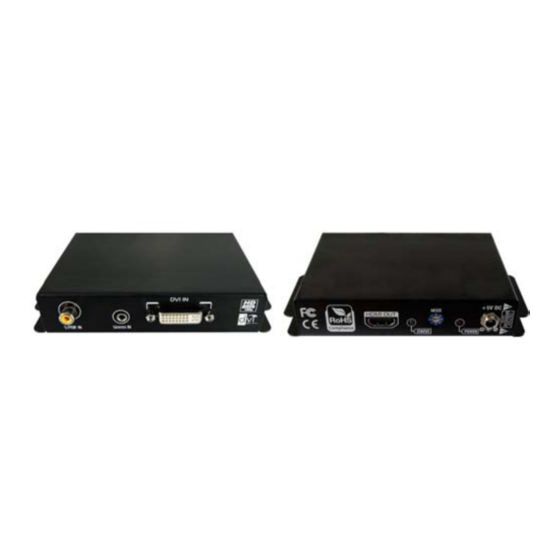

- Page 3 Introduction The CV-105 DVI & Audio to HDMI Converter provides an easy and instant approach for converting digital video (DVI-D) and both digital audio (S/PDIF) and analog stereo audio to digital HDMI. With this module, DVI based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV at lowest cost.
- Page 4 Power supply 5V 2A DC Power consumption 3.5 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x CV-105 Package Contents 1x DC 5V 2A wall wart 1x User Manual ~ 3 ~...
- Page 5 +5V DC: Connect to 5V DC power supply. EDID Learning 1. Power up the CV-105. Connect HDMI display to HDMI Out. 2. Turn the rotary control counterclockwise from 0 to 7. 3. The green light will be bright and then dark to indicate the EDID is learned.
- Page 6 CONNECTION DIAGRAM ~ 5 ~...
- Page 7 2. Connect S/PDIF or stereo audio source to RCA jack or 3.5mm earphone jack respectively. 3. Connect HDMI display to the HDMI output connector with a HDMI cable 4. Power up the CV-105. Notice 1. Only HDMI enabled TV sets with underscan/overscan* support, the full active video can be accurately displayed.
- Page 8 Limited Warranty The SELLER warrants the CV-105 DVI & Audio to HDMI Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product...
