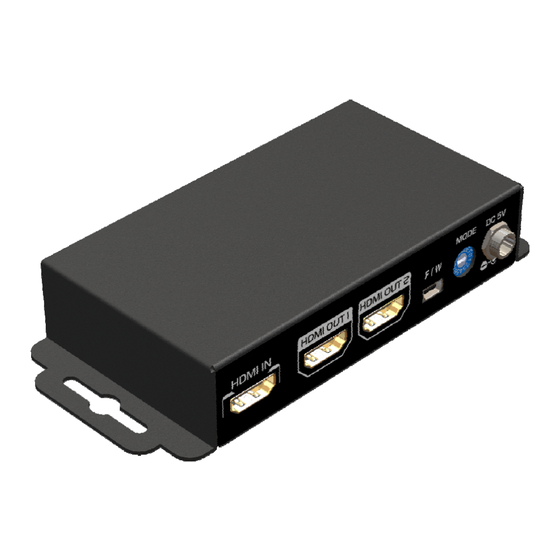

SP-5002PZ
1x2 HDMI 2.0a Splitter with Built-in &
User Adjustable EDID Management
User Manual
The SP-5002PZ
been tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the SP-5002PZ should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
Introduction ................................................................................................................... 1
Features ........................................................................................................................... 1
Package Contents ........................................................................................................ 1
Specifications ................................................................................................................ 2
Panel Descriptions ....................................................................................................... 3
Hardware Installation ............................................................................................... 4
Connection Diagram .................................................................................................... 4
Notice ................................................................................................................................. 5
Warranty .......................................................................................................................... 6
rev: 160128
Made in Taiwan
Safety and Notice
1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management
has
Advertisement
Table of Contents
Related Manuals for Gomax SP-5002PZ
Summary of Contents for Gomax SP-5002PZ
- Page 1 1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SP-5002PZ should be used with care. 1x2 HDMI 2.0a Splitter with Built-in &...
- Page 2 HDMI 2.0a and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition DVI compliance DVI 1.0 audio support, SP-5002PZ is suitable for high quality HDMI broadcasting, digital signage and education applications! HDCP compliance HDCP 2.2...
- Page 3 PANEL DESCRIPTIONS HARDWARE INSTALLATION Broadcasts HDMI signal to 2 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the displays. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Make sure the rotary switch is NOT at “MODE 0” 5.
- Page 4 SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5002PZ features and specifications is subject to change without further notice.
