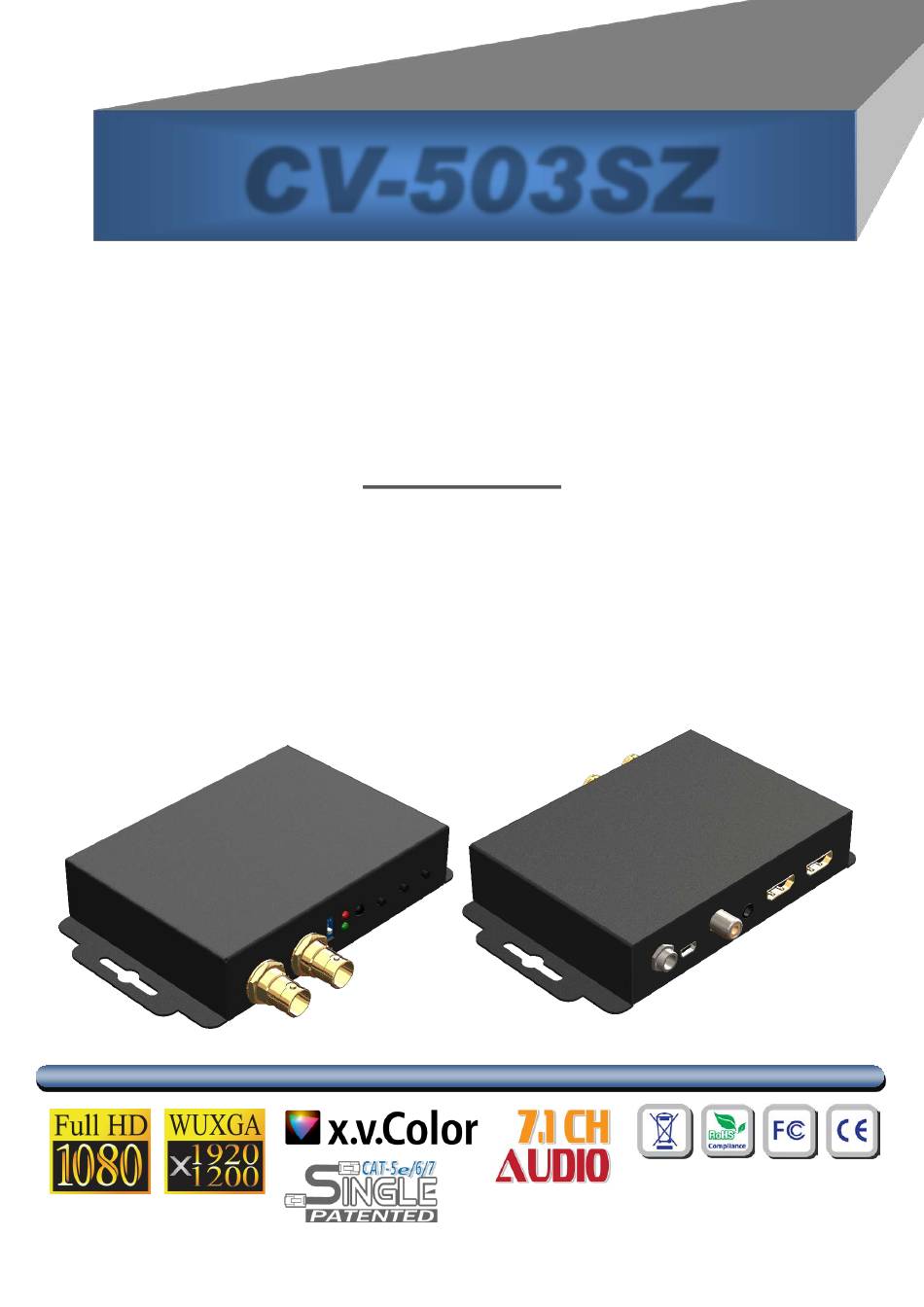

- Page 1 CV-503SZ HDMI 2.0a to 3G/HD/SDI Scaler Converter User Manual rev: 160726 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-503SZ should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The CV-503SZ HDMI 2.0a to 3G/HD/SD-SDI Scaler Converter provides a professional way to convert HDMI to 3G/HD/SD-SDI in real time. The device can convert audio and video between HDMI and SDI. The model supports clock cleaning function which provides a source-Independent low jitter output. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-503SZ Technical Role of usage HDMI to SDI Converter HDMI standards Up to HDMI2.0a SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video Maximum Pixel Rate 594MHz Output Video bandwidth 2.970Gpbs [3G] 1080p @50/59.94/60Hz (4:2:2) [HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz Output Video support [SD] NTSC @59.94Hz, PAL @50Hz... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel SDI OUT 1: 3G/HD/SD-SDI output SDI OUT 2: 3G/HD/SD-SDI output DIP SWITCH: For firmware update ON []: firmware update mode OFF []: normal mode LED INDICATOR: [red]: power indicator LED. [green]: signal indicator LED IR SENSOR: IR sensor for receiving the IR commands from IR remote PUSH BUTTON [LEFT]: Down Button [MID]: Up Botton... -
Page 6: Connection Diagram
CONNECTION DIAGRAM... -
Page 7: Osd Menu
OSD MENU Out Res. Output Mode YCbCr422 1.Output Setup Disable, White, Cross, Hatch, Color, Gray, Windows, Default Pattern H-Ramp, W-HRamp, W-VRamp, Diagonal Contrast 0~255 of Contrast Level Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level 0~255 of Hue Level 2.Image B/W Extension Off, On... -
Page 8: Operation Approach
OPERATION APPROACH Method A: Push-in Button Method B: IR Remote Control Button Function FREEZE Freeze video Aspect ratio change ASPECT RATIO BLANK Blank video EXIT Exit OSD ENTER Enter key Up key Left key LEFT RIGHT Right key DOWN Down key MENU Menu on INPUT INFO... - Page 9 Method C: IR Remote Control through Mini-USB port COM Port Selection COM Port Detection Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Refresh Input / Output Resolution Info Button Output Quick Selection Button 1.
- Page 10 3. Output Setup Button 4. Image Button 5. Adjustment Button...
- Page 11 6. System Button 1) In-Sync Info:To view the current input resolution 2) Factory Reset Button 3) Firmware Update Button The steps of firmware update: 1) Please power OFF the scaler converter device 2) Set the Dip Switch to ON [] 3) Power ON and connect the device to PC via USB to mini-USB cable 4) Click the FW Update button on software 5) Click “Load File”...
-
Page 12: Limited Warranty
LIMITED WARRANTY The SELLER warrants the CV-503SZ HDMI2.0a to 3G/HD/SD-SDI Scaler Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
