CV-503ZK-A

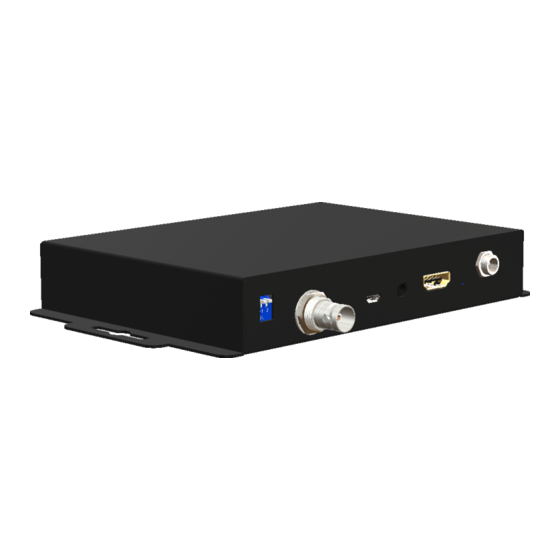

HDMI 2.0 to 12G/6G/3G/HD/SDI
Converter with Audio Embedder
User Manual
The CV-503ZK-A
tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the CV-503ZK-A should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................ 1
FEATURES ........................................................................................................................ 1
PACKAGE CONTENTS ................................................................................................... 1
SPECIFICATIONS .............................................................................................................. 2
PANEL DESCRIPTION ...................................................................................................... 3
CONNECTION DIAGRAM .................................................................................................. 4
SUPPORTED SDI RESOLUTIONS .................................................................................... 5
LIMITED WARRANTY ........................................................................................................ 6
rev: 160726
Made in Taiwan
HDMI 2.0 to 12G/6G/3G/HD/SD-SDI Converter with Audio Embedder
has been
Advertisement
Related Manuals for Gomax CV-503ZK-A
Summary of Contents for Gomax CV-503ZK-A
- Page 1 However, like all electronic equipments, the CV-503ZK-A should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize HDMI 2.0 to 12G/6G/3G/HD/SDI...
- Page 2 SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with SDI standards 12G/6G/3G/HD/SD-SDI up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-503ZK-A Auto 12G/6G/3G/HD/SD-SDI also provides one low jitter SDI output and is also equipped with high quality analog stereo embedder.
- Page 3 PANEL DESCRIPTION CONNECTION DIAGRAM 2-Pin Dip Switch (Please refer to “Notes”) SDI OUT: 12G/6G/3G/HD/SD-SDI output Micro USB: Micro-USB port for F/W update Stereo Audio Input HDMI IN: Connects to a HDMI source with a HDMI male-male cable LED INDICATOR: Power indicator LED. +12V DC: Interlocking power jack for 12V DC power supply unit *Notes: DIP Switch Position DIP Switch Position...
- Page 4 SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-503ZK-A features and specifications is subject to change without further notice.
