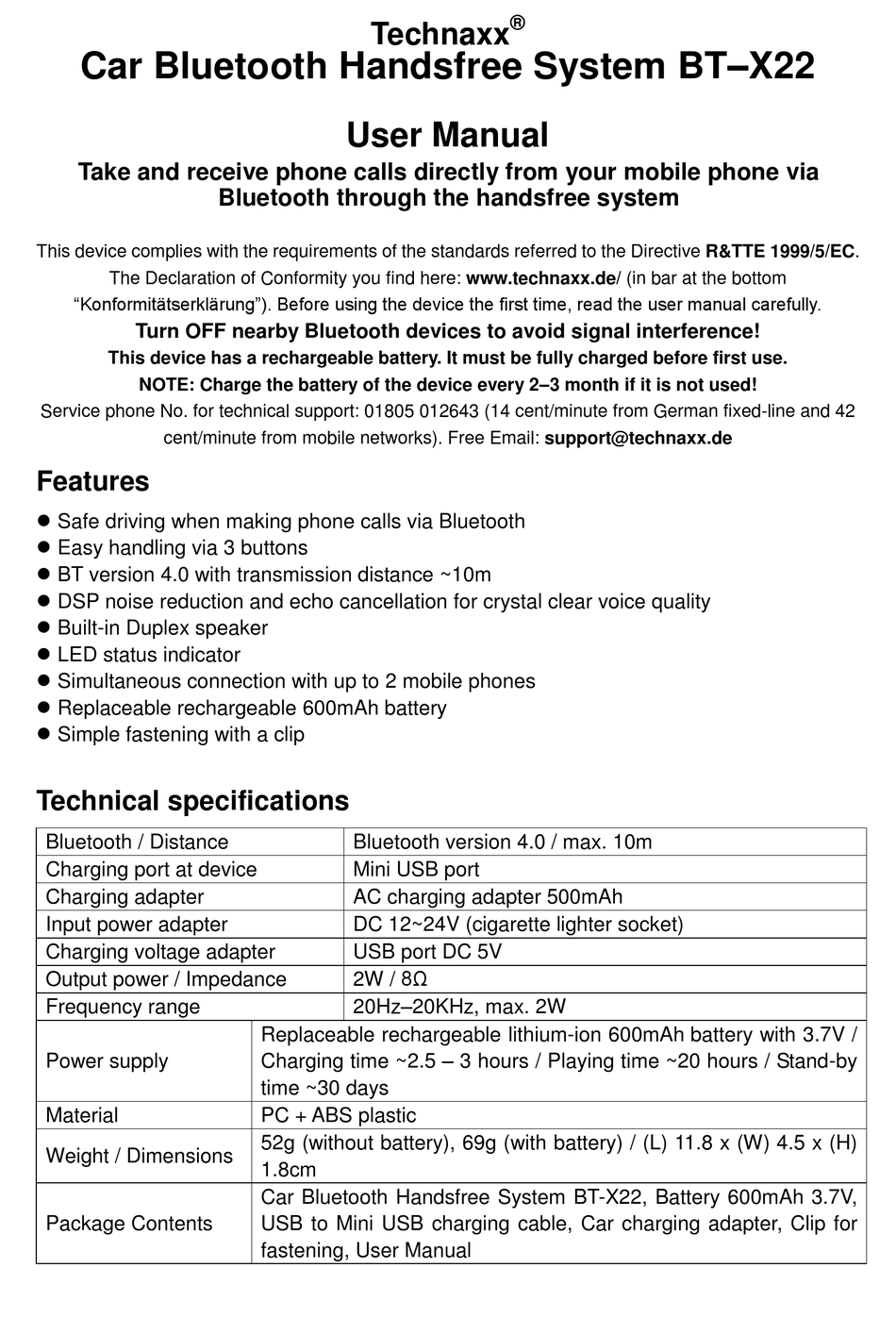

Technaxx BT-X22 User Manual

Car Bluetooth Handsfree System BT–X22
Take and receive phone calls directly from your mobile phone via
This device complies with the requirements of the standards referred to the Directive R&TTE 1999/5/EC.
The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom
"Konformitätserklärung"). Before using the device the first time, read the user manual carefully.
Turn OFF nearby Bluetooth devices to avoid signal interference!
This device has a rechargeable battery. It must be fully charged before first use.
NOTE: Charge the battery of the device every 2–3 month if it is not used!
Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42
cent/minute from mobile networks). Free Email: support@technaxx.de
Features
 Safe driving when making phone calls via Bluetooth
 Easy handling via 3 buttons
 BT version 4.0 with transmission distance ~10m
 DSP noise reduction and echo cancellation for crystal clear voice quality
 Built-in Duplex speaker
 LED status indicator
 Simultaneous connection with up to 2 mobile phones
 Replaceable rechargeable 600mAh battery
 Simple fastening with a clip
Technical specifications
Bluetooth / Distance
Charging port at device
Charging adapter
Input power adapter
Charging voltage adapter
Output power / Impedance
Frequency range
Power supply
Material
Weight / Dimensions
Package Contents
Technaxx
User Manual
Bluetooth through the handsfree system
Bluetooth version 4.0 / max. 10m
Mini USB port
AC charging adapter 500mAh
DC 12~24V (cigarette lighter socket)
USB port DC 5V
2W / 8Ω
20Hz–20KHz, max. 2W
Replaceable rechargeable lithium-ion 600mAh battery with 3.7V /
Charging time ~2.5 – 3 hours / Playing time ~20 hours / Stand-by
time ~30 days
PC + ABS plastic
52g (without battery), 69g (with battery) / (L) 11.8 x (W) 4.5 x (H)
1.8cm
Car Bluetooth Handsfree System BT-X22, Battery 600mAh 3.7V,
USB to Mini USB charging cable, Car charging adapter, Clip for
fastening, User Manual
®
