Before using the device for the first time, please read the instructions for use and the
safety instructions carefully.
Please keep this user manual carefully for future reference or sharing of products. Do
the same with the original accessories for this product. In the event of a warranty claim,
please contact the dealer or store where you purchased this product.
* Share your experiences and opinions on one of the well-known internet portals.
Features
• Motion detector
• Sets the parking time automatically
• 2 displays
• Backlit display
• SOS light function
• ECE licensed
Technical specification
ECE license no.
Parking detection response
time
Time accuracy
Parking time interval
Battery
Battery life
material
Operating temperature
Weight of the device
Dimensions of the device
Packaging contents
IMPORTANT
The TX-272 electronic parking disc should not be left loose in the vehicle. To be legally
recognized, it must be attached to the windshield.
Note: The parking disc does not automatically switch between winter and summer time.
Electronic parking disc TX-272 - EN
Technaxx® user manual

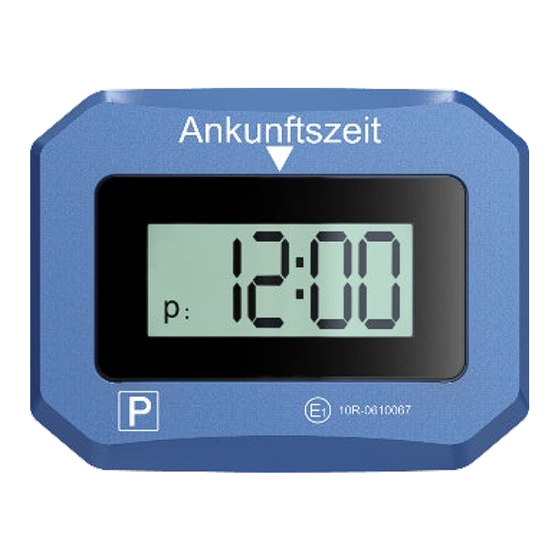

Electronic parking disc TX-272
E1 10R-0610067
Approx. 60 seconds
±2min. / year
15 minutes & 30 minutes (adjustable)
3V button cell CR2450
(included)
Approx. 1 year
ABS+PC
-20°C – 75°C
84g
(L) 10.2 x (W) 7.9 x (H) 2.5 cm
Electronic
CR2450 battery, user manual
parking
disc
TX-272,
Item no.: 5119 Prod. ID.: 11/23
Advertisement
Related Manuals for Technaxx TX-272
Summary of Contents for Technaxx TX-272
- Page 1 CR2450 battery, user manual IMPORTANT The TX-272 electronic parking disc should not be left loose in the vehicle. To be legally recognized, it must be attached to the windshield. Note: The parking disc does not automatically switch between winter and summer time.
- Page 2 "Hour" digits flash. Press button 3 repeatedly until the hours match the current time. • • Press button 4 again and “Minutes” will start flashing. Set the minutes using button Follow the same procedure to set the current date. • Electronic parking disc TX-272 - EN Item no.: 5119 Prod. ID.: 11/23...
- Page 3 The support hotline is available Mon-Fri from 9 a.m. to 1 p.m. and 2 p.m. to 5 p.m. Declaration of Conformity The EU declaration of conformity can be requested at the following address: www.technaxx.de/ (in the bottom bar “Declaration of conformity”). Electronic parking disc TX-272 - EN Item no.: 5119 Prod. ID.: 11/23...
- Page 4 = mercury, Pb = lead. Return your product with the completely discharged battery to your collection point! Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse ring 16-18, 61137 Schöneck, Germany Electronic parking disc TX-272 - EN Item no.: 5119 Prod. ID.: 11/23...
