* User Manual
Universal Auto Alarm Pro TX-168
Please read and keep all safety, security, and use instructions.
Products marked with this symbol meet all applicable community
regulations of the European Economic Area.
The manufacturer Technaxx Deutschland GmbH & Co.KG hereby
declares that this device, to which this user manual belongs,
complies with the essential requirements of the standards referred
to the Directive RED 2014/53/EU. The Declaration of Conformity
you find here: www.technaxx.de/ (in bar at the bottom
"Konformitätserklärung"). Before using the device the first time,
read the user manual carefully.
This symbol means the product must not be discarded as
household waste, and should be delivered to an appropriate
collection facility for recycling. Proper disposal and recycling helps
protect natural resources, human health and the environment. For
more information on disposal and recycling of this product, contact
your local municipality, disposal service, or the shop where you
bought this product.
Security and Disposal Hints for Batteries: Hold children off
batteries. When a child swallowed a battery go to a doctors place
or bring the child into a hospital promptly! Look for the right polarity
(+) and (–) of batteries! Always change all batteries. Never use old
and new batteries or batteries of different types together. Never
short, open, deform or load up batteries! Risk of injury! Never
throw batteries into fire! Risk of explosion!
Batteries can be returned free of charge after use in retail stores.
The end user is legally obliged to return used batteries. Separate
collection and recycling of old batteries for the environment and
health. Remove batteries before disposing of the device.
Hints for Environment Protection: Packages materials are raw
materials and can be recycled. Do not disposal old devices or
batteries into the domestic waste. Cleaning: Protect the device
from contamination and pollution (use a clean drapery). Avoid
using rough, coarse-grained materials or solvents/aggressive
cleaner. Wipe the cleaned device accurately. Important Notice:
Should battery fluid leak from a battery, wipe the battery case with
a soft cloth dry. Distributor: Technaxx Deutschland GmbH &
Co.KG,
16-18, 61137 Schöneck, Germany
Konrad-Zuse-Ring
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-168 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Technaxx TX-168

  • Page 1 Directive RED 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully.
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this device near water. 6. Clean only with a dry cloth. 7. Only use attachments/accessories specified by the manufacturer. This manual will show you how to use your device safely and effectively.
  • Page 3: Personal Precautions

    ⚫ DO NOT touch the external siren if you, the external siren, the device being operated or any other surfaces that may come into contact with any power source are wet. Water and many other liquids can conduct electricity, which may lead to serious injury or death. ⚫...
  • Page 4: Battery Safety Instructions

    BATTERY SAFETY INSTRUCTIONS - DO NOT burn products and their batteries and do not expose them to direct sunlight or to high temperatures (e.g. in hot cars or near hot stoves). Batteries may explode if overheated. - Only use this product for its intended purpose and follow the general and battery safety instructions as described in this user manual.
  • Page 5: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS ..........2 WARNINGS ..................2 PERSONAL PRECAUTIONS ............... 3 BATTERY SAFETY INSTRUCTIONS ........... 4 Features ....................6 Product overview .................. 7 Charge the Car Alarm ................8 Get started .................... 9 System Installation and Wiring ............9 Install the external Siren ..............
  • Page 6: Features

    Features ⚫ DC12 or 24V rechargeable Car Alarm for the cigarette lighter socket ⚫ DC12 or 24V external siren for engine compartment for more attention ⚫ Button for panic alarm (about 105dB) ⚫ 1x USB-C charging port with a total of 5V / 3.0A output power ⚫...
  • Page 7: Product Overview

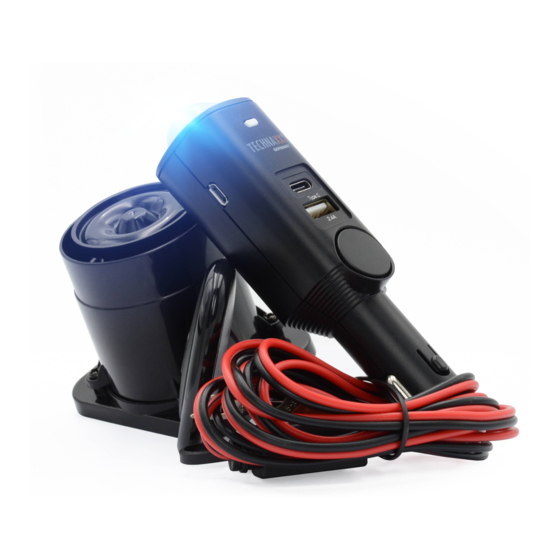

    Product overview Car Alarm External Siren Remote Control PIR (Motion detection) Siren and LED indicator 2 Panic button Mounting holes USB-C charging slot (DC5V/3.0A) Pairing button (on circuit USB charging slot board) (DC5V/2.4A) Remote control button 4 Siren (activate/deactivate) Battery compartment (on 5 MicroUSB input circuit board)
  • Page 8: Charge The Car Alarm

    Charge the Car Alarm Charge the device only under supervision and with the recommended equipment (USB charger DC5V/500mA and a MicroUSB cable). Charge the battery of the device every 2–3 month if it is not used! To counteract deep discharge. This device has a rechargeable battery.
  • Page 9: Get Started

    Get started System Installation and Wiring These installation instructions do not apply to all types of vehicles. They are meant only as a general guide due to the large number of vehicle makes and models. Consult your local motor vehicle laws on the use of this product to be sure it is permitted.
  • Page 10: Install The External Siren

    If the engine has been running for more than 10 minutes, there is a risk of burns. Allow the engine and other parts in the engine compartment to cool down for at least 30 minutes before starting to install the external siren. Loose connectors result in excessive voltage drop and may cause over heated wires and melted insulation, which can lead to electrical fires.
  • Page 11: Inserting Car Alarm To The Cigartte Lighter Socket

    Securely connect red wire to Positive terminal (“+”) of the battery and black wire to Negative terminal (“-”) of the battery. The external siren makes a short alarm sound when it is connected correctly to the vehicle’s battery. When mounting the siren, make sure that the position of the siren does not interfere with the closing of the engine hood.
  • Page 12: Remote Control & Functions

    Remote Control & Functions Activate (Arm) The Car Alarm can be activated by pressing the remote control button shortly (1x short "beep" and red light flash once). The external siren will “beep” once as well. Once the PIR sensor of the Car Alarm is activated, it takes about 10 seconds until the device is armed.
  • Page 13: Shut Off The Car Alarm

    Shut OFF the Car Alarm If you press the remote control button long (4-5 seconds) you will hear 4x short “beep”. After that the Car Alarm’s battery is turned off. Not just the PIR sensor is shut off, the whole Car Alarm is shut off for long time no use or for transportation.
  • Page 14: Usb Charger Function

    ⚫ Press and hold the panic button of Car Alarm for 3-4 seconds till the LED is on. It lights up mixed color flashing (Red/Green/Blue). This activates the pairing mode. ⚫ Press the button (8) on the circuit board once. The light of circuit board will flash blue once.
  • Page 15: Troubleshooting

    Troubleshooting - Remote does not work: 1. Remove the small plastic strip on the top of the remote control. 2. Open the remote and check if a battery is inserted Technical Specification ~3m car interior (without obstacles (e.g. rear Detecting distance wall in trucks) Detecting range 120°...
  • Page 16: Disposal

    120g / (L) 7.3 x (W) 5.7 x (H) 6.2cm cable and fuse) Weight / Dimensions 16g / (L) 5.9 x (W) 3.7 x (H) 1.0cm (remote) Universal Auto Alarm Pro TX-168: Package Car Alarm, External Siren with connection cable and 3A Contents Fuse,...
