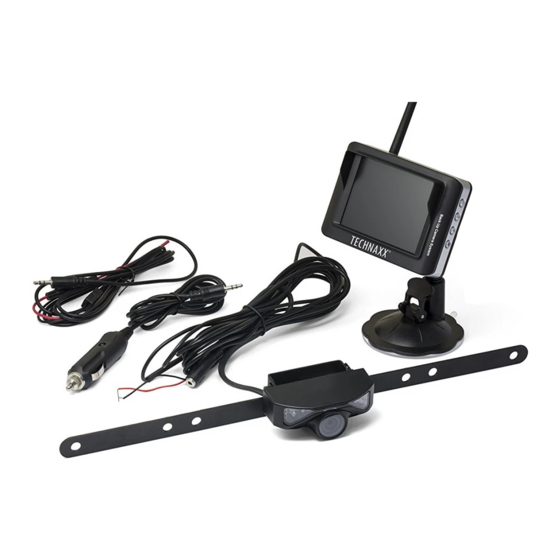

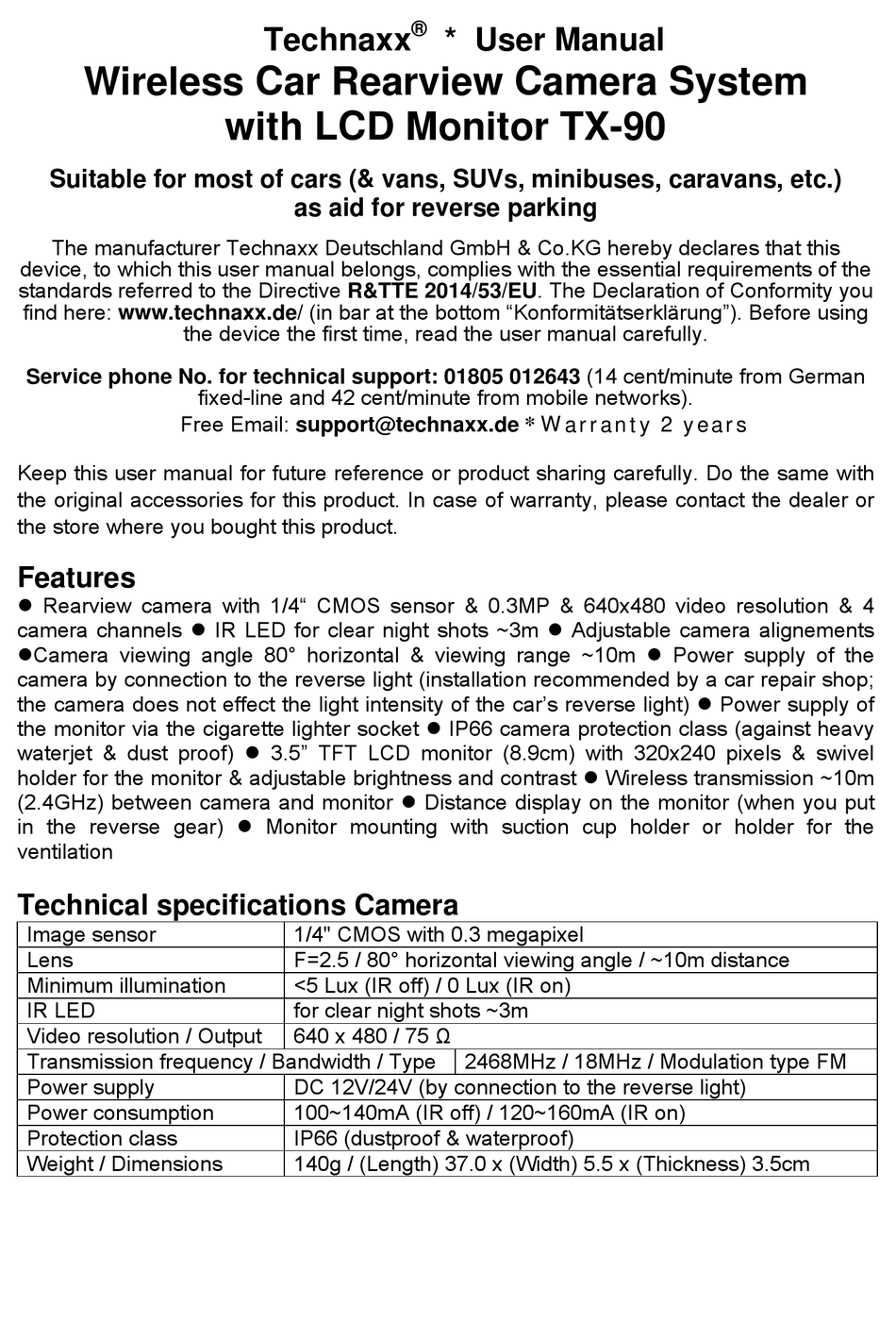

Technaxx TX-90 User Manual

Wireless Car Rearview Camera System
Suitable for most of cars (& vans, SUVs, minibuses, caravans, etc.)
The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this
device, to which this user manual belongs, complies with the essential requirements of the
standards referred to the Directive R&TTE 2014/53/EU. The Declaration of Conformity you
find here: www.technaxx.de/ (in bar at the bottom "Konformitätserklärung"). Before using
the device the first time, read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from German
Free Email: support@technaxx.de * Warranty 2 years
Keep this user manual for future reference or product sharing carefully. Do the same with
the original accessories for this product. In case of warranty, please contact the dealer or
the store where you bought this product.

Features

 Rearview camera with 1/4" CMOS sensor & 0.3MP & 640x480 video resolution & 4
camera channels  IR LED for clear night shots ~3m  Adjustable camera alignements
Camera viewing angle 80° horizontal & viewing range ~10m  Power supply of the
camera by connection to the reverse light (installation recommended by a car repair shop;
the camera does not effect the light intensity of the car's reverse light)  Power supply of
the monitor via the cigarette lighter socket  IP66 camera protection class (against heavy
waterjet & dust proof)  3.5" TFT LCD monitor (8.9cm) with 320x240 pixels & swivel
holder for the monitor & adjustable brightness and contrast  Wireless transmission ~10m
(2.4GHz) between camera and monitor  Distance display on the monitor (when you put
in the reverse gear)  Monitor mounting with suction cup holder or holder for the
ventilation

Technical specifications Camera

Image sensor
Lens
Minimum illumination
IR LED
Video resolution / Output
Transmission frequency / Bandwidth / Type
Power supply
Power consumption
Protection class
Weight / Dimensions
Technaxx
with LCD Monitor TX-90
as aid for reverse parking
fixed-line and 42 cent/minute from mobile networks).
1/4" CMOS with 0.3 megapixel
F=2.5 / 80° horizontal viewing angle / ~10m distance
<5 Lux (IR off) / 0 Lux (IR on)
for clear night shots ~3m
640 x 480 / 75 Ω
DC 12V/24V (by connection to the reverse light)
100~140mA (IR off) / 120~160mA (IR on)
IP66 (dustproof & waterproof)
140g / (Length) 37.0 x (Width) 5.5 x (Thickness) 3.5cm
®
* User Manual
2468MHz / 18MHz / Modulation type FM
