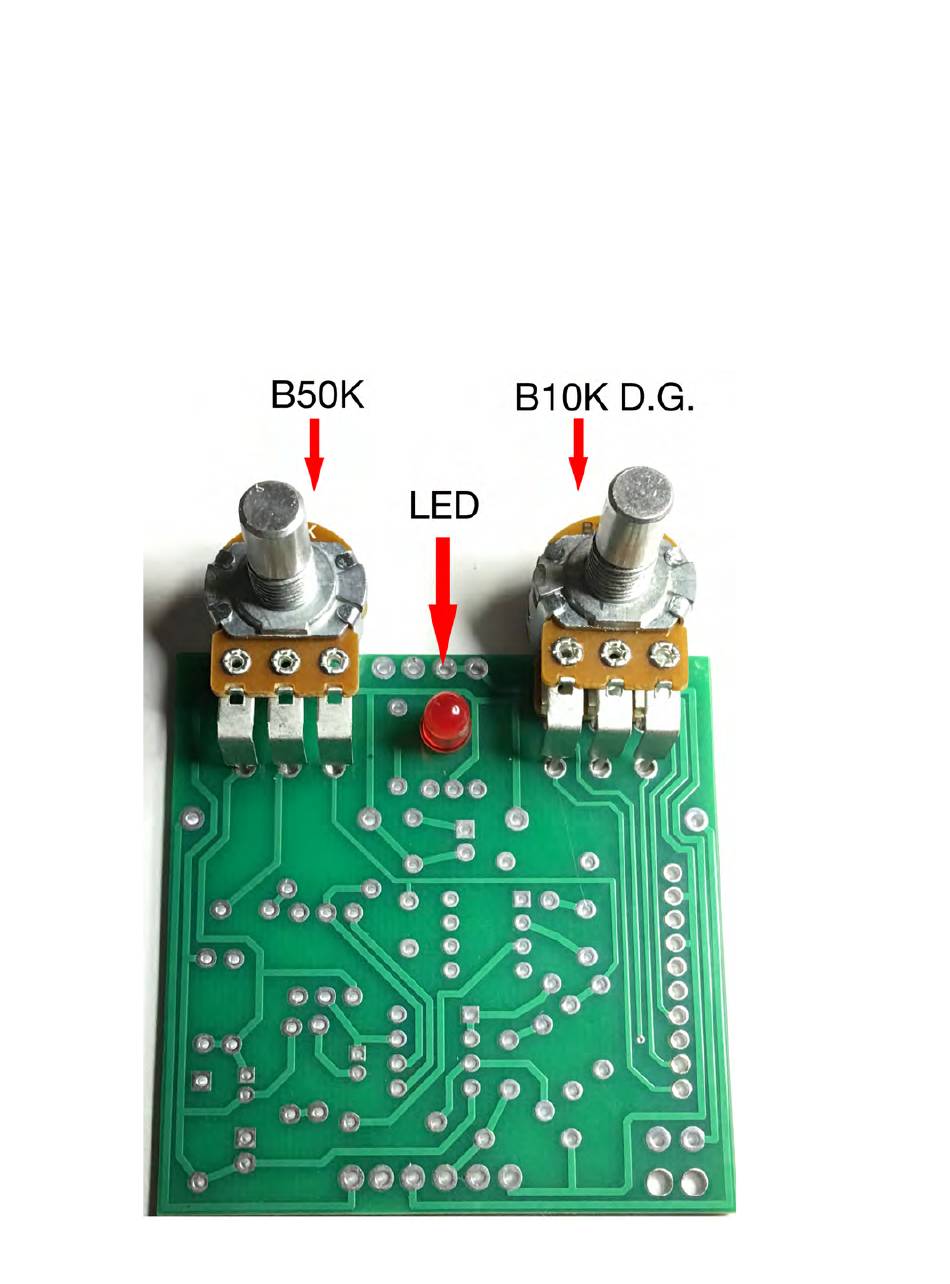

Step 2: Flip the PCB over so that the bottom or solder side is up. Insert the
B50k potentiometer (Reverb), B10k dual gang potentiometer (Dwell), and
the LED into the bottom side of the PCB.
DO NOT SOLDER ANYTHING
YET!!!
The LED will have one lead that is longer than the other.
THIS
WILL GO INTO THE SQUARE SOLDER HOLE.
