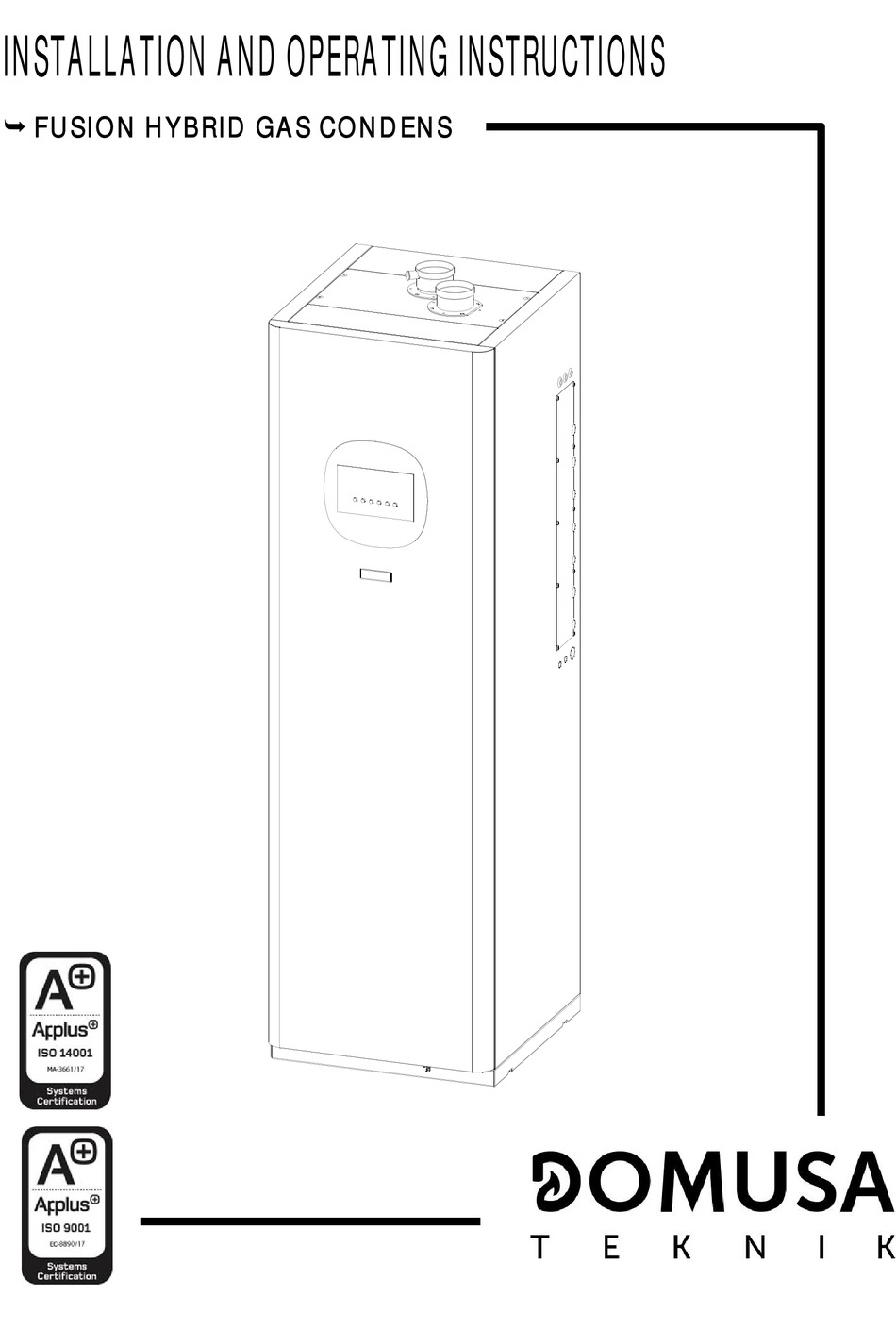

INSTALLATION AND OPERATING INSTRUCTIONS
 FUSION HYBRID GAS CONDENS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion Hybrid Gas Condens and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DOMUSA TEKNIK Fusion Hybrid Gas Condens

Summary of Contents for DOMUSA TEKNIK Fusion Hybrid Gas Condens

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS  FUSION HYBRID GAS CONDENS...
  • Page 2 Thank you for choosing a DOMUSA TEKNIK heating boiler. You have chosen the Fusion Hybrid Gas Condens model from the DOMUSA TEKNIK product line. With a suitable hydraulic installation, this gas- fired module will provide the ideal level of comfort for your home. You will also be able to enjoy a balanced, economical supply of domestic hot water.

  • Page 3: Table Of Contents

    ÍNDICE Pág. 1 SAFETY WARNING ................................3   2 LIST OF COMPONENTS ..............................6   3 CONTROL COMPONENTS ..............................7   3.1 D ....................................8  IGITAL DISPLAY 4 INSTALLATION INSTRUCTIONS ............................. 9   4.1 L ......................................9  OCATION 4.2 H .
  • Page 4 Fusion Hybrid Gas Condens 12.4 C ..................................39  HILD PROTECTION 12.5 M ............................39  ODULE PRESSURE SENSOR FUNCTION 12.6 A ..................................40  IR PURGE FUNCTION 12.7 S ....................................41  ERVICE 12.8 C (“AUTO” ) ......................42  ONNECTING THE ROOM THERMOSTAT MODE 12.9 R...

  • Page 5: Safety Warning

    1 SAFETY WARNING 1.1 Safety symbols All safety messages indicate a potential risk of breakdown or damage. Follow the instructions carefully to prevent accident or damage. DANGER This symbol warns of operations or situations involving imminent danger and which could cause severe damage or even death if they are not avoided.
  • Page 6 Fusion Hybrid Gas Condens DANGER Breathing in combustion gases (flue gases) can cause serious damage to health by poisoning. Switch off the heating. Ventilate the room. Close all doors to prevent the gas from reaching other rooms. Do not switch on any switches or electrical appliances.
  • Page 7 Please carefully read this instruction manual and keep it in a safe, easily-accessible place. DOMUSA TEKNIK shall not be held liable for any damage that may occur due to failure to follow these instructions.

  • Page 8: List Of Components

    Fusion Hybrid Gas Condens 2 LIST OF COMPONENTS 1. Flue gas outlet 11. Fan 2. Combustion chamber 12. Gas valve 3. Primary manometer 13. Pump 4. Condensate siphon 14. 3 way valve (G1´) 5. 3 way valve (G1) 15. DHW safety valve 6.

  • Page 9: Control Components

    3 CONTROL COMPONENTS 20. Digital display This is the main boiler functioning display, 25. Navigation increase button ( ) on which all the operating information, It is used to navigate through the different settings and values appear. menus. 21. MODE button 26.

  • Page 10: Digital Display

    Fusion Hybrid Gas Condens 3.1 Digital display The Fusión Hybrid Gas Condens module is electronic and has a display for viewing the different settings. The display has various display areas where different icons and numbers appear to indicate the different statuses of the module.

  • Page 11: Installation Instructions

    4 INSTALLATION INSTRUCTIONS The Fusion Hybrid Gas Condens module can only be installed in combination with a heat pump from the DUAL CLIMA line, supplied by DOMUSA TEKNIK. Therefore, for its operation, these devices should be connected to each other, both hydraulically and electrically. In this section, the necessary operations for said connection are described in detail.

  • Page 12: Hydraulic Installation Of The Heating And Dhw Circuit

    - The condensation pipe must lead to a drain outlet, as the Fusion Hybrid Gas Condens module is a gas condensation module, and a large amount of water may be generated. In addition, before starting up the boiler, it is advisable to fill the condensation outlet siphon tube with water, so that the flue gases do not exit through this tube.

  • Page 13: Hydraulic Installation Of A Support Pump (C4)

    4.3 Hydraulic installation of a support pump (C4) The Fusion Hybrid Gas Condens hydraulic module allows the installation of a circulation pump to increase the water flow rate of the machine where necessary, in addition to that obtained by its internal pump.

  • Page 14: Gas Circuit Connection

    " "). Make sure that the appliance is grounded. In addition, for the correct operation of the Fusion Hybrid Gas Condens, it is also necessary to Connection to the general connect the heat pump to the power supply as indicated in the section “...
  • Page 15 DUAL CLIMA heat pump to the inside of the Fusion Hybrid Gas Condens module on terminals 28 and 29. Finally, the support circulation pump C4 will be connected to terminals 26 and 27 of the module terminal block (see...

  • Page 16: Assembly Of The Dhw Probe

    Fusion Hybrid Gas Condens 4.6 Assembly of the DHW probe For the correct operation of the Fusion Hybrid Gas Conden hydraulic module, the DHW probe, supplied in the DUAL CLIMA heat pump, must be inserted in the bulb sheath provided in the module tank.

  • Page 17: Assembly And Connection Of The Control Panel

    The control panel is supplied inside the heat pump and must be mounted on the front of the Fusion Hybrid Gas Condens hydraulic module. To do this, open the module door and access the control pannel holder located in the rear part. For its correct assembly, please carefully follow the following steps: 1.- Open the door of the Fusion Hybrid Gas Condens module...

  • Page 18: Configuring The Heat Pump

    To do this, pass the cable that is supplied inside the heat pump (located alongside the probe harness) to the interior of the Fusion Hybrid Gas Condens module. The hydraulic module has a series of cable glands at the rear, through which it is possible to insert such cables into the module.

  • Page 19: Combustion Product Removal

    The combustion product exhaust ducts must be installed by qualified personnel and must comply with current legislation and standards. The Fusion Hybrid Gas Condens module is a sealed oil-fired boiler, and the combustion products are therefore removed through an outlet pipe, with a separate air intake from outside. We...
  • Page 20 Fusion Hybrid Gas Condens CAUTION The terminal must be fitted with suitable protection if it is less than 2 metres from a balcony, on a flat roof or surface that could be accessed by people. The wall the gas removal and air intake ducts are fixed to must not be made of combustible or flammable materials, and the wall the end of the duct passes through must lead to the outside of the home.

  • Page 21: Combustion Product Removal

    Carefully study the diagrams representing the different types of removal and select the one that best suits the conditions of your installation. To choose the removal accessories required for each installation, please refer to the list of accessories on the DOMUSA TEKNIK price list. Maximum total length:...

  • Page 22: Type Cdual Horizontal Flow Removal And Intake Systems

    Fusion Hybrid Gas Condens 5.1 Type C dual horizontal flow removal and intake systems For this type of boiler, combustion product removal and air intake take place through separate Ø80/80 mm ducts, using the Ø80/80 dual duct outlet kit, code CGAS000325.

  • Page 23: Type Cdual Horizontal Flow Removal And Intake Systems

    5.2 Type C dual horizontal flow removal and intake systems For this type of boiler, combustion product removal and air intake take place through separate Ø80/80 mm ducts, using the Ø80/80 dual duct outlet kit, code CGAS000325. It is advisable to fit the removal pipe in a slightly upwardly-inclined direction, at around 2-3º, thus preventing any water and condensation from dripping out.

  • Page 24: Changing From Dual Duct Flue Gas Removal To Coaxial Flue Gas Removal

    5.3 Changing from dual duct flue gas removal to coaxial flue gas removal The Fusion Hybrid Gas Condens module has a Ø80 dual duct system for combustion product removal and air intake. To perform the removal of combustion products by means of a Ø60/100 or Ø80/125 coaxial system, it must be used an adaptor kit (supplied under request).

  • Page 25: Type Chorizontal Coaxial Removal And Intake Systems

    5.4 Type C horizontal coaxial removal and intake systems Removal of combustion products and air intake may be made via concentric Ø60/100 pipes (60 mm for combustion product removal and Ø100 mm for air intake) or through concentric Ø80/125 pipes (80 mm for combustion product removal and Ø125 mm for air intake).

  • Page 26: Vertical Coaxial Removal And Intake Systems

    Fusion Hybrid Gas Condens 5.5 Type C vertical coaxial removal and intake systems Removal of combustion products and air intake may be made via concentric Ø60/100 pipes (60 mm for combustion product removal and Ø100 mm for air intake) or through concentric Ø80/125 pipes (80 mm for combustion product removal and Ø125 mm for air intake).

  • Page 27: Starting Up The Boiler

    Once the installation is full, close the disconnector valves. The Fusion Hybrid Gas Condens module have a pressure sensor for controlling the pressure of the installation. If it drops below 0.05 MPa (0.5 bar), a low pressure alarm ("E02") will appear on the display.").
  • Page 28 Fusion Hybrid Gas Condens installation. - The gas installation pipes must be made of suitable materials and comply with the applicable legislation to this respect (RIGLO). - The gas connection must be made using a rigid pipe, inserting a shut-off valve between the boiler and the pressure regulator.

  • Page 29: Electrical Connection

    6.5 Electrical connection The module electrical connections must be made by sufficiently qualified staff in strict compliance with the sections below and with any electrical safety regulations applicable at time of installation. DANGER It must be ensured that the module is disconnected from the electrical supply before carrying out any servicing inside the module and, particularly, on the electric terminal strips.

  • Page 30: Installation Hand-Over

    Fusion Hybrid Gas Condens 6.7 Installation hand-over After the initial start-up, the Technical Assistance Service will explain to the user how the module functions, making any observations they consider relevant. The installer is responsible for clearly explaining to the user the functioning of any control or...

  • Page 31: Operation

    7 OPERATION The Fusion Hybrid Gas Condensmodule is a gas condensing supporting module of the DUAL CLIMA heat pump. Therefore, its operation will be fully managed by the DUAL CLIMA heat pump controllers “Assembly and connection connected to it, which should be mounted on the front of the module (see of the control panel”).

  • Page 32: Selecting The Module Setpoint Temperature

    7.3 Operating in “auto” mode This will be the default operating mode of the Fusion Hybrid Gas Condens module. In this mode, the operation will be managed by the DUAL CLIMA heat pump, as indicated in the instruction manual of “Configuration of auxiliary or supporting...

  • Page 33: Operation With The Dhw Selector (27)

    (27) 7.4 Operation with the DHW selector (27) For greater comfort in DHW, by means of the DHW selector , it is possible to change the operating mode and energy source that will work on the DHW demand. (27) By turning the DHW selector to position the supporting module becomes the main energy source for the DHW demand.

  • Page 34: Operation With Room Thermostat

    DHW demand. 7.6 Operation with room thermostat The Fusion Hybrid Gas Condens module Avanttia NG boiler includes a connection prepared for "Connection of the the installation of a room chronothermostat or ambient room thermostat ( see room thermostat"...

  • Page 35: Menú Info

    8 MENÚ INFO "Menu Info" shows information and counters of the module on the digital screen at any time. "Menu Info 8.1 Access to "Menu Info" Follow the instructions below to access the Press the buttons and RESET simultaneously until the circle is completed.

  • Page 36: Menu Info" Parameters

    Fusion Hybrid Gas Condens Menu Info” 8.2 “ parameters The following table shows the information and counters on the module status. The values shown on this menu cannot be modified. Parameter AL 0 – AL 9 Last 10 errors of the boiler...

  • Page 37: Technical Menu

    Therefore, most parameters of the "Technical Menu should only be modified by personnel authorised by DOMUSA TEKNIK. Nevertheless, some technical parameters will be useful for the installer and/or user, and should be adjusted by them, depending on the desired performance characteristics in the home.

  • Page 38: Technical Menu" Parameters

    Fusion Hybrid Gas Condens "Technical Menu" Parameters The following is a list of parameters that can be adjusted by the installer and/or user. DOMUSA TEKNIK will not be held liable for any damage caused by an incorrect modification of these parameters by unauthorised personnel.
  • Page 39 Nº. Parameter Range Cycled time for pump activation: zone (1/1 min.) 1 ~ 10 Child protection 0 ~ 1 Height offset parameter (1:100 m) 0 ~ 20 Water hammer delay (s) 0 ~ 3 Automatic display shut-down (s) 0 ~ 120 120 (GN) Reserved 80 ~ 160...

  • Page 40: Heating Circuit Adjustments

    Fusion Hybrid Gas Condens 10 HEATING CIRCUIT ADJUSTMENTS The Fusion Hybrid Gas Condens module is equipped with an electronic control for efficiently regulating the automatic functioning of the module. It also has the following additional control features: 10.1 Heating power adjustment: The Fusion Hybrid Gas Condens module is configured to modulate between minimum and maximum burner power.

  • Page 41: Additional Functions

    12 ADDITIONAL FUNCTIONS The Fusion Hybrid Gas Condens module includes the following additional control functions: 12.1 Burner anti-cycling functioning Parameter P05 is used to adjust the minimum interval between burner start-ups. It is used in installations with very low thermal inertia, to prevent excessively consecutive burner ignition and extinction cycles, ensuring smoother burner functioning and avoiding premature wear to the burner components.

  • Page 42: Air Purge Function

    WARNING This procedure must be performed by authorised personnel of DOMUSA TEKNIK. Make sure that the pressure in the module is adequate and that the automatic drain cover is open.

  • Page 43: Service Mode

    12.7 Service Mode The Fusion Hybrid Gas Condens module includes a service mode that allows testing its minimum and maximum power. Press the MODE and RESET buttons simultaneously until the circle is completed to set the module in the test mode.

  • Page 44: Connecting The Room Thermostat ("Auto" Mode)

    Fusion Hybrid Gas Condens 12.8 Connecting the room thermostat (“AUTO” mode) The Fusion Hybrid Gas Condens module is prepared for the connection of up to 2 room “Connection Diagram” programmable thermostats or room thermostats (see ), which will activate or...
  • Page 45 Connecting a switched thermostat for Heating/Cooling with 3 wires (“AUTO” mode) In addition to selecting the desired temperature and periods of operation, this type of thermostat, if it is of the programmable thermostat type, offers users the possibility of selecting the mode of operation (Heating /Cooling ) in the thermostat itself.
  • Page 46 Fusion Hybrid Gas Condens Connecting the two room thermostats In this type of configuration, two single room thermostats will be connected, one in terminals 27 and 29 (TAF Cooling thermostat) and one in terminals 27 and 28 (TAC Heating thermostat). Each of them manages a different operating mode, so each thermostat must be of a type compatible with the operation for which it has been installed.
  • Page 47 Connecting the room thermostat In this type of configuration, a single room thermostat will be connected in inputs 27 and 29 (TAF Cooling thermostat) or in inputs 27 y 28 (TAC Heating thermostat). For this room thermostat management configuration to work correctly, the heat pump should be configured for a single “Heat pump configuration”...

  • Page 48: Reset Default Values Of Fan Parameters

    Fusion Hybrid Gas Condens 12.9 Reset default values of fan parameters In case of incorrect adjustment of the fan, the original values of the parameters related to the fan setting can be restored. Press the buttons and RESET simultaneously until the circle is "Technical Menu"...
  • Page 49 Select value of parameter P01=01. Press RESET until the circle is completed to register the value. Press and RESET simultaneously until the circle is completed to "Technical Menu" exit the The default values are restored.

  • Page 50: Shutting Down The Module

    Fusion Hybrid Gas Condens 13 SHUTTING DOWN THE MODULE In the Off mode, while the boiler is plugged into the mains and connected to the fuel installation, its heating and DHW functions will be switched off but the anti-frost protection and pump anti-block functions will remain activated.

  • Page 51: Draining The Module

    14 DRAINING THE MODULE (19) The water is drained from the module by opening the air drain valve , located inside the module on the lower left hand side of the heat exchanger. Connect a flexible tube to this valve and run it to a drain.

  • Page 52: Safety Interlocks

    Fusion Hybrid Gas Condens 15 SAFETY INTERLOCKS The module's electronic control system may activate the following safety interlocks to stop the module's operation. When any of these interlocks occurs, the module stops working and an interlock code appears on the display.

  • Page 53: Module Maintenance

    16 MODULE MAINTENANCE To maintain the moduel in perfect working order, a yearly service should be performed by personnel authorised by DOMUSA TEKNIK. Module and flue maintenance The most important aspects to be checked are as follows: - The water pressure in the heating installation, when the water is cold, must be between 0.1 and 0.15 MPa (1 and 1.5 bar).
  • Page 54 Fusion Hybrid Gas Condens Anti-frost protection The module Fusion Hybrid Gas has a function for preventing frost damage to the installation. This will function as long as the appliance remains plugged into the mains. Despite this function, and particularly in areas with very cold weather, we recommend taking precautions in order to prevent damage to the module.

  • Page 55: Combustion Adjustment

    As described on the plate plate, the module Fusion Hybrid Gas Condens is adjusted by default to run on Natural Gas. In case of working with another type of gas, it will be necessary to replace the gas through parameter P02 of the "Technical Menu"...

  • Page 56: Adjustment Process

    Fusion Hybrid Gas Condens 17.2 Adjustment process The CO value should be adjusted as follows. Make sure that the air intake pipe of the module is fully closed and that the sealing is ensured during calibration. Make sure that all radiator valves are open during adjustment, or if necessary, the calibration process will be interrupted if the module reaches the maximum temperature limit.
  • Page 57 Once the module stabilises, the P2 value "Maximum power" will appear on the display. Check the O level and use the navigation buttons so that the O2 level is adjusted to the rated values indicated in the table of measurement values. Press the MODE button until the circle is completed.

  • Page 58: Adapting The Boiler To Other Gas Types

    18 ADAPTING THE BOILER TO OTHER GAS TYPES As described on the date plate, the module Fusion Hybrid Gas Condens is adjusted by default to run on Natural Gas. In case of working with another type of gas, it will be necessary to change the gas.

  • Page 59: Electrode Position

    19 ELECTRODE POSITION It is important that the electrode is properly located as indicated in the following images.

  • Page 60: Circulating Pump Flow Curves For Heating

    Fusion Hybrid Gas Condens 20 CIRCULATING PUMP FLOW CURVES FOR HEATING The graphs below can be used to obtain the hydromotive pressure available in the installation at the module output, taking the boiler pressure drop and pump functioning curves into account.

  • Page 61: Diagrams And Measurements

    21 DIAGRAMS AND MEASUREMENTS VSES VSES VSES SC Connection IC: Direct circuit heating./ Air Conditioning Flow, Ø22 1" M RC: Direct circuit heating / Air Conditioning Return, Ø22. 1" M IBC: Heat pump flow, Ø22 1" M RBC: Heat pump return, Ø22 1"...

  • Page 62: Technical Characteristics

    Fusion Hybrid Gas Condens 22 TECHNICAL CHARACTERISTICS FUSION HYBRID GAS FUSION HYBRID GAS Unit CONDENS 24 CONDENS 24 /160 D9.24.HDX160 Code D9.24.HDX120 Condensing Boiler Type Heating and hot water production Gas Circuit Gas Type Gas Supply Pressure mbar Gas Consumption at Maximum m³/h...
  • Page 63 FUSION HYBRID GAS FUSION HYBRID GAS Unit CONDENS 24 CONDENS 24 /160 D9.24.HDX160 Code D9.24.HDX120 Domestic Hot Water Circuit Maximum DHW Heat Input 28,8 28,8 27,7 31.1 31.1 31.1 Minimum DHW Heat Input Tank capacity Maximum Water Pressure Temperature Adjustment Range ºC 10-65 10-65...

  • Page 64: Elecrical Diagram

    Fusion Hybrid Gas Condens 23 ELECRICAL DIAGRAM...
  • Page 65 Components of Fusion Hybrid Gas Condens module V: Fan. TS: Safety thermostat. BC: Circulation pump. : PWM cable for circulation pump. C: Module ground connection. V3V G1: Heating/DHW 3-way valve. EI: Ionisation electrode. V3V G1´: : Heating/DHW 3-way valve. : Fan PWM cable.

  • Page 66: Alarm Codes

    Fusion Hybrid Gas Condens 24 ALARM CODES The module Fusion Hybrid Gas Condens has an electronic circuit which performs continuous self- testing to detect any malfunctioning in the module. When the electronic control detects malfunctioning, this is indicated by an alarm code flashing on the digital display. The table below...
  • Page 67 Code Cause Solution ∆T error due to ignition Contact SAT E 72 failure Absolute values of current Disconnect the boiler from the mains, connect and press E 77 RESET. Contact SAT if the error persists. reached Maximum adjustment values Disconnect the boiler from the mains, connect and press E 78 reached RESET.

  • Page 68: List Of Spare Parts

    Fusion Hybrid Gas Condens 25 LIST OF SPARE PARTS FUSION HYBRID GAS tank Nº Code Description Nº Code Description SCON002162 BASE CTOR000092 NUT DIN-934 M8 SCON002450 BASE 24/160 SCHA007431 BRIDGE COVER CTOR000127 SCREW DIN-912 M8X25 CTOR000080 FLAT WASHER DIN-9021 M8...
  • Page 69 FUSION HYBRID GAS structure Nº Code Description Nº Code Description SCHA013381 REAR RIGHT-HAND SIDE FRAME SCHA013308 RIGIDITY SCHA014273 SCHA014250 RIGIDITY 24/160 REAR RIGHT-HAND SIDE FRAME 160 SCHA013382 REAR LEFT-HAND SIDE FRAME SCHA013374 RIGIDITY FIXING SCHA014274 REAR LEFT-HAND SIDE FRAME 160 CTOR000077 SCREW.
  • Page 70 Fusion Hybrid Gas Condens FUSION HYBRID GAS burner Nº Code Description Nº Code Description COMBUSTION CHAMBER AND 25 CVAL000074 BY-PASS VALVE SCON002200 BURNER 24/30 26 CFOL000008 COUNTER THREAD BUTTRESS CFOV000025 EXPANSION VESSEL 8L 27 SCHA013205 MIXER CLIP CFOG000023 HEX-LOCKNUT ½ "...
  • Page 71 FUSION HYBRID GAS burner Nº Code Description Nº Code Description SCOB013054 HEATING RETOURN PIPE SCHA006710 REAR WASHER 1” SCOB013171 HEATING RETOURN PIPE 24/160 CFOL000074 SLIDING NUT WITH FLANGE 1” CFOV000158 3/4” WASHER CFER000008 RED PLUG 1” SCOB013055 HEATING RETOURN PIPE SCHA006693 REAR WASHER ¾...
  • Page 72 Fusion Hybrid Gas Condens FUSION HYBRID GAS plumbing 16 17 4 26 30 29 Nº Code Description Nº Code Description CFOV000068 DHW EXPANSION VESSEL 4 L 18 STUR000209 DISCHARGE TUBE (COMPLETE) CTOR000221 SCREW DIN-7981 3,2 X 6,5 19 STUR000203 WATER COLLECTION TUBE...
  • Page 73 FUSION HYBRID GAS plumbing 21 11 12 Nº Code Description Nº Code Description CVAL000023 FILLING DISCONNECTOR 14 CFOL000017 CONNECTING TUBE NIPPLE 1/2" CFOV000159 GASKET 3/8” CFER000231 CLAMP 8-16 SCOB013096 DISCONNECTOR TUBE 16 STUR000194 FLEXIBLE PVC TUBE SCOB013185 DISCONNECTOR TUBE 24/160 17 CFOL000094 BRASS CROSS 1/2”...
  • Page 74 Fusion Hybrid Gas Condens FUSION HYBRID GAS 22 23 22 23...
  • Page 75 Nº Code Description Nº Code Description SEXT000557 FRONT PANEL CFER000317 MOBILE PART HINGE SEXT000797 FRONT PANEL 24/160 17 CTOR000253 SCREW DIN-7991 M6X16 SEXT000555 LEFT-SIDE PANEL 18 SEPO003162 HINGE SUPPORT SEXT000794 LEFT-SIDE PANEL 24/160 CFER000221 CONCEALED HINGE SEXT000561 FRONT TOP COVER CFER000126 TORSION CLAMP SEXT000796...
  • Page 76 Fusion Hybrid Gas Condens FUSION HYBRID GAS Electrical Front Panel SELEDCL000 SELEAVA015 SELEAVA016 27 28 29 18 19 Nº Code Description Nº Code Description SCON002317 DISPLAY BRACKET CELC000547 THERMOSTAT 60º SCON002480 DISPLAY BRACKET 24/160 17 CTOR000193 SCREW. DIN-7985 M4X5 CELC000099...
  • Page 77 FUSION HYBRID GAS Wires Nº Code Description Nº Code Description SOPE000222 POWER CABLE CELC000530 IGNITION CABLE CELC000505 FAN POWER CABLE COMBUSTION CHAMBER EARTH CELC000537 CABLE CELC000506 FAN PWM CABLE CELC000538 CARD EARTH CABLE SOPE000223 PUMP AND 3WV POWER CABLE 13 CMAZ000147 FUSION HYBRID GAS HARNESS CELC000508 PUMP AND 3WV PWM CABLE 14 CQUE000036 BRIDGE...
  • Page 78 Fusion Hybrid Gas Condens NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 79 NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 80 FACTORY & OFFICES Apartado 95 Bº San Esteban s/n 20730 AZPEITIA 20737 RÉGIL (Gipuzkoa) Tel: +34 943 813 899 www.domusateknik.com DOMUSA TEKNIK reserves the right to introduce, without prior notice, any change in the *CDOC002047* characteristics of its products. CDOC002047 05/20...
