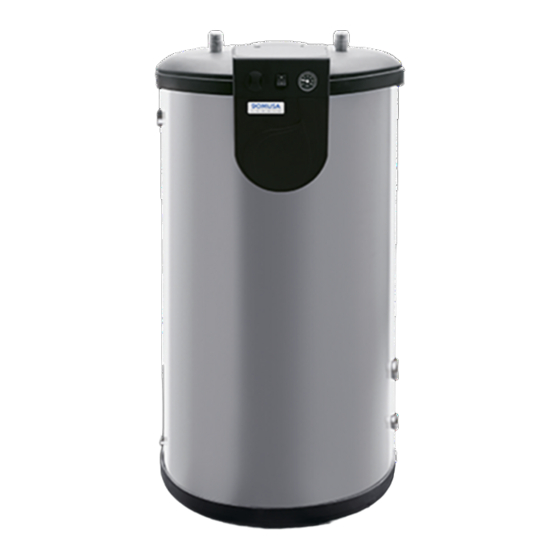

DOMUSA TEKNIK SANIT S 100 Installation And Operating Instructions Manual
  1. Manuals
  2. Brands
  3. DOMUSA TEKNIK Manuals
  4. Boiler
  5. SANIT S 100
  6. Installation and operating instructions manual

DOMUSA TEKNIK SANIT S 100 Installation And Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

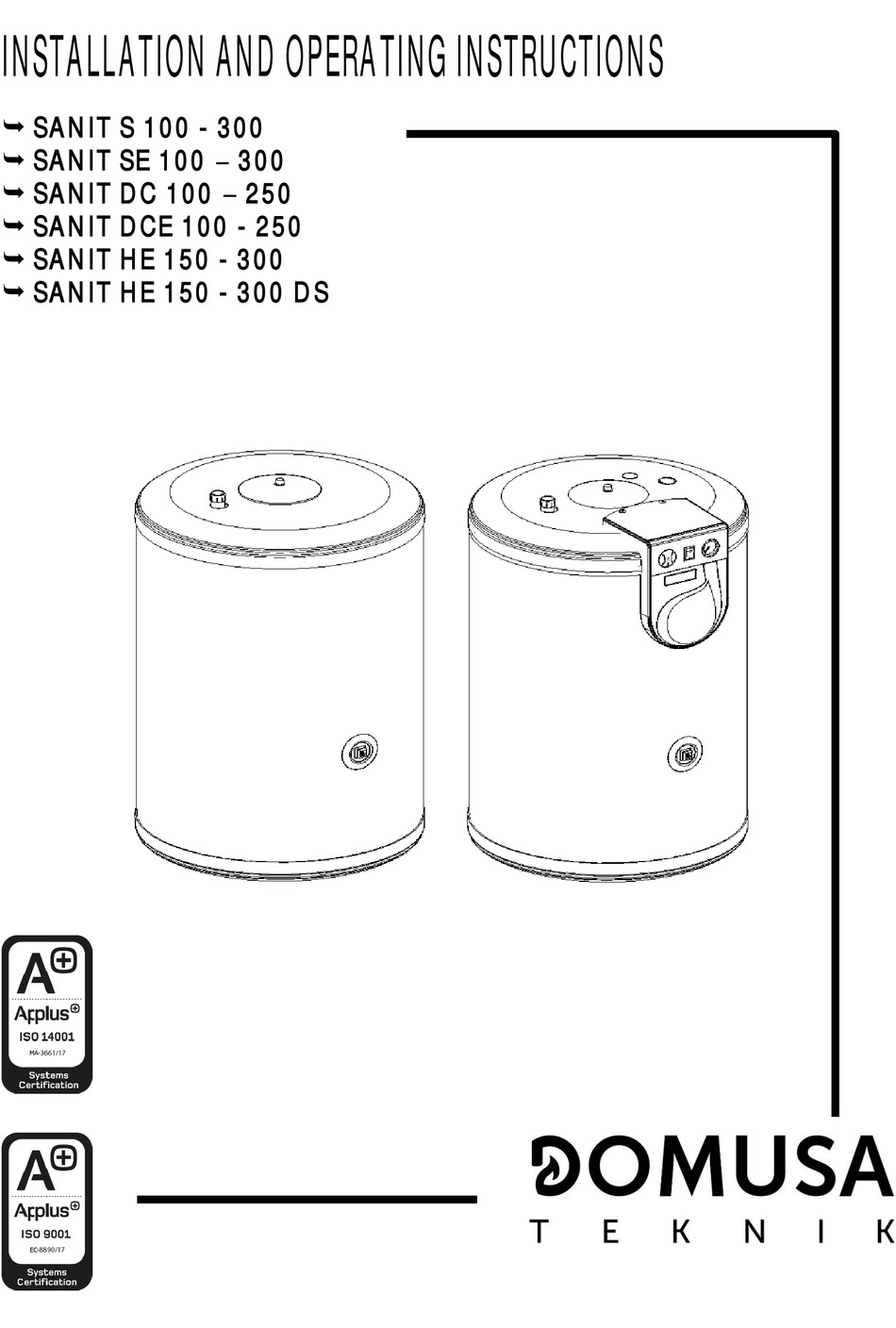

INSTALLATION AND OPERATING INSTRUCTIONS
 SANIT S 100 - 300
 SANIT SE 100
300
 SANIT DC 100
250
 SANIT DCE 100 - 250
 SANIT HE 150 - 300
 SANIT HE 150 - 300 DS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANIT S 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DOMUSA TEKNIK SANIT S 100

Summary of Contents for DOMUSA TEKNIK SANIT S 100

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS  SANIT S 100 - 300  SANIT SE 100  SANIT DC 100  SANIT DCE 100 - 250  SANIT HE 150 - 300  SANIT HE 150 - 300 DS...
  • Page 2 Thank you for choosing a DOMUSA TEKNIK product. From the range of DOMUSA TEKNIK products you have chosen the Sanit model, a stainless steel hot water tank for producing domestic hot water (DHW), which together with a DOMUSA TEKNIK heating boiler will provide the ideal level of comfort for your home.

  • Page 3: Table Of Contents

    6 DIAGRAM AND ELECTRICAL CONNECTION (ONLY FOR SANIT SE AND SANIT DCE) ..........13 6.1 E ........................................13 LECTRICAL DIAGRAM 6.2 E ..................................14 LECTRICAL CONNECTION TO THE BOILER 6.3 D DOMUSA TEKNIK : ..........................14 IAGRAMS FOR CONNECTION TO BOILERS 6.4 I SANIT : ..........15 NSTRUCTIONS FOR ELECTRICAL CONNECTION OF THE STORAGE HEATER TO THE FOLLOWING BOILERS 7 DRAINING THE TANK ..................................

  • Page 4: Safety Components

    It is recommendable to add anti-freeze to the water in the primary circuit of the tank. The anti-freeze used must be compatible with public health regulations and it must not be toxic. DOMUSA TEKNIK recommends the use of propylene glycol, consulting the product manufacturer before use.

  • Page 5: List Of Components

    2 LIST OF COMPONENTS Sanit S / SE 150 to 300 SP: Primary outlet. EP: Primary inlet. 1. Front cover (only Sanit SE). ES: Domestic cold-water inlet. 2. Bridge cover. SS: Domestic hot water outlet. 3. Control panel (only Sanit SE). R: Resistance socket.
  • Page 6 Sanit Sanit DCE/ DC SP: Primary outlet. EP: Primary inlet. 1. Front cover. ES: Domestic cold-water inlet. 2. Bridge cover. SS: Domestic hot water outlet. 3. Control panel. TP: Drain valve socket.
  • Page 7 Sanit HE 200 - 300 2. Bridge cover. SP: Primary outlet. EP: Primary inlet. ES: Domestic cold-water inlet. SS: Domestic hot water outlet. R: Resistance socket. C: Recirculation socket.
  • Page 8 Sanit Sanit HE DS SP1: Main primary outlet. EP1: Main primary inlet. 2. Bridge cover. SP2: Auxiliary primary outlet. EP2: Auxiliary primary inlet. ES: Domestic cold-water inlet. SS: Domestic hot water outlet. C: Recirculation socket.

  • Page 9: Control Components (Only Sanit Se And Sanit Dce)

    3 CONTROL COMPONENTS (ONLY SANIT SE AND SANIT DCE) 1. Adjustment thermostat: 3. Thermometer: This control is for adjusting the desired This indicates the temperature of the hot temperature of the hot water stored in the tank. water stored in the tank. 2.

  • Page 10: Installation Instructions

    Sanit 4 INSTALLATION INSTRUCTIONS 4.1 Hydraulic installation The DHW circuit of the accumulator is prepared for permanent connection to the mains water supply through the cold- imum pressures are indicated. The hydraulic installation must be made by qualified technicians, in compliance with current installation regulations and taking the following recommendations into account: - The secondary circuit (or domestic water circuit) is to be equipped with a safety valve, calibrated to a maximum of 7 bar.

  • Page 11: Sanit Dce Installation

    4.3 Sanit DCE installation The design of the hot water tank enables it to be installed in three different positions. In the case of the Sanit DCE range, the installation of the tank will be made on the wall, either horizontally or in a wall position (vertical - inverted), with the sockets facing downwards.
  • Page 12 Sanit Wall and floor installation: If the installation is made with the hot water tank standing on the floor, the drain valve DV could be be used, and the rest of the sockets will be as shown. IMPORTANT: It is essential to leave enough space above the accumulator, in order to manipulate the elliptical cover.

  • Page 13: Location

    , we recommend installing a cathodic protection inside the storage heater to avoid premature wear to the hot water tank. DOMUSA TEKNIK optionally supplies a suitable electronic cathodic protection for its range of storage heaters. To install it, carefully read the assembly instructions supplied with the cathodic protection.

  • Page 14: Electrical Element (Sanit S And Sanit Se)

    DOMUSA TEKNIK optionally supplies three elements, of 1.5 kW, 2.5 kW and 3.5 kW. To install them, carefully read the assembly instructions supplied with the elements.

  • Page 15: Operation (Only For Sanit Se And Sanit Dce)

    If the tank is connected to a DOMUSA TEKNIK brand heating boiler, the boiler will be equipped with a summer or winter position switch, which is used to choose between: ☼...

  • Page 16: Electrical Connection To The Boiler

    Sanit 6.2 Electrical connection to the boiler The electrical connection between Sanit hot water tanks and DOMUSA TEKNIK heating boilers is made by simply connecting the tube shown in the electrical diagram, i.e. the T tube. Connect the tube to the side of the hot water tank as shown in the electrical diagram in section 6.1.

  • Page 17: Instructions For Electrical Connection Of The Sanit Storage Heater To The Following Boilers

    6.4 Instructions for electrical connection of the SANIT storage heater to the following boilers: • Evolution EV HFC • Sirena Cal He • Evolution EV HAC • Sirena Cal HV e The correct process for the electrical connection of the SANIT hot water storage heater to these boilers is as follows: - Connect the hot water temperature sensor (supplied optionally) to the sensor connector block J3 on the boiler (terminals 13 and 14).

  • Page 18: Draining The Tank

    Sanit 7 DRAINING THE TANK To drain the tank, on the Sanit SE, Sanit S, Sanit HE and Sanit HE DS models, a hose must be connected to the cold-water inlet. Check that the hose is securely fastened to the socket. Next, the lower opening of the hose should be placed in a nearby floor drain, so that the drain is at a lower level than that of the base of the tank.

  • Page 19: Maintenance

    9 START-UP For the guarantee to be valid, the hot water tank must be started up by an Official DOMUSA TEKNIK Technical Assistance Service. Before starting it up, the following must be ensured: - The electrical connection of the hot water tank is correctly made.

  • Page 20: Spares List

    Sanit 11 SPARES LIST 11.1 Hot water tank Sanit S and Sanit SE Code Name GELESAN007 Electrical board Sanit 100- 150 l (mod. SE) GELESAN009 Electrical board Sanit 200- 250 l (mod. SE) SCON001566 Elliptical plug Sanit S/ SE 100 l SCON001568 Elliptical plug Sanit S/ SE 150 l SCON001570...
  • Page 21 Sanit DCE/ DC Code Name GELESAN007 Electrical board Sanit 100- 150 l (mod. DCE) GELESAN009 Electrical board Sanit 200- 250 l (mod. DCE) SCON000093 Elliptical plug Sanit DCE/ DC 100 l SCON001567 Elliptical plug Sanit DCE/ DC 150 l SCON001569 Elliptical plug Sanit DCE/ DC 200 l SCON001784 Elliptical plug Sanit DCE/ DC 250 l...
  • Page 22 Sanit Sanit HE and HE DS Code Name SCON001645 Elliptical plug Sanit HE 150 SCON001642 Elliptical plug Sanit HE 200 SCON001650 Elliptical plug Sanit HE 300 SCON001646 Elliptical plug Sanit HE 200 DS SCON001651 Elliptical plug Sanit HE 300 DS SPIN000006 Bridge cover CTOR000080...

  • Page 23: Plugs And Embellisher

    11.2 Plugs and embellisher Code Name CFER000087 CFER000086 CFER000085 CFER000084 black embellisher CFER000134 red tapered plug CFER000082 CFER000049 CFER000007 CFOL000020 chromed plug CFOL000025 CFOL000055 CFER000083 Seal...

  • Page 24: Electrical Board (Sanit Se And Sanit Dce)

    Sanit 11.3 Electrical board (Sanit SE and Sanit DCE) Pos. Code Name Pos. Code Name CELC000099 Knob CACU000034 Control panel CELC000007 Control thermostat CELC000136 Thermometer CACU000036 Control panel cover CELC000025 Switch CACU000037 Control panel plug...

  • Page 25: Diagrams And Measurements

    12 DIAGRAMS AND MEASUREMENTS Sanit SE, Sanit S and Sanit HE MODEL SANIT SE / S / HE  581  581  581  608  608 Base measurement Height measurement 1.227 1.563 1.541 1.790 ES  Cold water inlet 3/4"...
  • Page 26 Sanit MODEL SANIT DCE/ DC  581  581  581  581 Base measurement Height measurement 1.227 1.563 1635  1/2" H TP1 drain valve socket 1/2" H 1/2" H 1/2" H  3/8" H TP2 drain valve socket 3/8"...
  • Page 27 Sanit HE DS MODEL SANIT HE DS  581  608 Base measurement Height measurement 1.563 1.790 ES  Cold water inlet 3/4" M 3/4" M SS  Hot water outlet 3/4" M 3/4" M EP/SP  (1) Primary inlet/outlet (1) 1"...

  • Page 28: Technical Characteristics

    Sanit 13 TECHNICAL CHARACTERISTICS MODEL SANIT S and SANIT SE Sanit 100 Sanit 150 Sanit 200 Sanit 250 Sanit 300 Installation Floor Total volume Max. storage temperature ºC Max. working pressure of hot water tank Max. primary temperature ºC Max. primary working pressure Empty weight Full weight Exchange surface...
  • Page 29 NOTES: ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 30 Sanit ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 31 ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 HEADQUARTERS & FACTORY Apartado 95 Bº San Esteban s/n 20730 AZPEITIA 20737 ERREZIL (Gipuzkoa) Telfs: (+34) 943 813 899 www.domusateknik.com DOMUSA TEKNIK, reserves the right to make modifications of any kind to its *CDOC001679* product characteristics without prior notice. CDOC001679 09/11/21...
