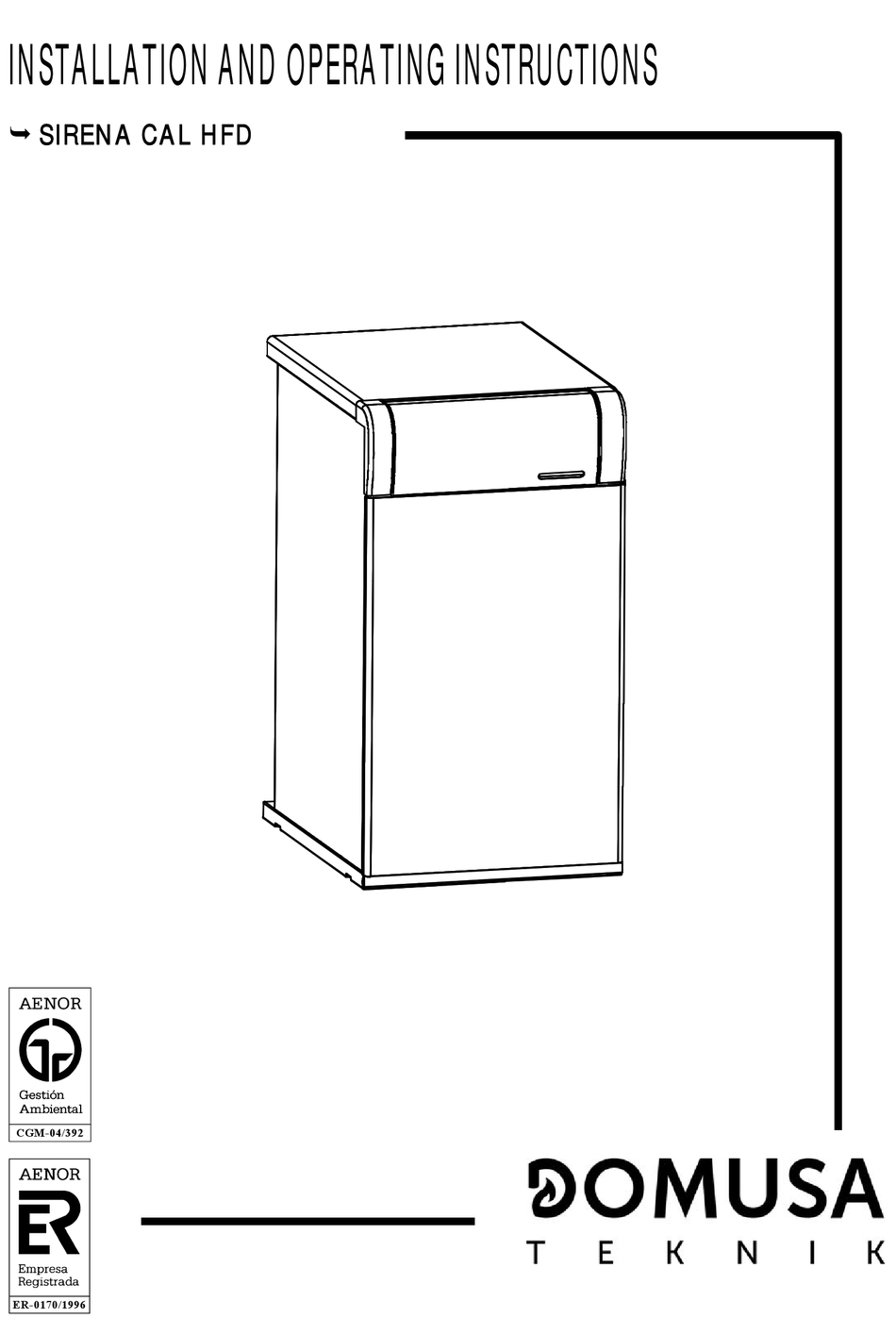

INSTALLATION AND OPERATING INSTRUCTIONS

 SIRENA CAL HFD
CGM-04/392
ER-0170/1996

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIRENA CAL HFD and is the answer not in the manual?

Questions and answers

Summary of Contents for DOMUSA TEKNIK SIRENA CAL HFD

  • Page 1: Installation And Operating Instructions

    INSTALLATION AND OPERATING INSTRUCTIONS  SIRENA CAL HFD CGM-04/392 ER-0170/1996...
  • Page 2 We thank you for having chosen a DOMUSA TEKNIK heating boiler. Within the product range of DOMUSA TEKNIK, you have chosen the Sirena model. This boiler is capable of providing you with the comfort level suitable for your house, and always together with a proper and oil fed hydraulic installation.
  • Page 3: Table Of Contents

    TABLE DES MATIÈRES Page 1 LIST OF COMPONENTS............................................2 2 CONTROL COMPONENTS..........................................3 3 INSTALLATION INSTRUCTIONS ........................................4 3.1 L ................................................4 OCATION 3.2 U ..................................................4 PTAKE 3.3 H .............................................4 YDRAULIC INSTALLATION 3.4 E ............................................4 LECTRIC INSTALLATION 3.5 O ..............................................4 IL INSTALLATION 4 INSTALLATION WATER-FILLING........................................5 5 SAFETY LOCKING ..............................................5 5.1 T ..........................................5...
  • Page 4: List Of Components

    Sirena Cal HFD 1 LIST OF COMPONENTS 11. Expansion vessel. 14. Heating circulating pump. 12. Automatic air vent. 15. Unidirectional valve. 13. Pressure relief valve. 16. Burner.
  • Page 5: Control Components

    2 CONTROL COMPONENTS 1. Safety thermostat: 6. Main selector: It ensures that the boiler temperature does not It allows the boiler to be switched on and off by exceed 110 ºC by locking its operation. pushing "O/I" button. 2. Control thermostat. 7.
  • Page 6: Installation Instructions

    It is essential for this type of boiler to be connected to an uptake, being defined as that flue being capable of generating a depression (in our case of 1.5 mmH O for Sirena Cal HFD). It is advisable, for the uptake to be capable of generating a depression, to follow the recommendations described below: - It is to be provided with a suitable thermal insulation.
  • Page 7: Installation Water-Filling

    6.1 Boiler operation with a Sanit hot water tank The model Sirena Cal HFD can be supplied with a Sanit DHW tank of DOMUSA TEKNIK to install them in combination, to obtain a high production of DHW. For a correct installation of the tank follow carefully the installation and operating instructions included with the tank.
  • Page 8: Timer-Based Operation (Optional)

    The start-up of the boiler, for the validity of warranty to be in force, is to be carried out by a Technical Assistance Service authorised by DOMUSA TEKNIK. Prior to proceeding to such a start-up, the following steps will be performed: - The boiler is to be electrically connected to the mains.
  • Page 9: Circulating Pumps Flow Curves

    - Once a year, we recommend to clean carefully boiler chamber and flue gases pipes. - The installation pressure is to be maintained between 1 and 1.5 bar. - If your boiler has been stopped for a long period of time, you should ensure that circulating pumps operate properly.
  • Page 10 Sirena Cal HFD Characteristic curve of the circulation pump for the constant speed mode I, II, III: Characteristic curve of the circulation pump for the variable differential pressure mode:...
  • Page 11: Dimensions

    13 DIMENSIONS 3/4" ø150 1/2" IC: Heating outlet. IC': Optional heating outlet (CAL HFD). RC: Heating inlet. IC/IC' DIM. MODEL RC/RC' V: Drainage VS: Pressure relief valve. HFD-30 3/4"M HFD-40 1"M HFD-50 1"M...
  • Page 12: Technical Data

    Sirena Cal HFD 14 TECHNICAL DATA 14.1 Acumulateur BT Duo 150-250 SIRENA CAL HFD 30 HFD 40 HFD 50 HFD Low temperature Boiler type Heating only Rated heat output rated Useful heat output 28,1 39,4 50,8 Useful heat output (30%)
  • Page 13: Electrical Diagrams

    15 ELECTRICAL DIAGRAMS White Orange Blue Black Brown Blue Green Green Blue Black Black 220 V B: Burner. TC: Control Thermostat (on boiler). SC: DHW tank Pump (summer pump). TS: Safety Thermostat (on boiler). HC: Heating circulating Pump. TF3: Antiinertia Thermostat: 93 ºC (on boiler). RT: Room thermostat.
  • Page 14: Burner Control Operating Sequence

    Sirena Cal HFD 16 BURNER CONTROL OPERATING SEQUENCE The burner’s LMO control box has a reset button which is the key element for resetting the burner control and activating/deactivating the diagnosis functions. The multi-colour LED on the reset button is the indicator for visual diagnosis.
  • Page 15: Failures

    17 FAILURES This section provides an index of the most common failures in both the burner and boiler. 17.1 Burner error code We have already mentioned that the burner is equipped with a cut-out system, indicated by the reset button light. It may cut out accidentally, and in this case the steady red light on this button will come on.
  • Page 16: Circulating Pump Status Codes

    Sirena Cal HFD 17.3 Circulating pump status codes The high efficiency pumps of the Bio M Underfloor Heating Hydraulic Kit include a Led (light) which displays their status. PUMP LIGHT DESCRIPTION STATUS CAUSE SOLUTION The pump is The pump operates...
  • Page 17: Burner

    18 BURNER 18.1 Mounting Fix the burner support to the boiler. Fix the burner to the support. This allows a correct inclination of the flame tube towards the combustion chamber. Mount the oil aspiration and return tubes, including the oil-filter in the aspiration. 18.2 oil installation "Domestic"...
  • Page 18: Dimensions

    Sirena Cal HFD 18.6 DIMENSIONS DIMENSIONS TABLE DIMENSION (mm) 292 265 140 152 215 290 ø80 205 100 100 ø90 F: Domestic D-3. F': Domestic D-4.
  • Page 19: Primary Combustion Air Adjustment

    18.7 primary combustion air adjustment To adjust the primary combustion air, turn the screw as shown on the drawing by means of a 6 mm. Allen wrench. To increase the airflow, turn it to the right and to decrease it, turn it to the left.
  • Page 20: Oil Installation Diagrams

    Sirena Cal HFD 1 - Pressure adjustment. SUNTEC - MOD. AS47C DANFOSS - MOD. BFP 21 L3 2 - Vacuometer nipple. 3 - Electrovalve. 4 - Manometer nipple. 5 - Oil outlet. 6 - Oil return. 7 - Oil inlet.
  • Page 21: Technical Data

    18.12 Technical data MODEL Min. heat outlet Kg/h Max. heat outlet Kg/h 4,65 Min. heat outlet kW min. 17,7 27,2 Max. heat outlet kW max. 35,5 55,2 Motor power at 2800 r.p.m. 90-110 W Type of control Mono-stage Electrical power 220/230 V - 50 Hz Weight Kg 12,5...
  • Page 22: Electrical Diagrams

    Sirena Cal HFD 18.15 electrical diagrams WITHOUT CONNECTOR WITHOUT PRE-HEATER  WITH CONNECTOR WITHOUT PRE-HEATER  S3 T2 T1 B4: Contact of hour-counter. FR: Photocell sensor. S3: Contact of blocking lamp. TR: Ignition transformer TC: Control thermostat. MB: Oil pump.
  • Page 23: Oil Easy Connection

    18.16 OIL EASY CONNECTION To connect and disconnect the red oil tube to the combustion line, proceed as follows: - Press the connector o-ring in the direction of the arrow shown below, and simultaneously pull the red tube. RED PIPE PRESS O-RING OIL EASY CONNECT RACOR...
  • Page 24: Burner Control Operating Sequence

    Sirena Cal HFD 18.17 BURNER CONTROL OPERATING SEQUENCE The burner’s LMO control box has a reset button which is the key element for resetting the burner control and activating/deactivating the diagnosis functions. Botón de rearme The multi-colour LED on the reset button is the indicator for visual diagnosis.
  • Page 25: Troubleshooting

    19 . TROUBLESHOOTING This section provides a list of the most common burner and boiler failures. 19.1 Burner error code We have already mentioned that the burner is equipped with a cut-out system, indicated by the reset button light. It may cut out accidentally, and in this case the steady red light on this button will come on.
  • Page 26: Guarantee Conditions

    The warranty will be considered null and void in the following cases: 1. The boiler has been installed without meeting the laws and regulations in force regarding the subject matter. 2. The boiler has been started up by personnel other than those authorized by DOMUSA TEKNIK.
  • Page 27: Conditions De La Garantie

    Les avaries provoquées par un mauvais usage ou une installation incorrecte, une source d’énergie ou un combustible inapproprié, une eau d’alimentation corrosive ou calcaire, une manipulation incorrecte de l’appareil et, en général, tout motif étranger à DOMUSA TEKNIK, sont exclues de cette garantie.
  • Page 28 Sirena Cal HFD NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 29 NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 30 Sirena Cal HFD NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 31 NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 Bº San Esteban s/n Ellesmere Port, CH65 9BF 20737 ERREZIL (Gipuzkoa) Tel: 0151 909 6222 Tel: (+34) 943 813 899 www.domusateknik.com DOMUSA TEKNIK reserves the right to make modifications of any kind to its product *CDOC001015* characteristics without prior notice. CDOC001015 08/16...
