MICROEDGE AND OMNICOM MOTHERBOARD REPLACEMENT

Replace cables

The cables that you connect to the new motherboard depend on the type of DC power cable that was used on the
motherboard you removed.
To discover which cables to use, look at the DC power cable connector on the old motherboard. If it has 24 pins, you
can use all the original cables on the new motherboard. Note, however, that the location of the connectors is different on

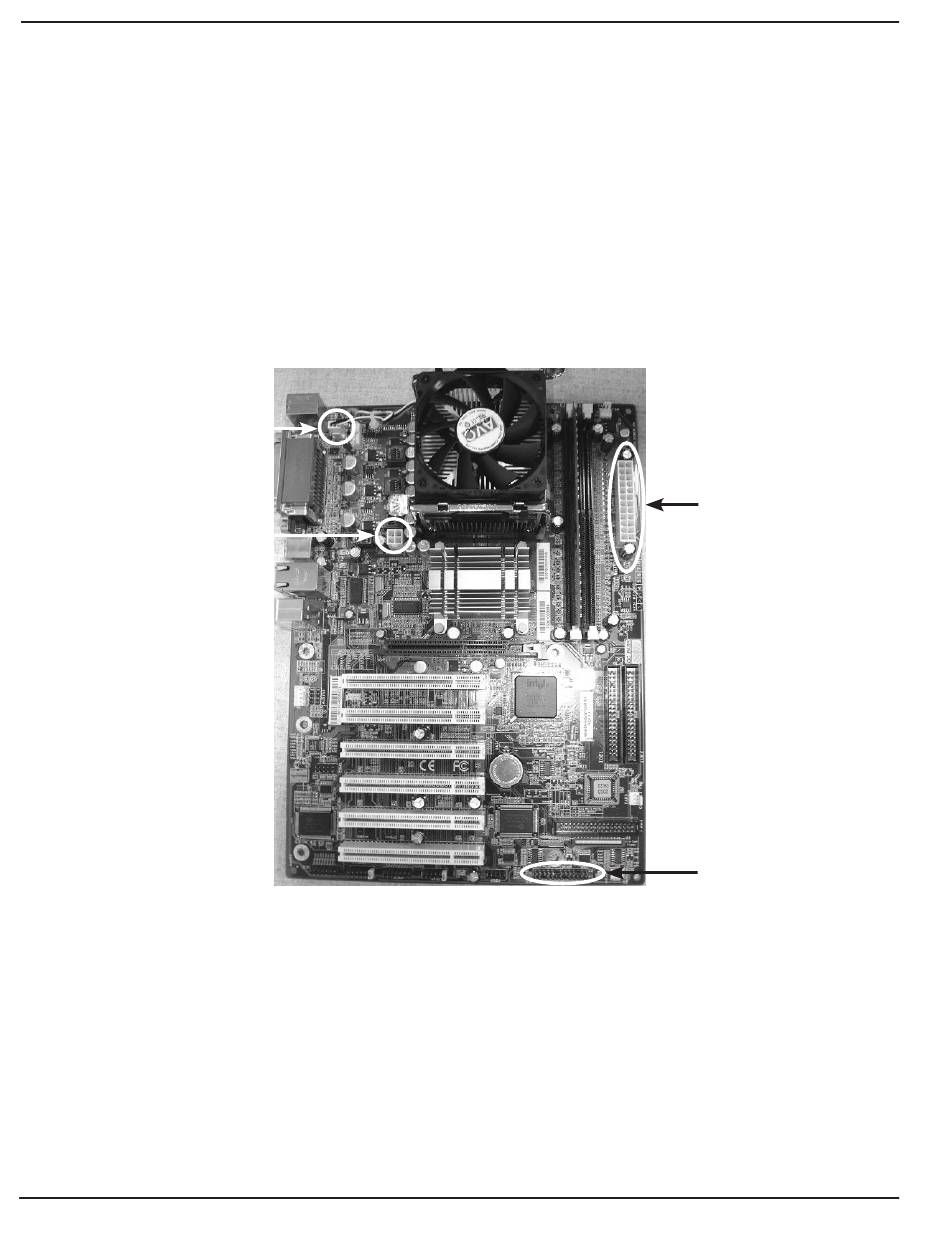

the new motherboard. Refer to the following illustration for details.
CPU fan cable
12 V Power cable
2 2
Motherboard with 24-pin DC power cable connector
DC power cable (24 pins)
PS_ON cable
